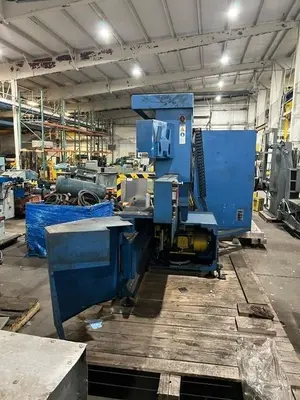

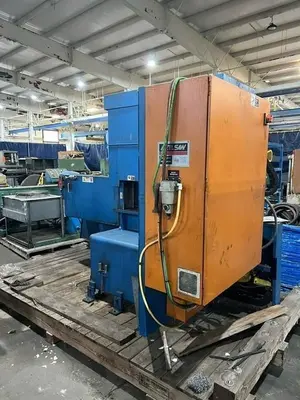

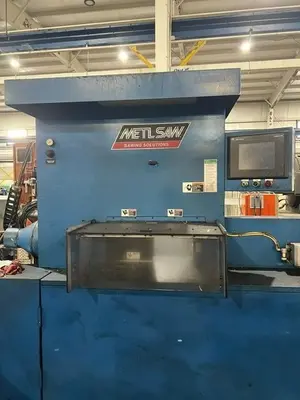

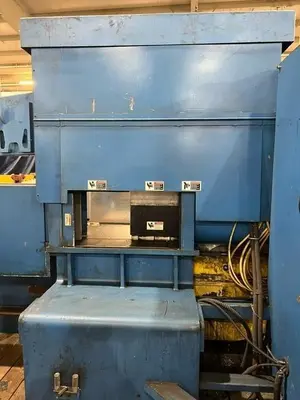

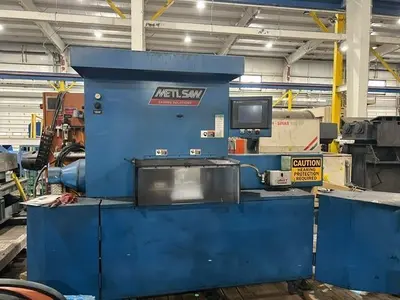

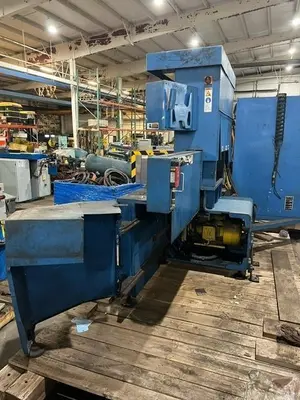

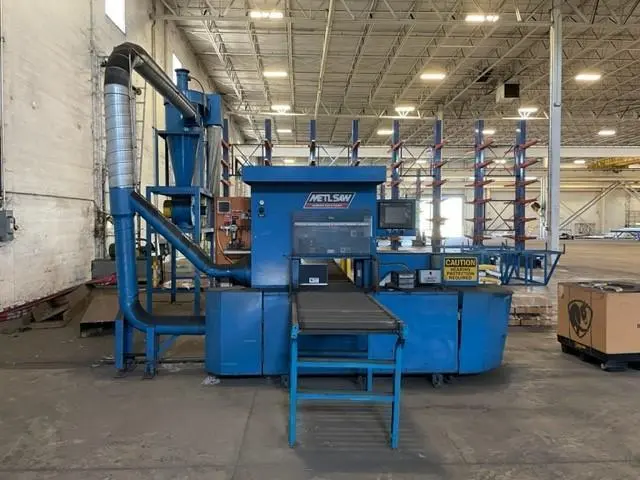

USED METLSAW 24" X 14" NON-FERROUS (ALUMINUM) PROGRAMMABLE CIRCULAR SAW MODEL CS2-T12, Year: 2012
Have one to sell?
ConditionUsed
1 available
2012 METLSAW CS2-T12, designed for cutting non-ferrous materials. Key features include 480V 3-phase 30 HP motor, max material width 24", thickness 8"-14", max sawblade diameter 28", cutting speeds up to 500 sq. in./min. Equipped with Allen Bradley controller.
Brand: Metlsaw

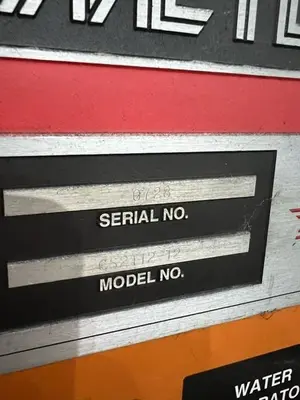

Model: CS2-T12
Maximum material width: 24"
Maximum material thickness: 8" - 14"
Programmable backgauge range: 12'
Backgauge speed: 0 - 500 IPM
Backgauge reverse speed: 0 - 800 IPM
Maximum sawblade diameter: 28"
Cutting speeds: Up to 500 sq. in./min. (aluminum)
Carriage feed rate: 0 - 500 IPM
Blade motor: 30 H.P.
Voltage: 480 volt 3 phase (80 amps)
Air requirements: 30 CFM @ 80 PSI
Features:
Cuts solids, extrusions, tubes or roundsAutomatic fast forward blade travelUniversal clamping for single or bundle cutting
Variable cutting speed according to type & thickness of material
Servo controlled carriage drive provides smooth, finely controlled cutting speeds
Variable cutting lengths allow very small pieces to be cut as efficiently as large pieces
CRT display shows actual position of backgauge at all times
Automatic proportional speed control (automatically adjusts carriage traverse speed to thickness of material)

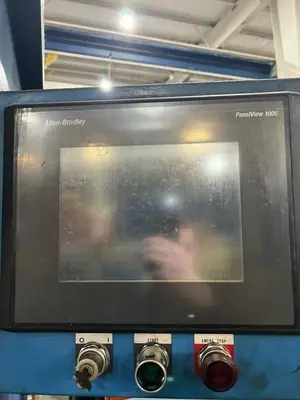

Allen Bradley Panelview 1000 programmable controller
Programmable precision backgauge automatically feeds to 12' (maximum)

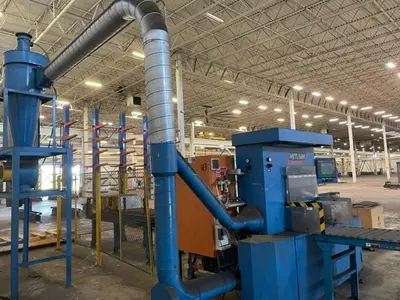

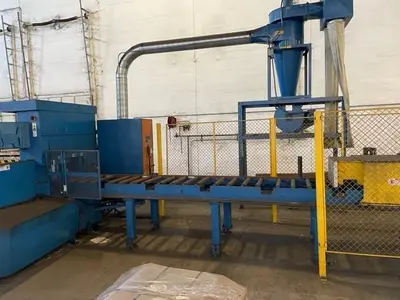

Chip collector system
