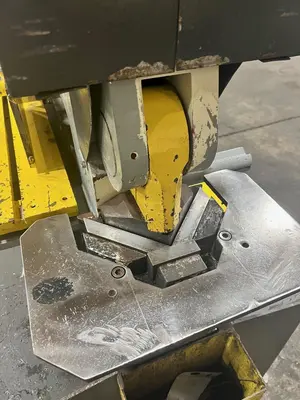

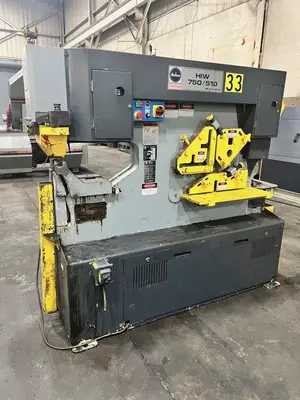

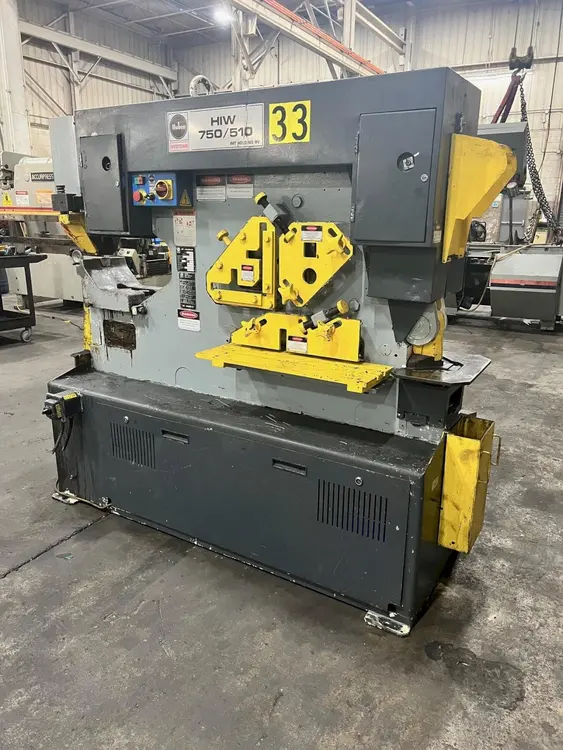

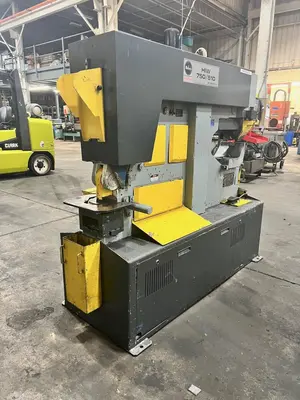

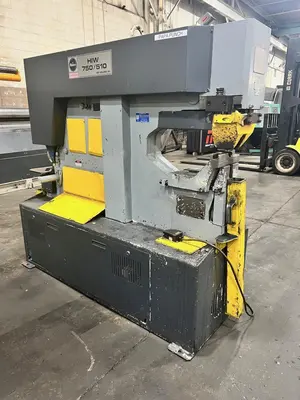

USED MUBEA 82 TON DUAL STATION HYDRAULIC IRONWORKER MODEL HIW 750/510, Year: 2004
Have one to sell?
ConditionUsed
1 available
2004 MUBEA HIW 750/510 Ironworker: 82-ton capacity, equipped with 5 workstations, dual cylinders, and electric foot pedals. Quick change punch and die holder, suitable for various angles and material sizes. 220/440V, 4,850 lbs.
Brand: Mubea
Model: HIW 750/510
Specifications:
Tonnage: 82 tons
Capacity: 1-1/4" thru 13/16"
Throat depth: 20"

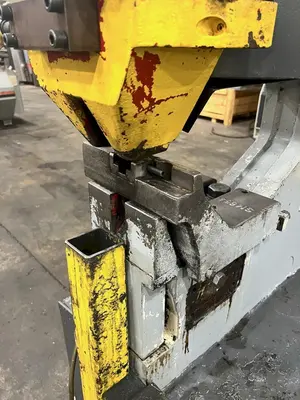

Angle shear @ 90 degrees: 6" x 6" x 1/2"
Angle shear @ 45 degrees: 3" x 3" x 5/16"
Plate shear: 18" x 5/8"
Round bar: 2"
Square bar: 1-3/4"
Triangle notcher: 2-3/4" x 15/32"
Voltage: 220 / 440 volt 3 phase (currently wired 220 volt)
Dimensions: 80" x 34" x 66"
Weight: 4,850 Lbs.

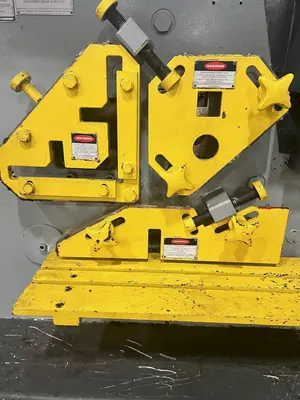

5 work stations
Dual cylinder machine for two operators
(2) portable electric foot pedals
Quick change punch and die holder
Stroke control at both ends of machine
