| Swing | 20" | 508 mm |
| Machining Length | 33" | 838.2 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.44" | 61.976 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Control | CNC (Siemens Sinumerik) | CNC (Siemens Sinumerik) |
| Dimensions | 105" x 63" x 70" | 105" x 63" x 70" |
| Weight | 5,850 Lbs. | 5,850 Lbs. |

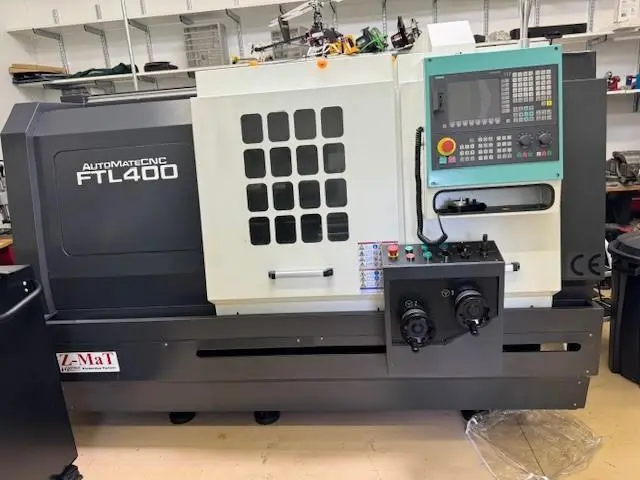

Brand: AutoMateCNC
Model: FTL 400T
Max swing over bed: 20"
Max swing over carriage: 6.5" over gang plate, 9" with gang plate removed
Max length of workpiece: 33" center to center
X axis travel: 11"
Z axis travel: 28"
X axis rapids: 750 IPM
Z axis rapids: 750 IPM
Max cutting speed: 315 IPM
Spindle motor: 10 H.P. Siemens servo motor
RPM range: 50 - 3,500
Spindle bore: 2.44"
Spindle nose taper: A2-6
Tailstock quill travel: 4"
Tailstock quill taper: MT4
Coolant capacity: 17.2 gallons
Voltage: transformer for 240 volt 3 phase
Dimensions: 105" x 63" x 70"
Weight: 5,850 Lbs.

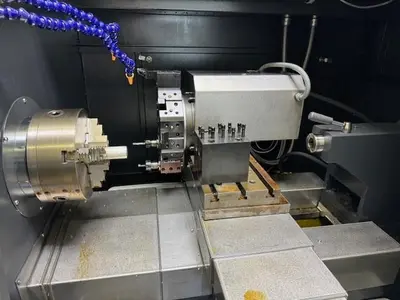

8 position turret
10" manual 3 jaw chuck

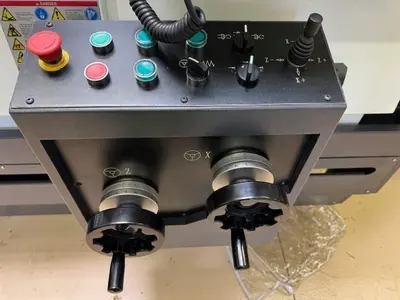

Manual MPG pendent

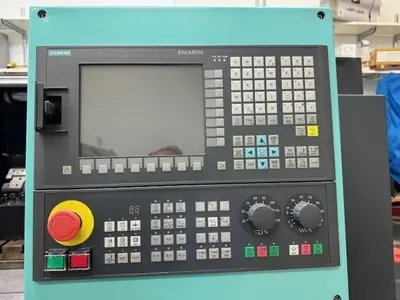

Siemens Sinumerik CNC control
Manual tailstock
Flood coolant

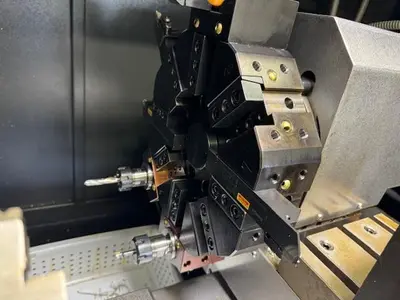

Live tooling set-up
