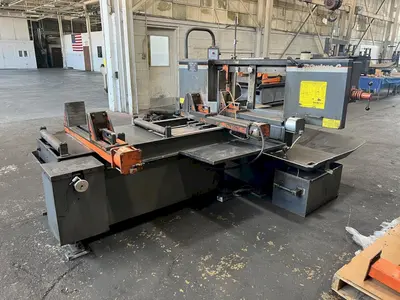

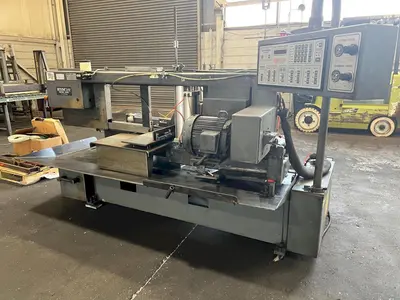

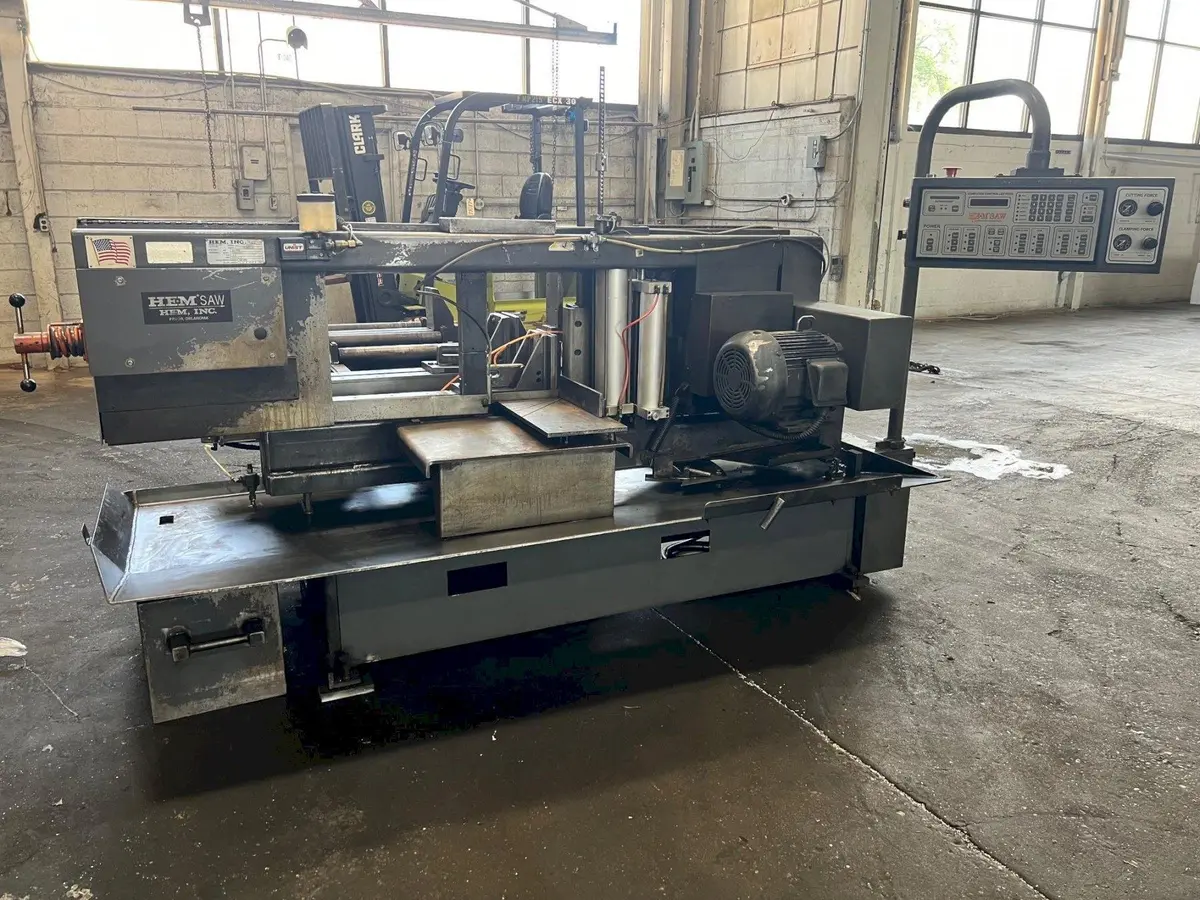

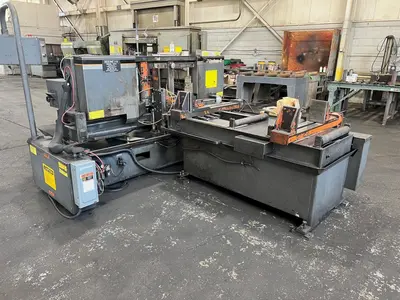

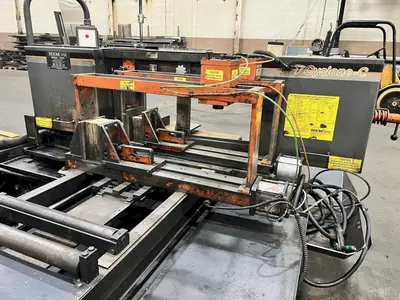

USED HEM 16" X 22" AUTOMATIC HORIZONTAL MITERING BANDSAW MODEL CYCLONE A-C, Year: 2007
Have one to sell?
ConditionUsed
1 available
HEM Cyclone A-C miter saw, 2007 model, boasts 16"Hx22"W capacity at 90°, 7.5 HP blade drive, variable speed, and 3rd holding vise. Features include overhead clamps, movable control panel, mist lubrication, and more. Wired for 440V, excellent for versatile cutting tasks.

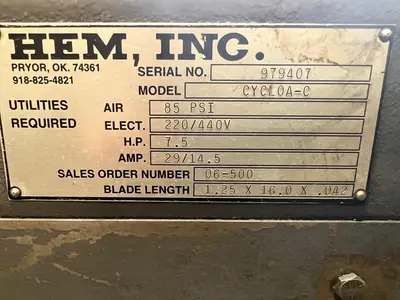

Brand: Hem
Model: Cyclone A-C
Specifications:
Capacity @ 90 degrees: 16" H x 22" W
Capacity @ 45 degrees: 16" H x 15" W
Blade size: 1-1/4" x 16' x .042"
Blade wheel size: 19-3/8"
Blade drive: 7.5 H.P.
Blade speed: 60 - 300 FPM infinitely variable
Feed rate: 0 - 3 IPS
Blade guides: Carbide
Shuttle feed: 24" (4x multi index)
Air requirements: 85 PSI
Voltage: 220 / 440 volt 3 phase (currently wired 440 volt)
Floorspace: 115" x 115" x 70"

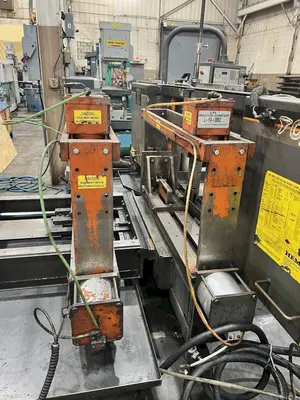

Overhead bundling clamps
Variable vise pressure

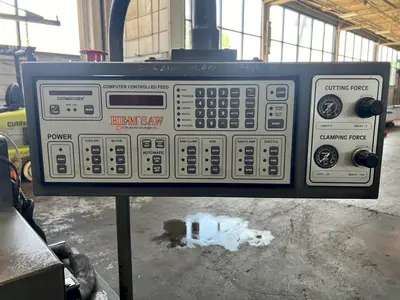

Movable control panel
Cut watcher system
Powered blade chip brush
Mist lubrication
3rd holding vise
Arm miter on a camlock
Manual blade tension
Semi-automatic & fully automatic modes

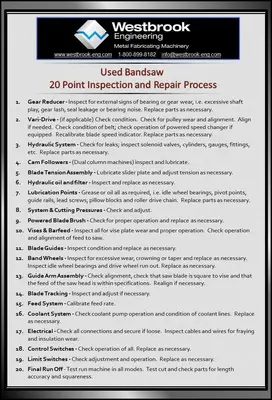

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
