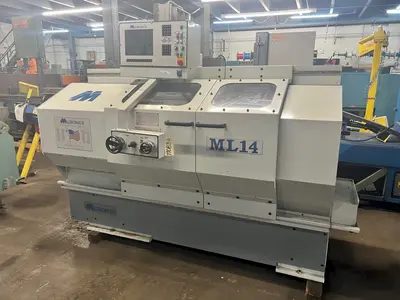

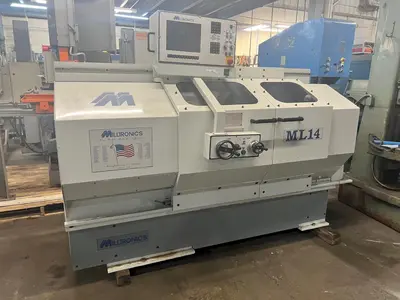

USED MILLTRONICS 14" X 40" ML-14 2-AXIS CNC LATHE, Year: 2002
Have one to sell?
ConditionUsed
1 available
Explore precision with the 2002 Milltronics ML14 CNC Lathe. Featuring a PC-based Centurion 6T CNC control, 40" bed, and high torque spindle drive. Includes a quick change tool post, 6" 3-jaw chuck, and more. Ideal for demanding machining tasks.
Brand: Milltronics
Model: ML-14
Specifications:
Bed length: 40"
Swing over bed: 14"
Spindle bore: 1.65"
Swing over cross slide: 7.8"
Travel (X axis) cross slide: 7"
Travel (Z axis) long slide: 30.5"
Center height: 7"
Center distance: 36"
Bed width: 9.8"
Maximum weight of part with chuck no center: 50 Lbs.
Maximum weight of part with chuck with center: 500 Lbs.
Maximum weight of part with center and steady rest: 1,000 Lbs.
Spindle nose type: Camlock D1-5
Spindle taper: MT#4
Spindle speed: 100 - 3,000 RPM
Tailstock quill travel: 5.5"
Tailstock quill diameter: 1.875"
Tailstock quill taper: MT$4
Rapid traverse: 300 IPM
Feedrate range: .1 - 100 IPM
Main motor: 7.5 H.P.
Voltage: 220 volt 3 phase
Floor space: 60" x 104"
Weight: 2,500 Lbs.

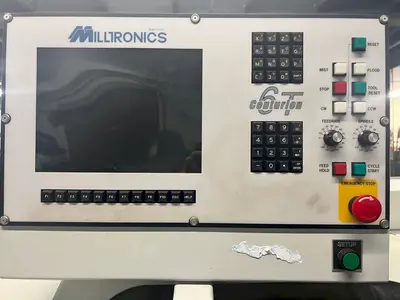

PC based Centurion 6T CNC control
10" LCD active matrix color display
Conversational plus G & M code programming with tool path graphics

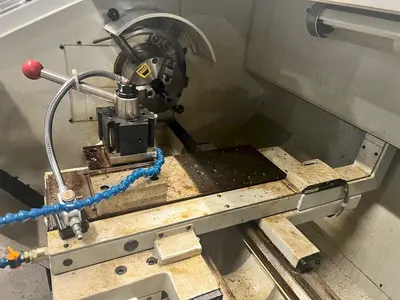

Dorian QITP 35 wedge type quick change tool post
Fully ground solid ways
Precision ground ball screws
Tail stock
Heavy duty metal enclosure with sliding doors
High torque vector spindle drive
6" 3-jaw chuck
Rigid tap cycle
LCD hour meter

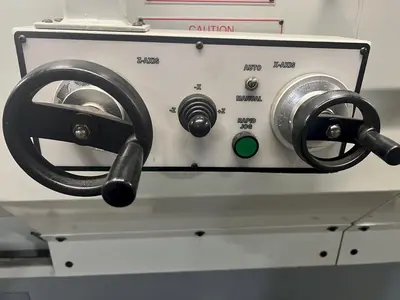

Dual electronic handwheel for teach, manual or automatic operation

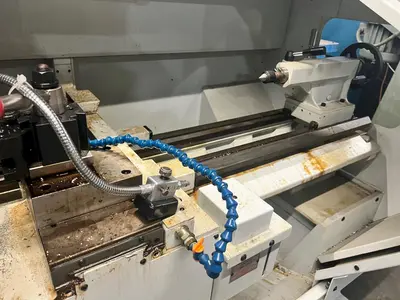

Flood coolant pump with nozzle
Work lamp
