USED ARKU FEED / STRAIGHTEN "ZIGZAG" COIL LINE, Year: 2010
Have one to sell?
ConditionUsed
1 available
2010 ARKU Coil Feed Line, including Laweco Coil Loading Station and other advanced components; handles 20" wide coils up to 13,200 lbs. Features hydraulic expansion, ultrasound loop control, and zigzag punch. Sold as-is.
Brand: Arku
Consisting Of:

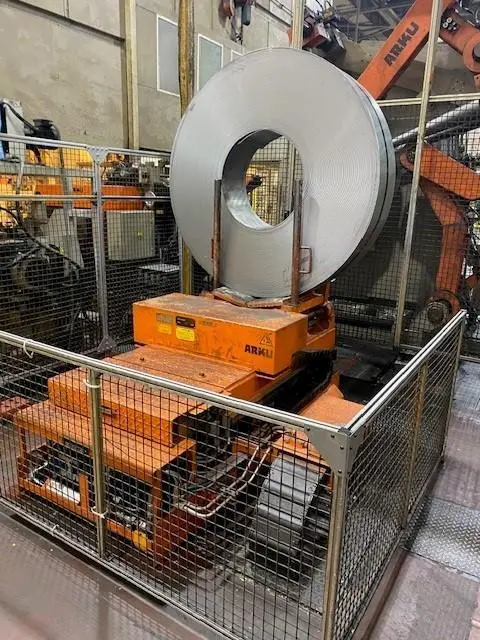

Laweco Coil Loading Station
Maximum Coil Width: 20”
Load Capacity: 13,200 lbs.

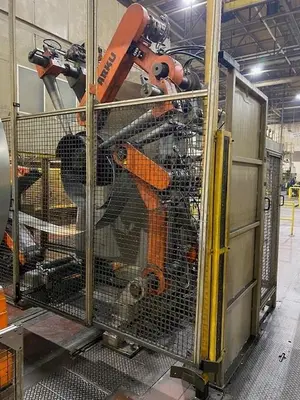

Arku Single-End Uncoiler
Expansion Range: 18.5” – 20.86”, (22.44”-24” with screw on segments)
Coild OD: 40” – 71.81”
Maximum Coil Width: 20”
Maximum Coil Weight: 13,200 lbs.
- Hydraulic Expansion
- Automatic Re-Expansion
- Front/Back Coil Guides
- Hydraulic Restrictor Arms (Both Top & Bottom) with Driver
- Strip Sensing (uses Ultrasound for Loop Control)
- Laser Measuring for Coil Diameter
- Roller Conveyor for Loop Guide
Arku Threading Unit
Maximum Coil Width: 20”
Arku Feeder / Straightener
Maximum Coil Width: 20”
Diameter of Straightening Rolls: 3.46”
Number of Straightening Rolls: 7 (Hardened & Ground)
Diameter of Exit Pinch Rolls: 6”
Zigzag Punch – Select 1 of 5-out patterns
Zigzag Side Stroke – Maximum 4.72” from Centerline of Coil
Arku Strip-End Feeder
Maximum Coil Width: 20”
Diameter of Feed Rolls: 6”
- Electronically Driven
- Upper Roll Opens Hydraulically
Machine sold “AS-IS, WHERE-IS”
Inspect Under Power in Mid-West Plant – Available June 2024
*Specifications Subject to Verification
