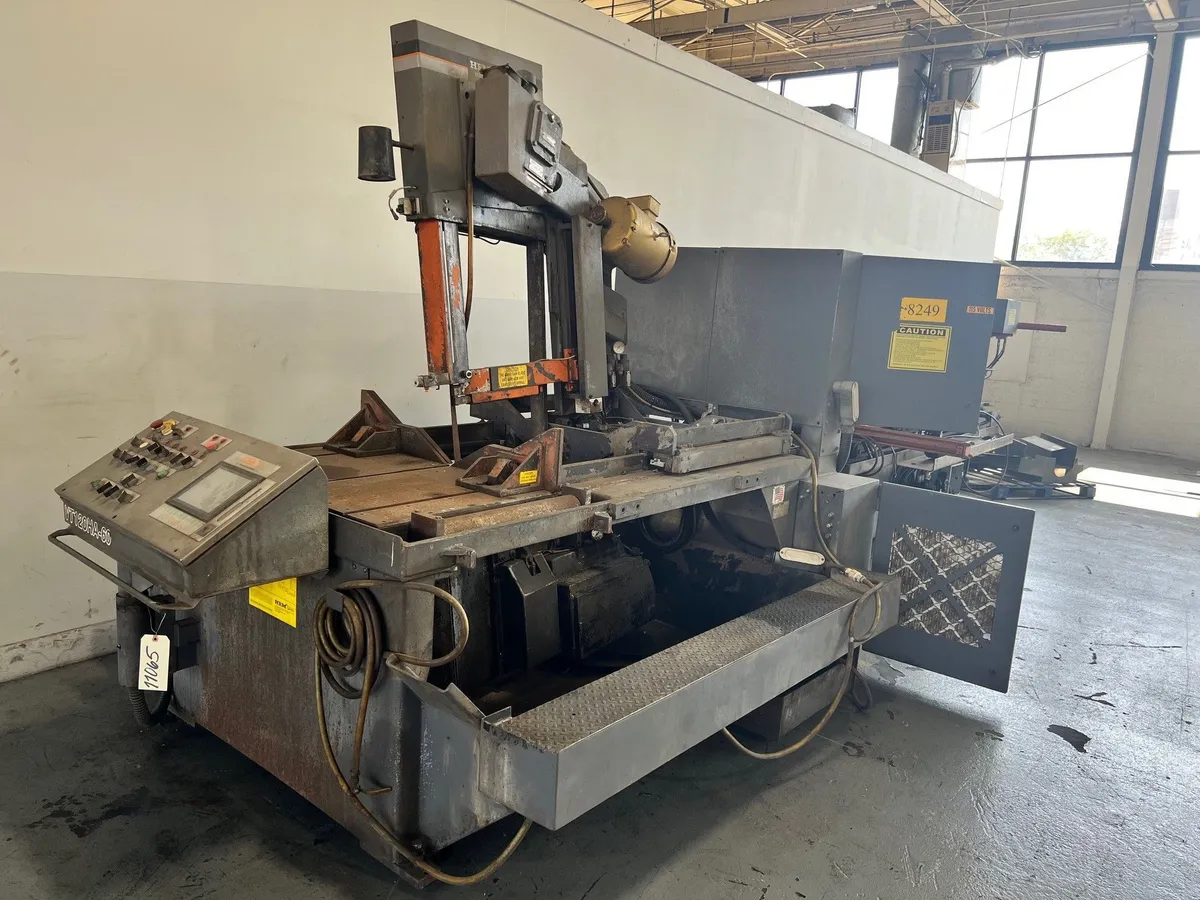

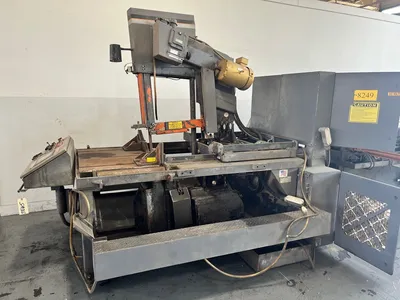

HEM 18" X 24" FULLY AUTOMATIC TILT FRAME VERTICAL BANDSAW MODEL VT120 HA-60 TS
Have one to sell?
$59,500.00 USD
$12,000.00 USD
ConditionUsed
1 available
HEM VT120 HA-60 TS Band Saw, 2012. Durable with a cutting capacity of 18" x 24" at 90°. Powered blade tension and head tilt. Features CNC control, hydraulic vises, and automatic barfeed. Ideal for precise, efficient operations.
Brand: Hem
Model: VT120 HA-60 TS
Specifications:
Capacity @ 90 degrees: 18" W x 24" T
Capacity @ 45 degrees left: 18" W x 16" T
Capacity @ 45 degrees right: 18" W x 14.75" T
Capacity @ 60 degrees left: 18" W x 10" T
Capacity @ 60 degrees right: 18" W x 9" T
Blade size: 1-1/4" x 16'6" x .042"
Blade speeds: 65 - 300 FPM (infinitely variable)
Blade guides: Carbide
Blade drive: 7.5 H.P.

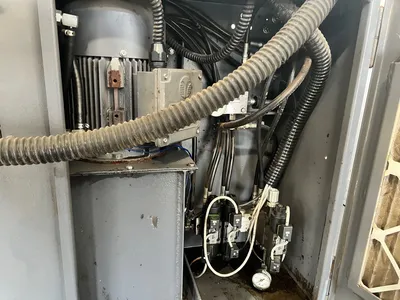

Hydraulic motor: 5 H.P.
Guide arm: Powered Automatic barfeed: 0 - 72"

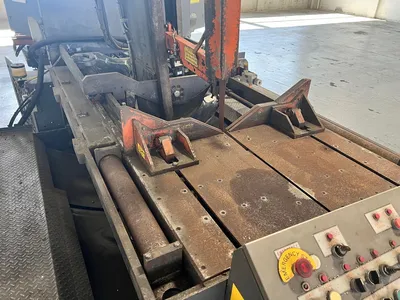

Vises: hydraulic full stroking
Coolant: Flood / mist
Blade tension: Powered
Head tilt: Powered with angle readout
Material feed: Right to Left
Voltage: 440 volt 3 phase
Swing away touch screen CNC control with job library, cut quantity, cut length, cut angle, blade speed, programmable miter, manual mode3 degree canted head

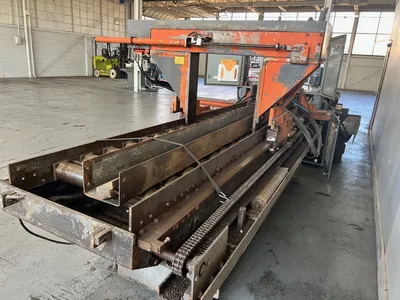

Powered (programmable) head tilt from 90 degrees to 60 degrees L & R 72" automatic barfeed with extra holding vise
Power lift on barfeed
Flood or mist coolant
Powered blade chip brush
Out of stock switch(2) table vises
Work light
Laser light
Powered chip conveyor
Machine sold AS-IS for parts only
