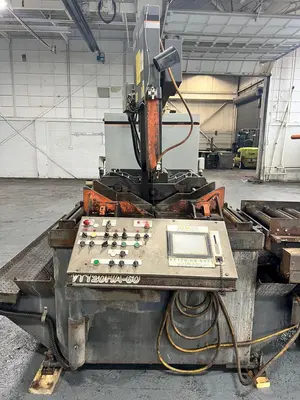

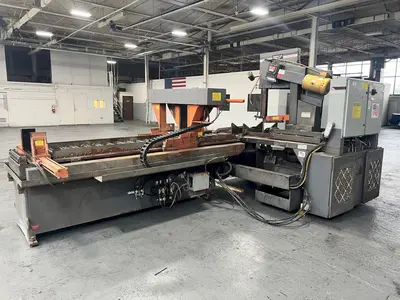

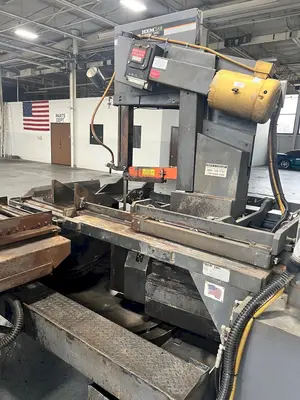

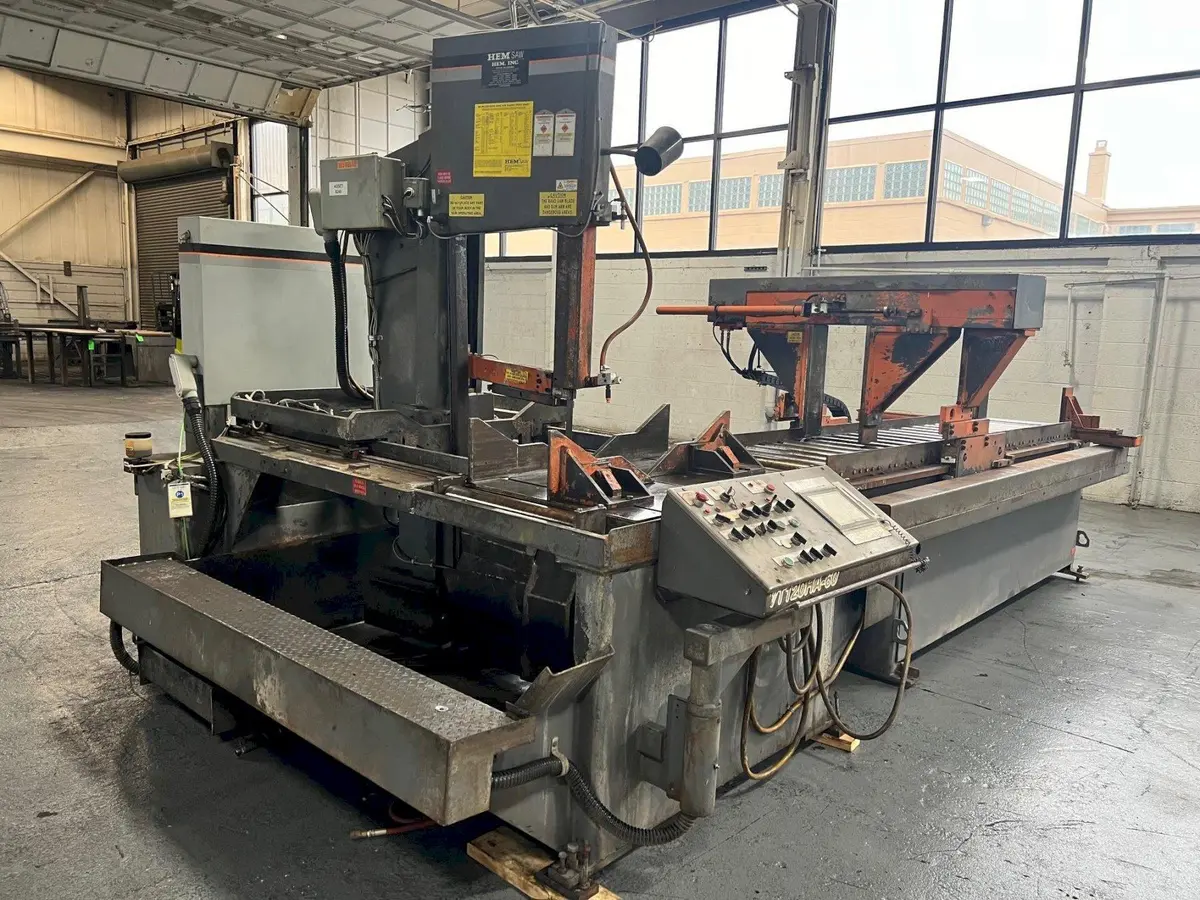

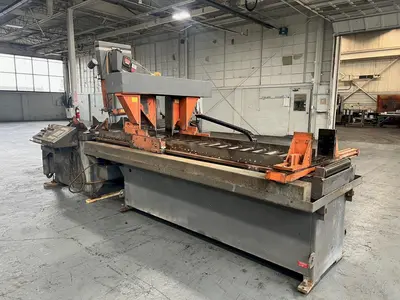

USED HEM 18" X 24" FULLY AUTOMATIC TILT FRAME VERTICAL BANDSAW MODEL VT120 HA-60 TS, Year: 2012
Have one to sell?
ConditionUsed
1 available
HEM VT120 HA-60 TS vertical band saw from 2012, used. Capable of 18" W x 24" T at 90 degrees. Infinitely variable blade speeds (65-300 FPM), CNC touch screen, automatic barfeed, and powered blade tension. 3-phase, 440V power.
Brand: Hem
Model: VT120 HA-60 TS
Specifications:
Capacity @ 90 degrees: 18" W x 24" T
Capacity @ 45 degrees left: 18" W x 16" T
Capacity @ 45 degrees right: 18" W x 14.75" T
Capacity @ 60 degrees left: 18" W x 10" T
Capacity @ 60 degrees right: 18" W x 9" T
Blade size: 1-1/4" x 16'6" x .042"
Blade speeds: 65 - 300 FPM (infinitely variable)
Blade guides: Carbide
Blade drive: 7.5 H.P.
Hydraulic motor: 5 H.P.
Guide arm: Powered
Automatic barfeed: 0 - 72"
Vises: hydraulic full stroking
Coolant: Flood / mist
Blade tension: Powered
Head tilt: Powered with angle readout
Material feed: Right to Left
Voltage: 440 volt 3 phase

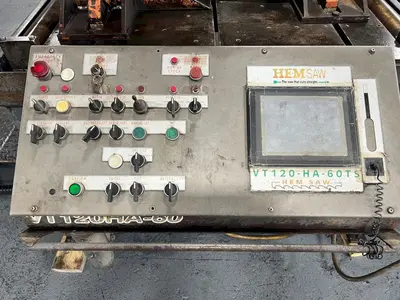

Swing away touch screen CNC control with job library, cut quantity, cut length, cut angle, blade speed, programmable miter, manual mode
3 degree canted head
Powered (programmable) head tilt from 90 degrees to 60 degrees L & R

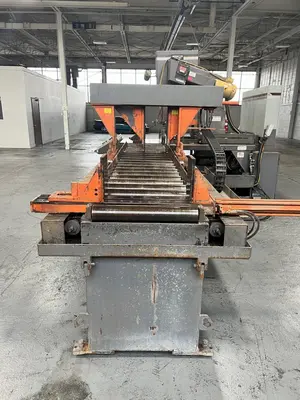

72" automatic barfeed with extra holding vise
Power lift on barfeed
Flood or mist coolant
Powered blade chip brush
Out of stock switch

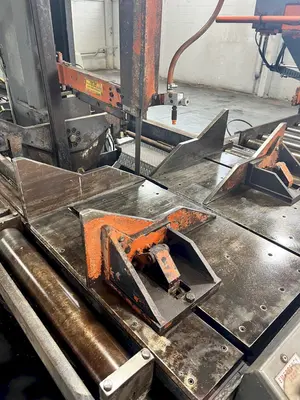

(2) table vises
Work light
Laser light
Powered chip conveyor

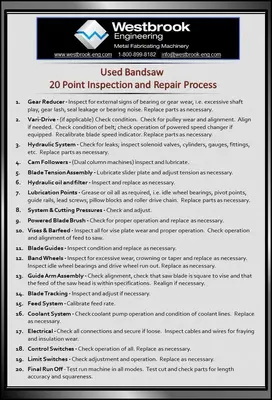

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
