USED FUKUI 1,000 TON MECHANICAL SINGLE CRANK COLD FORGING PRESS, Year: 1991
Have one to sell?
ConditionUsed
1 available

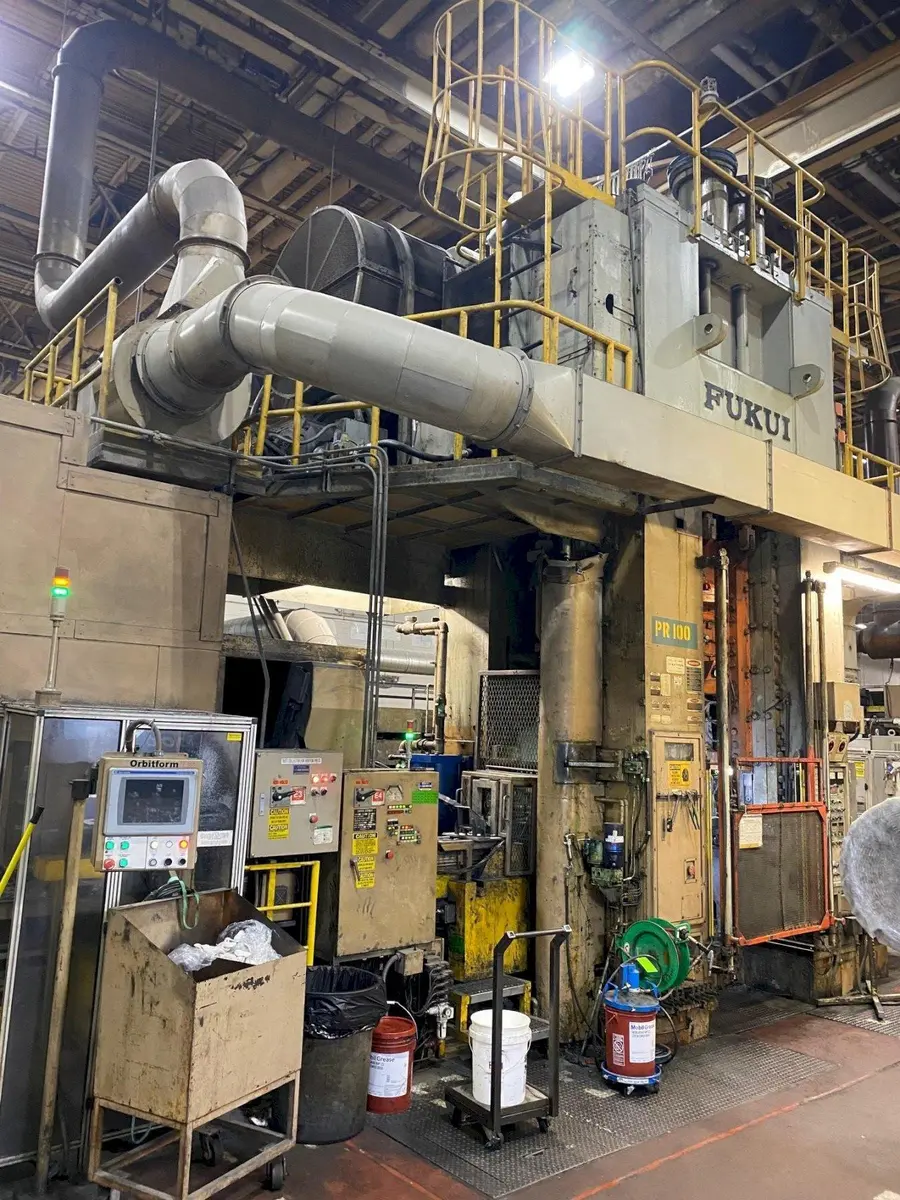

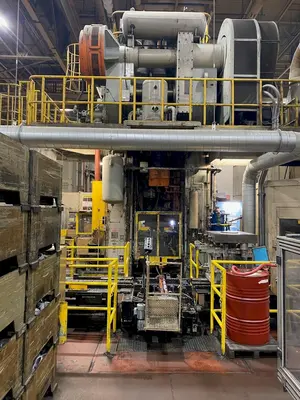

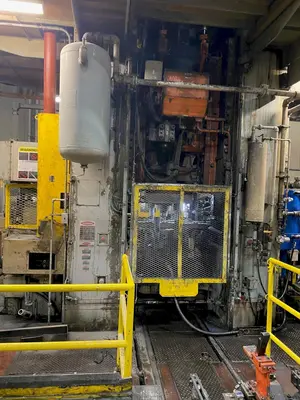

FUKUI MSF 1000 (1991) used single-crank straight side press. 1,000-ton capacity, 11.18" stroke, adjustable slide, air clutch/brake, hydraulic overload protection, and more.
Brand: Fukui
Model: MSF 1000
Specifications:
Tonnage: 1,000
Stroke length: 11.18" (300mm)
Shut height: 33.46" (850mm)
Slide adjustment: 2: (50mm)
Bed size: 25.4" (700mm) x 31.49" (800mm)
Bolster thickness: 10.62" (270mm)
Ram area: 25.4" (700mm) x 31.49" (800mm)
Strokes per minute: 30 - 32 (infinitely variable)
Main motor: 200 H.P. (150KW)
Air clutch
Air brake
Air counterbalance
Hydraulic overload protection
Pneumatic ram knockout
Mechanical bed knockout
Pneumatic upper die clamp
Hydraulic lower die clamp
Recirculating lube system
Portable palm station
Exit conveyor
Sold As-Is Where-Is
Inspect under power in mid-west plant
Available June 2024
Specifications subject to verification
