USED CINCINNATI 1/4" X 10' HYDRAULIC SHEAR WITH CNC FRONT AND REAR GAUGING MODEL 250HS 10, Year: 1999
Have one to sell?
$27,500.00 USD
$22,500.00 USD
ConditionUsed
1 available

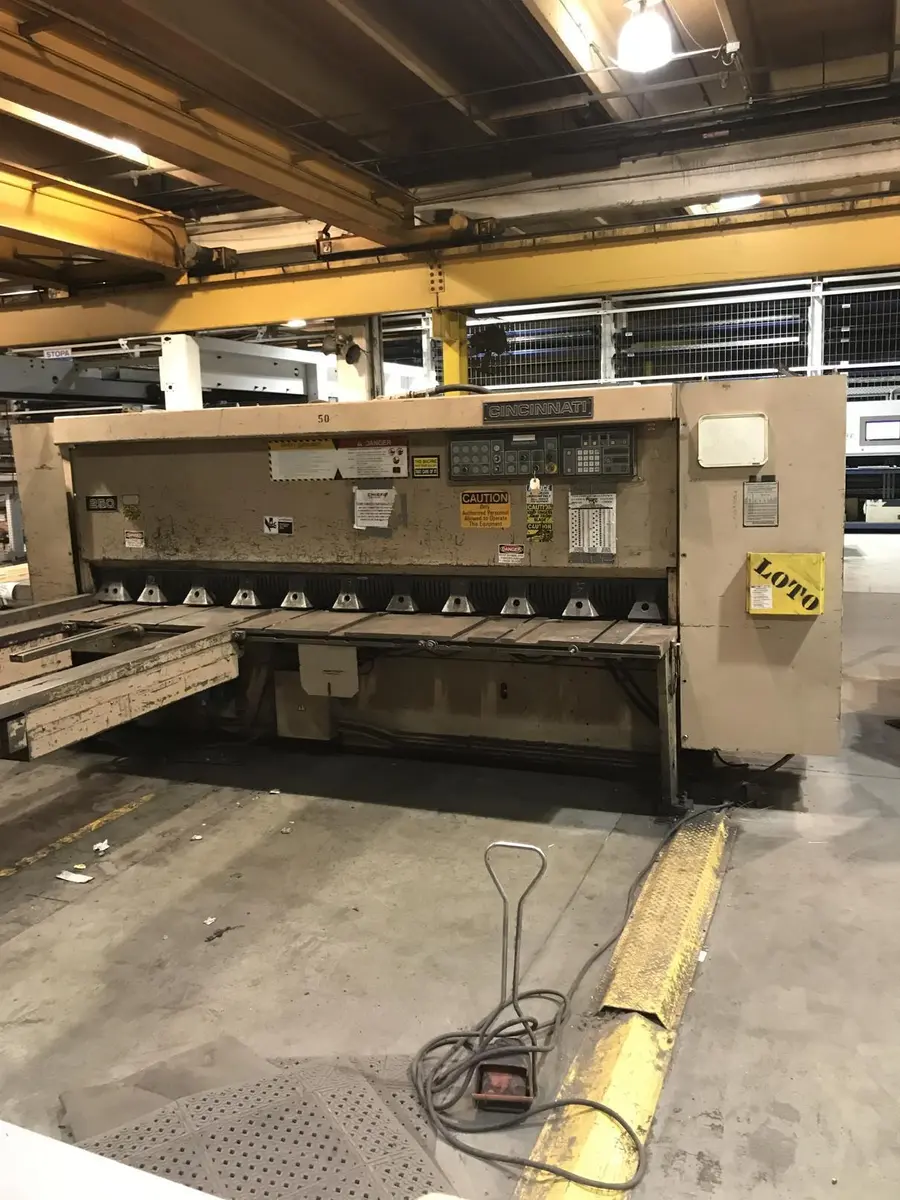

CINCINNATI INC 250HS 10 Power Squaring Shear, 1999 model, used. Specs: 26 gauge - 1/4" capacity, 10'2" cutting length, 25 HP motor, 440V. Equipped with CNC power arms, adjustable stroke control, oil cooler, and portable foot pedal.
Brand: Cincinnati
Model: 250HS 10
Specifications:
Capacity: 26 gauge - 1/4"
Cutting length: 10'2"
Max rake: 3/8" per foot
Hold down force: 8.5 tons
Number of hold downs: 12
Height under guard: 1/2"
Back gauge range: 48"
Knife size: 1" x 3" x 126"
Main motor: 25 H.P.
Voltage: 220 / 440 volt 3 phase (currently wired 440 volt)
Dimensions: 14'5" x 8'5" x 7'5"
Weight: 16,000 Lbs.

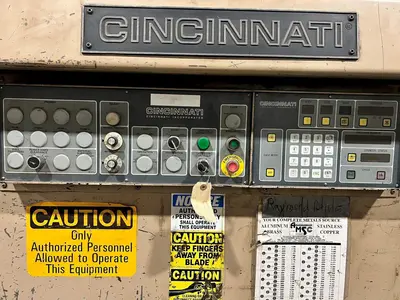

Multi axis gauge control
48" front operated programmable power back gauge
10' CNC power squaring arm left side
6' CNC power front arm

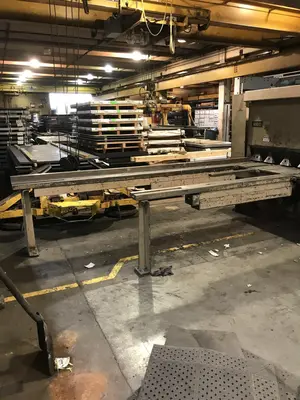

24" material support arm
Power blade gap adjustment
Adjustable stroke control
Inch, single, continuous cut modes
Portable foot pedal
Oil cooler
