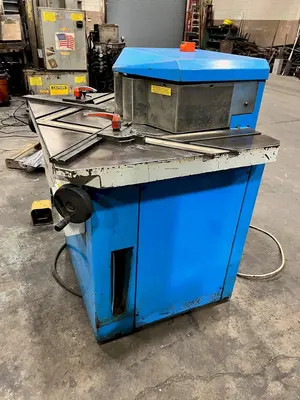

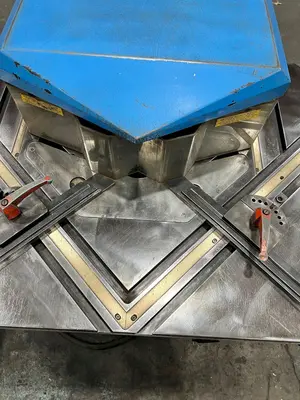

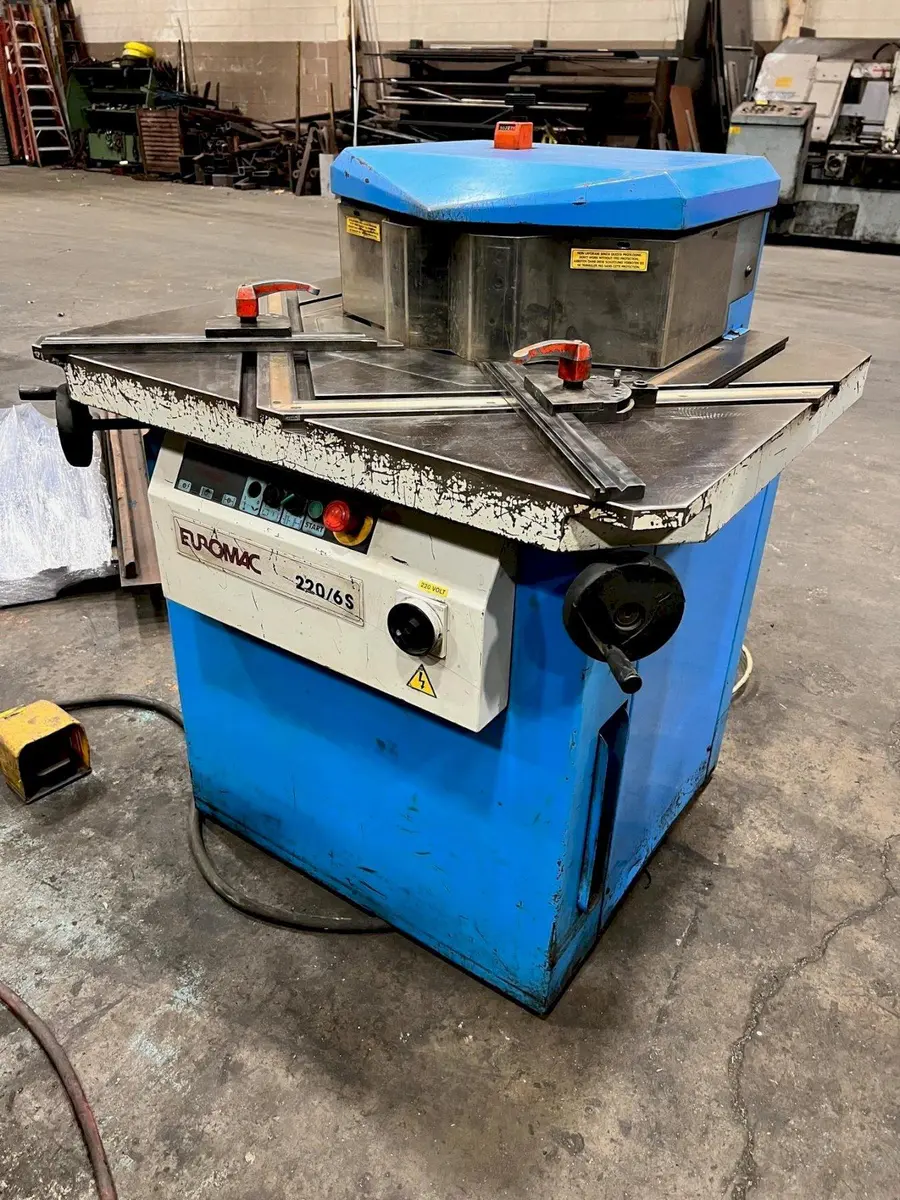

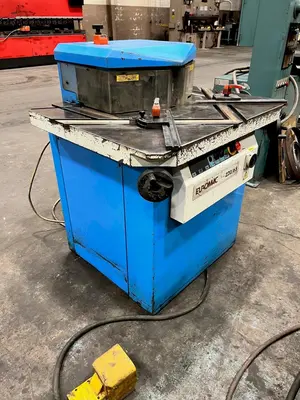

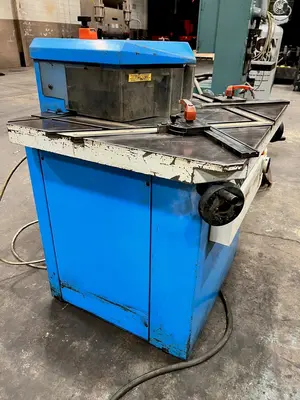

USED EUROMAC VARIABLE ANGLE 8" x 8" x 1/4" HYDRAULIC SHEET METAL NOTCHER, Year: 1995

Brand: Euromac
Model: 200/6S

Specifications:
Variable angle:30° to 140°
Blade length:8.6”
Cutting capacity in mild steel 60° blades (negative blades):0.253
30° blades (positive blades):0.136
Cutting capacity in stainless steel 60° blades:0.196”
30° blades:0.118”
Strokes/minute at 8.6” cutting length: 50
Work surface area:39.0” x 31.2”
Table height:36.75”
Overall machine dimensions:40.2” x 33.5” x 48.8”
Approximate weight:2,006 lbs.
Motor:5.5 HP
Electrics:3 phase  (220 or 440 volt) currently 220 volt
Oil tank reservoir:16 gallons

Features and Benefits
Hydraulically powered
Ability to jog cutting head
Ability to reverse cutting head at any point in stroke
Monoblock construction
Meehanite steel casting provides absolute rigidity
Variable angle capability
Allows operator to change angle of cut from 30° to 140° in seconds
Automatic blade gap adjustment
Eliminates need for time consuming blade clearance settings
Prevents material roll over and jamming
Ensures a burr-free, high quality cut regardless of material thickness
Hydraulic clamping
Sheet holding clamps
Eliminates any torque-related movement during cutting
Two protractors with heavy steel handles and pin-locking pre-set 15° intervals
Enables quick set-up of angles other than 90°
Engraved brass measuring scales
Precise, heavy-duty scales will still be readable after years of constant use
Vertical stroke adjustment
Enables stroke travel of blades to be shortened to increase productivity
