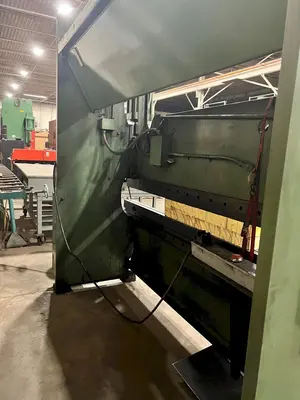

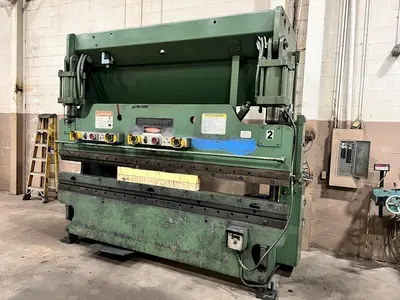

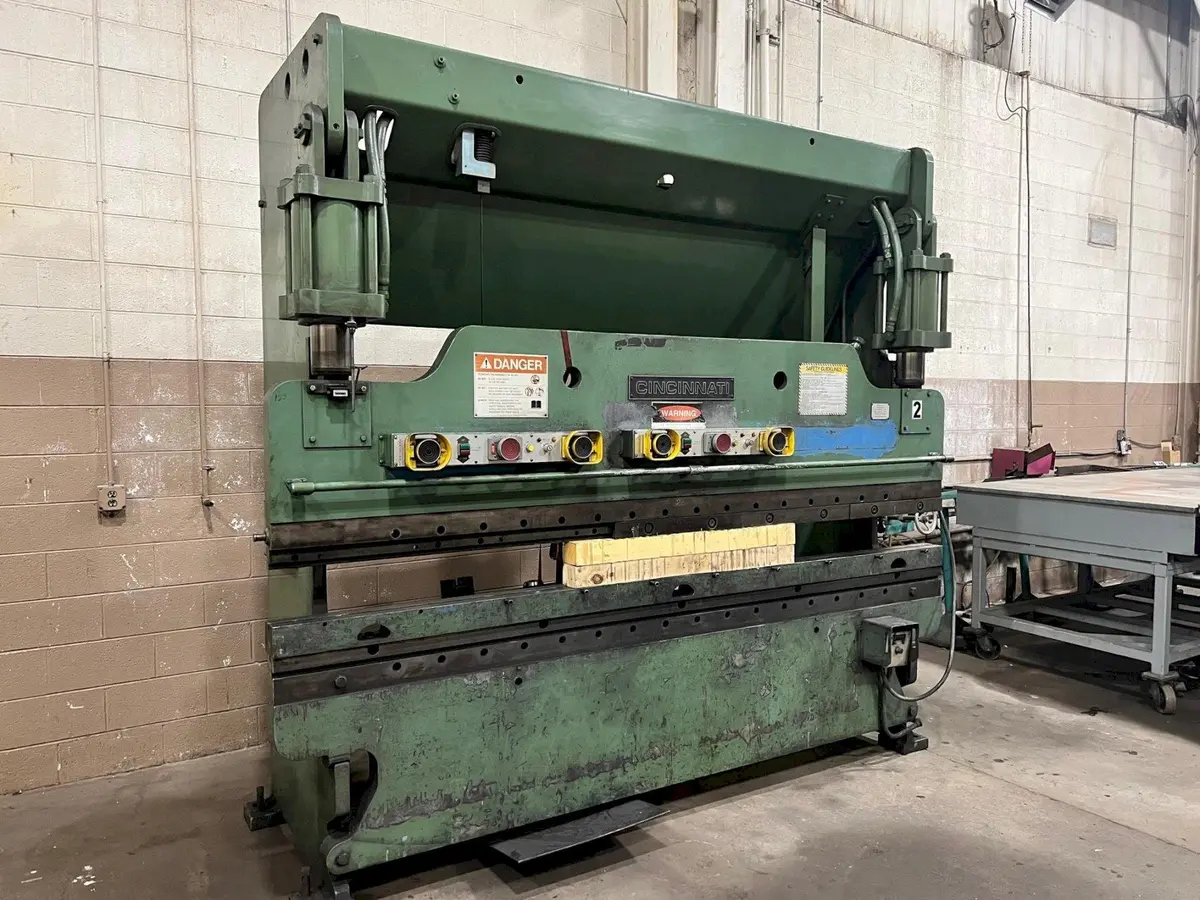

USED CINCINNATI 90 TON X 10' HYDRAULIC PRESS BRAKE MODEL 90CB X 8, Year: 1983
Have one to sell?
ConditionUsed
1 available
1983 CINCINNATI INC 90CB X 8 press brake, 90-ton capacity, 10' bed, 8' 6" between housings. Features fast setup, adjustable ram speeds, full-length die holder, and tonnage control. Wired for 440V, 15 HP motor. Ideal for heavy-duty tasks.
Brand: Cincinnati

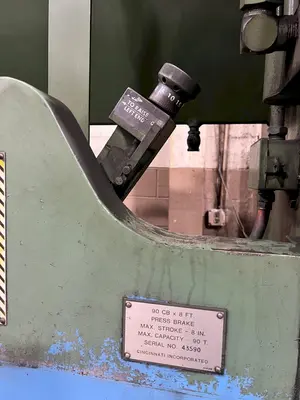

Model: 90CB x 8
Specifications:
Tonnage: 90 tons
Length of bed: 10'
Distance between housings: 8' 6-1/4"
Stroke length: 8"
Open height: 15"
Closed height: 7"
Throat: 7"
Ram high speed: 150 IPM
Ram medium speed: 71 IPM
Ram low speed: 21 IPM
Ram return speed: 136 IPM
Main motor: 15 H.P.
Voltage: 220 / 440 volt 3 phase (currently wired 440 volt)
Dimensions: 120" x 40" x 117"
Weight: 14,500 Lbs.

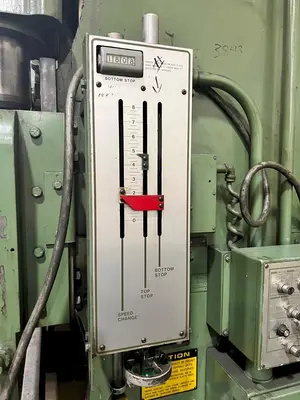

Fast set up* ram stroke control
Inch, single, auto stroke settings
Full length die holder
Sectionalized ram clamps
Power ram tilt
Tonnage control
Low, medium, high ram speeds
Palm buttons mounted to ram
