72" x .200" x 50,000# Voss cut to length line, Stock# 10962
Have one to sell?
ConditionUsed
1 available

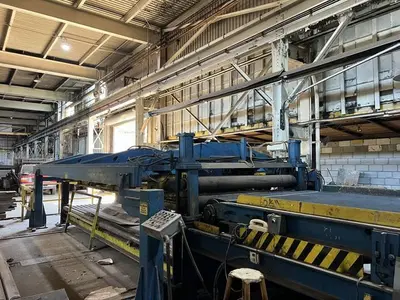

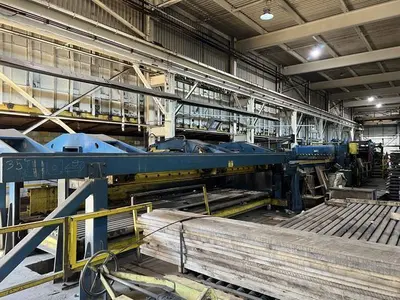

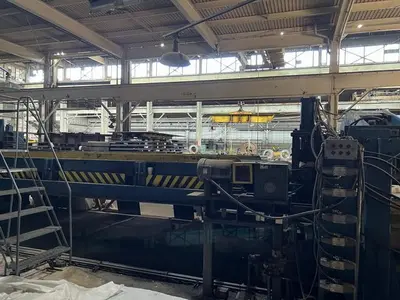

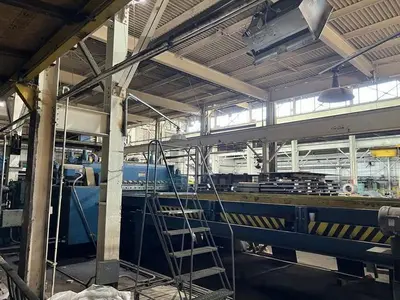

VOSS Cut To Length Line, used, max coil width 72", weight 50,000#, thickness .047"-.200", speed 50-150FPM. Includes uncoiler, edge guides, leveler, motorized tilt, high-speed shear, and stacker. Durable and efficient for high-capacity needs.
Brand: Voss
Specifications:
Max Coil Width: 72"
Max Coil Weight: 50,000#
Thickness Range: .047"-.200"
Line Speed: 50-150FPM
Coil ID Range: 20"-28"
Max Coil OD: 72"
Max Stack Length: 252"
Complete with the Following Components:

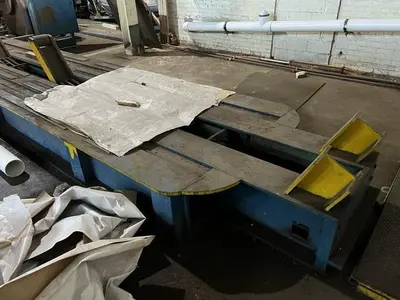

Entry Coil Staging Ramp
Coil Lift

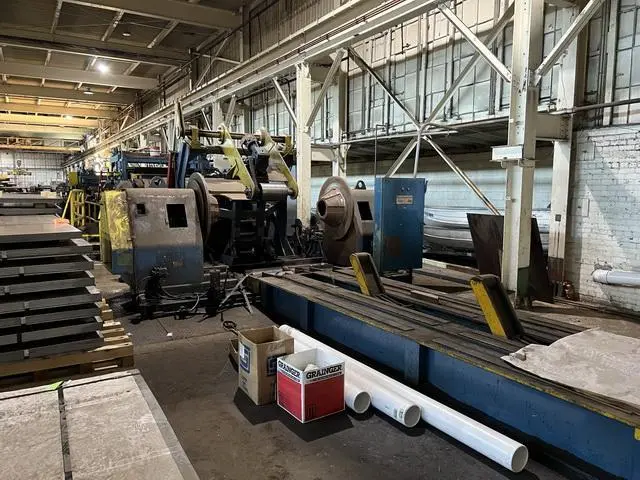

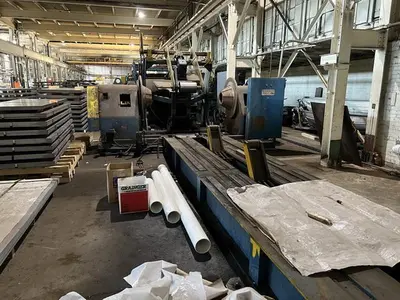

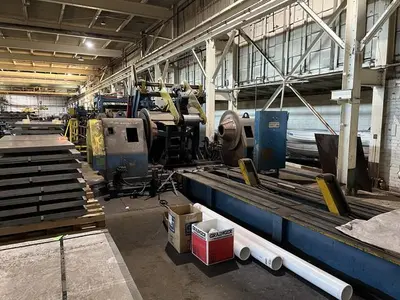

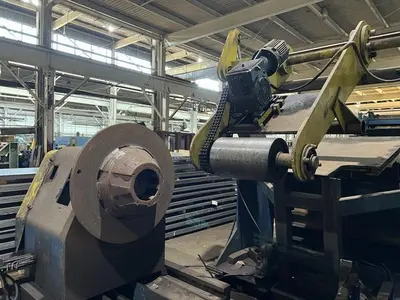

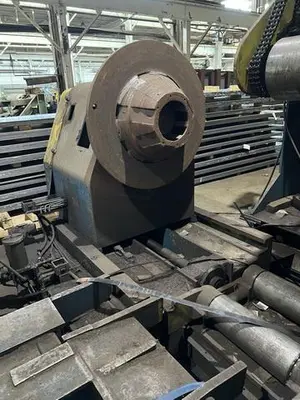

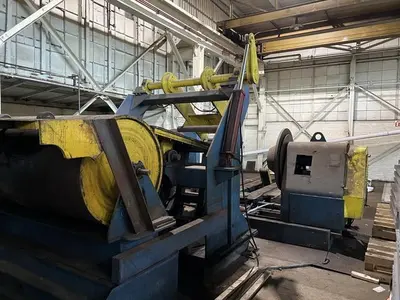

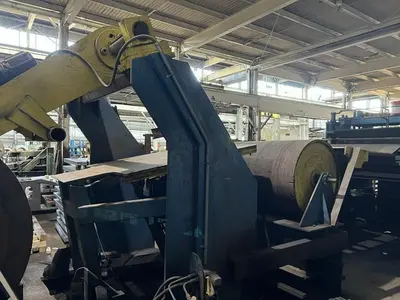

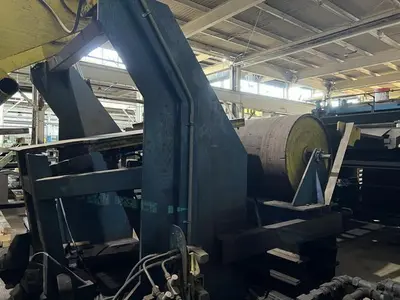

Double Cone Uncoiler
Sliding Bases

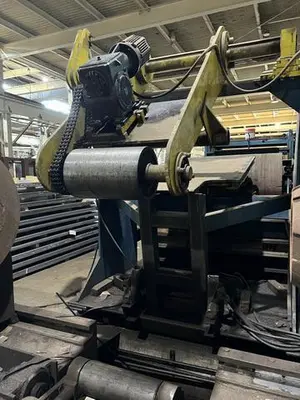

Peeler and Hold Down Roll
Powered Hold Down Roll
Pass Line Roll
Edge Guides

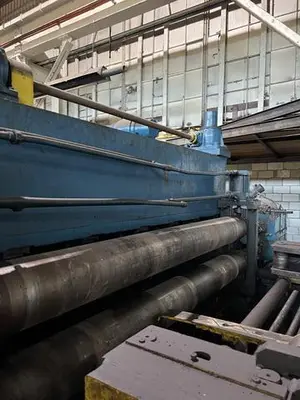

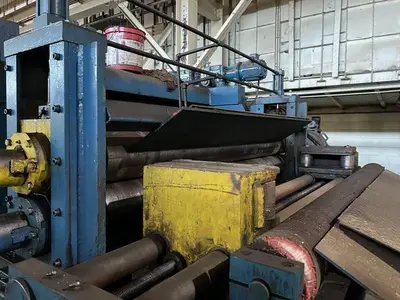

Pinch Rolls

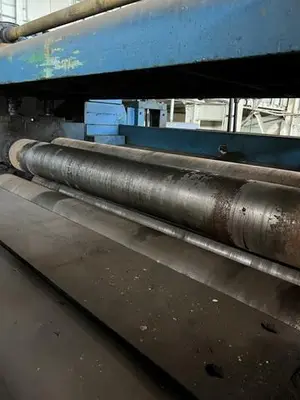

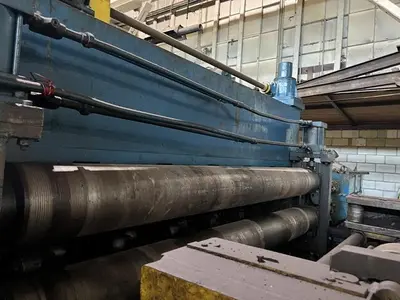

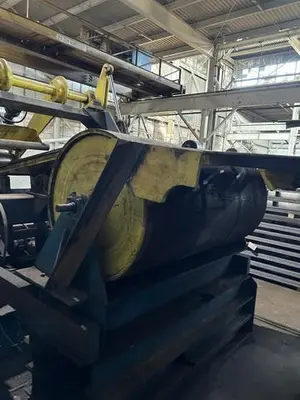

Flattener
Five Powered Rolls

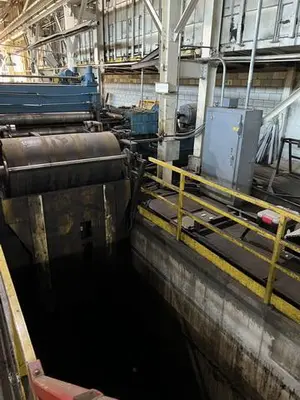

Pit
Pass Line Roll
Edge Guides
Pinch Rolls

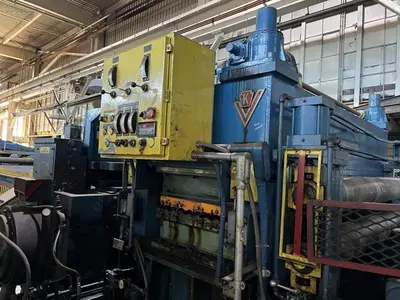

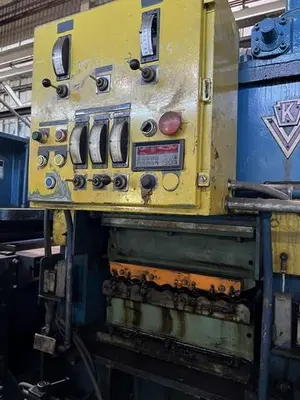

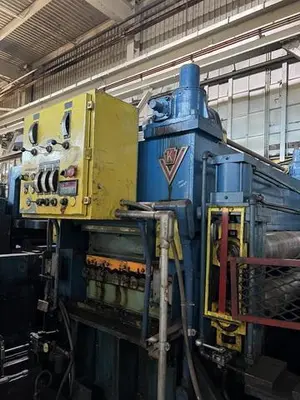

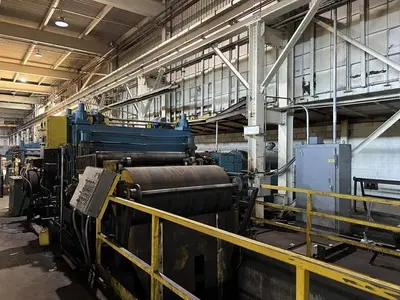

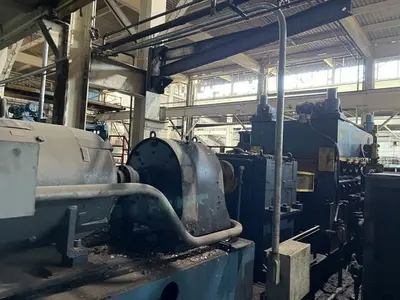

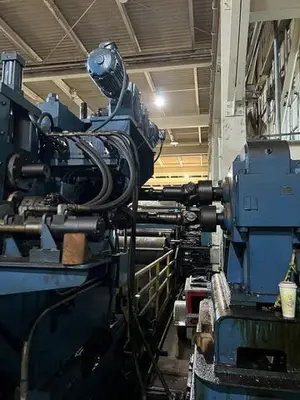

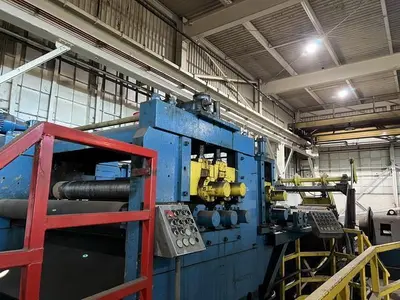

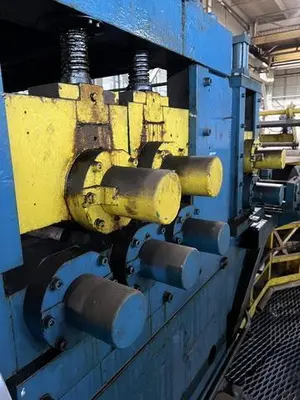

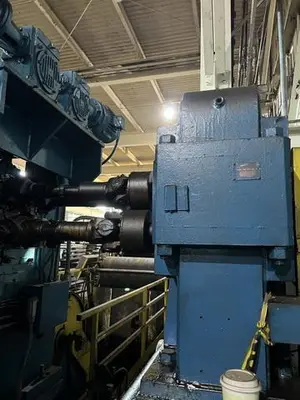

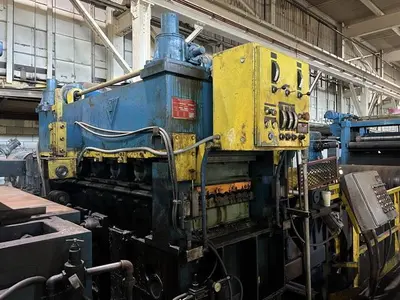

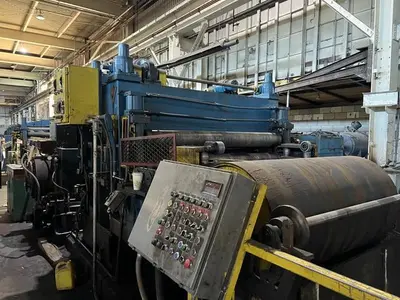

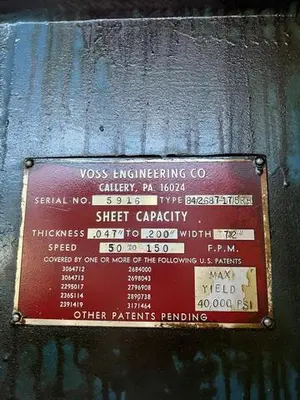

Voss Leveler
Model: 84/2.687-17/5RH
4HI Leveler
17 Rolls
Roll Diameter: 2.687"
Roll Face: 84"
5 Flights of Back Ups
3 Flights of Back Ups with Independent Adjustments
Motorized Tilt

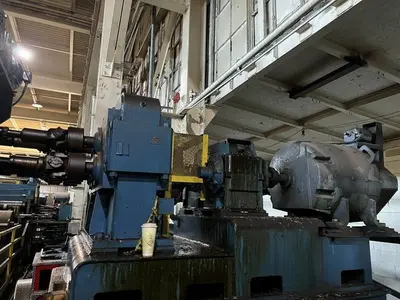

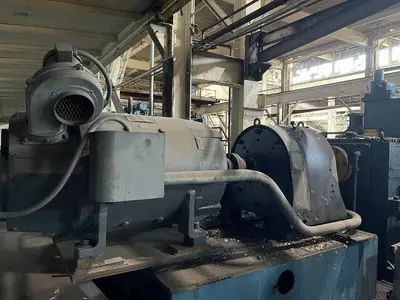

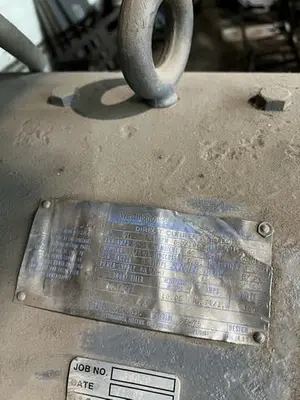

75HP DC Motor
Encoder

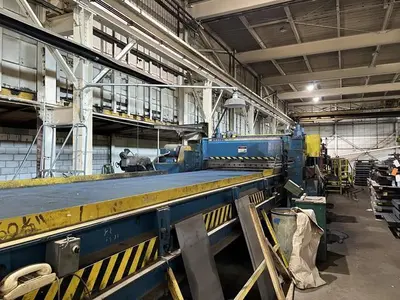

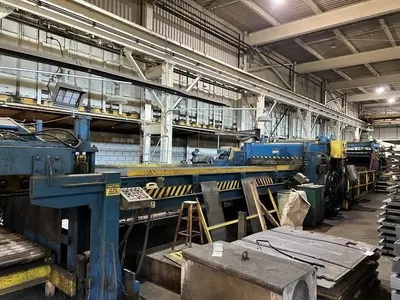

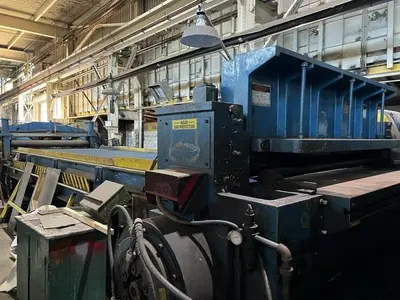

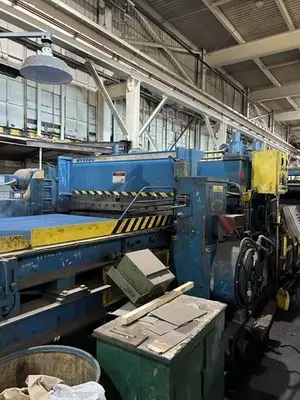

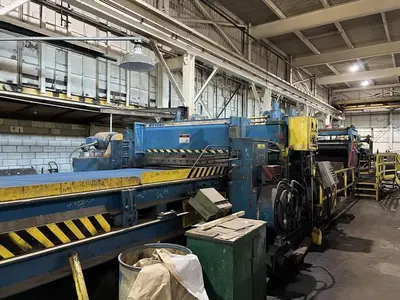

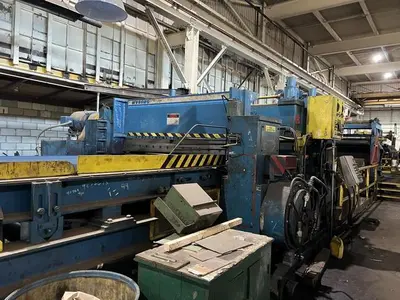

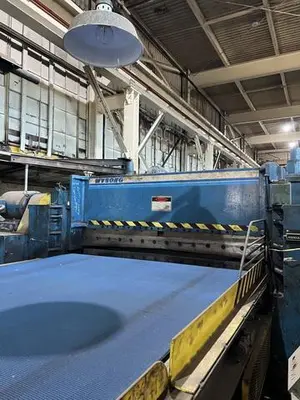

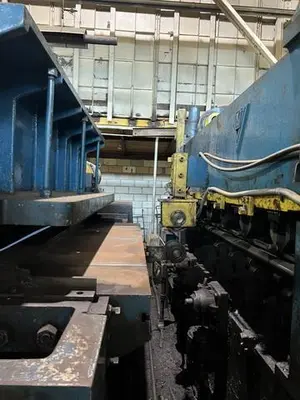

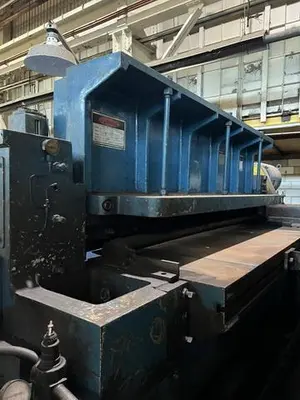

Wysong High Speed Shear
Bow Tie Blade
Conveyor

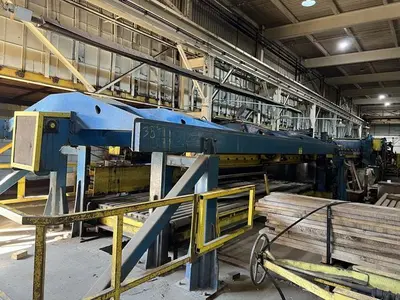

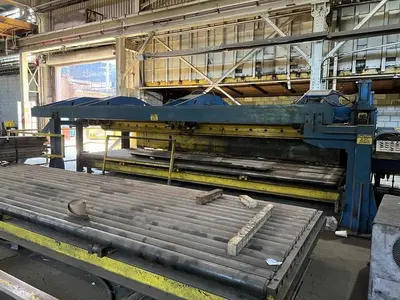

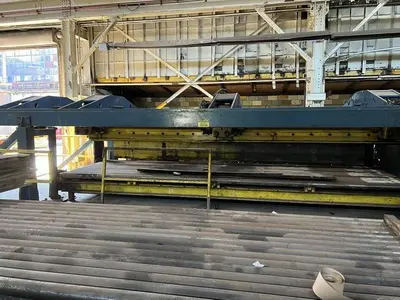

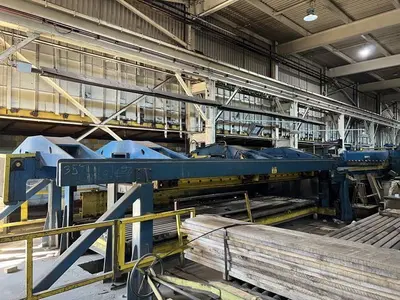

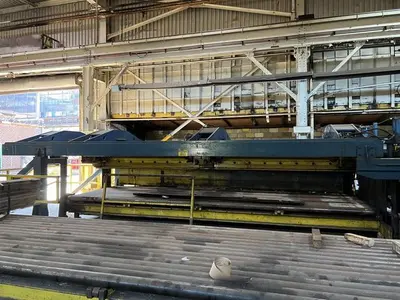

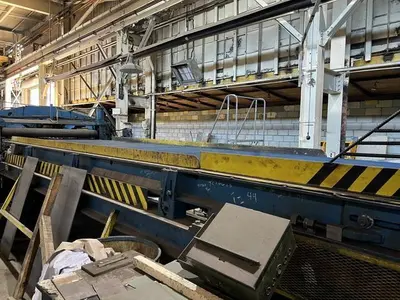

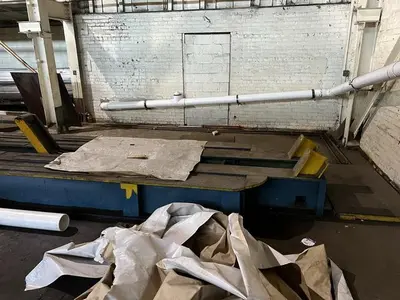

Drop Type Stacker
Side Discharge
Currently Installed
