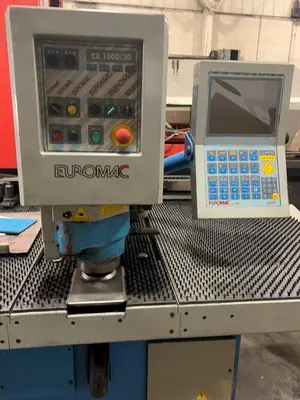

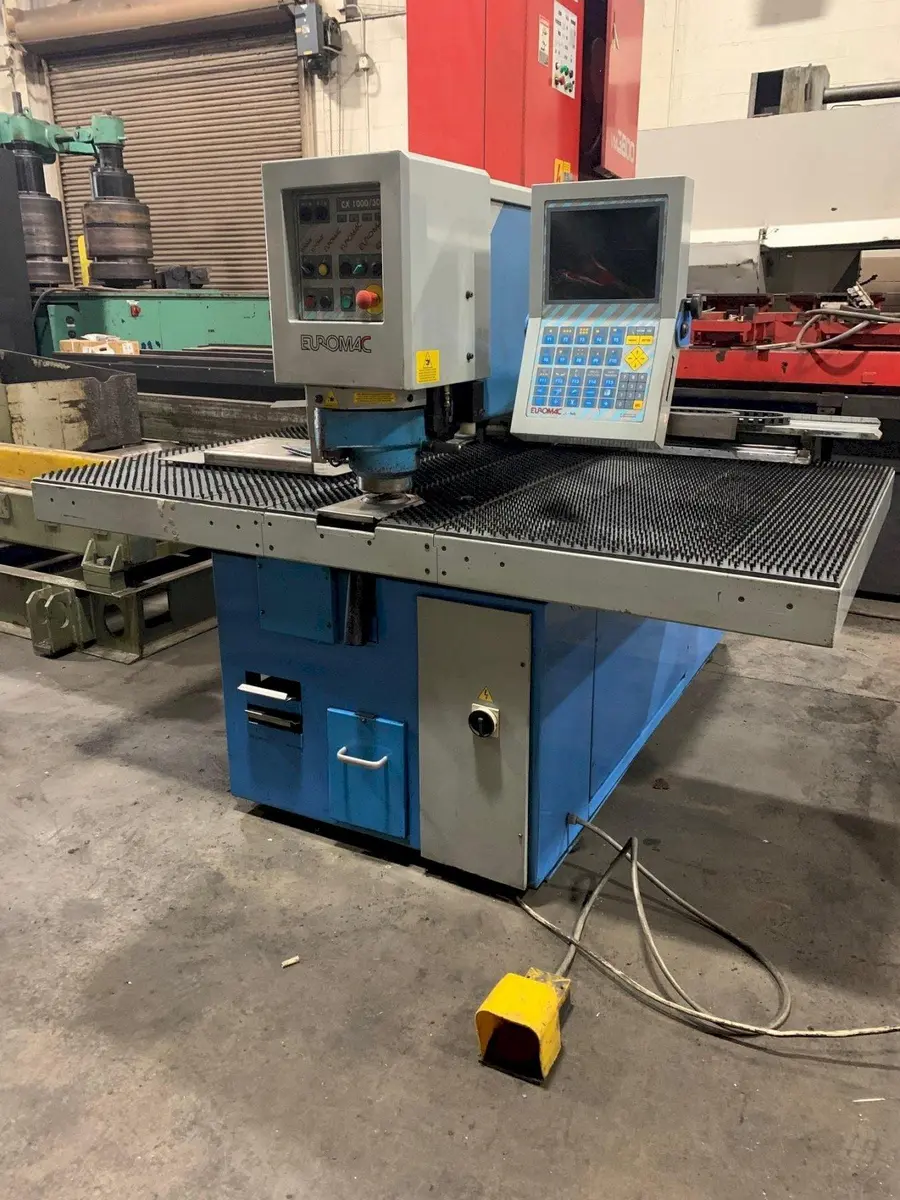

USED EUROMAC 33 TON CNC PUNCHING MACHINE MODEL CX1000/30-1250, Year: 1998

Brand: Euromac
Model: CX1000/30-1250

Specifications:
Tonnage: 33
X-axis stroke: 50" + automatic repositioning
Y-axis stroke: 40" (throat depth)
X-axis speed: 200 - 1,890 IPM
Y-axis speed: 200 - 1,890 IPM
Maximum hits per minute on 1" centers: 150
Maximum strokes nibbling: 220 IPM
Maximum sheet thickness: 0.25"
Maximum sheet weight: 220 Lbs.
Programmable ram stroke with Amada or Strippit tooling: 1.18"
Programmable ram stroke with Trumpf: 2.36"
Sheet handling: Hydraulic assisted clamping
Maximum hole size with thick turret or Strippit tooling: 3.5"
Maximum hole size with Trumpf tooling: 3"
Working surface: 88" x 50.70"
Main motor: 5.5 H.P.
Hydraulic tank capacity: 30 gallons
Overall dimensions: 98" x 79" x 74"
Weight: 10,750 Lbs.

Features:
CNC programmable with Windows based computer system
Material positioning system, CNC controlled sheet clamping
Ability to jog ram
Capable of generating full tonnage at any point in the stroke
Infinitely variable stroke
Ability to perform operations such as slots, fins, flanges, louvers, etc...
Accepts popular tooling and 6 or 10 station multi-tools
Hydraulically assisted locking of punch and die
Rigid cast "C" frame
