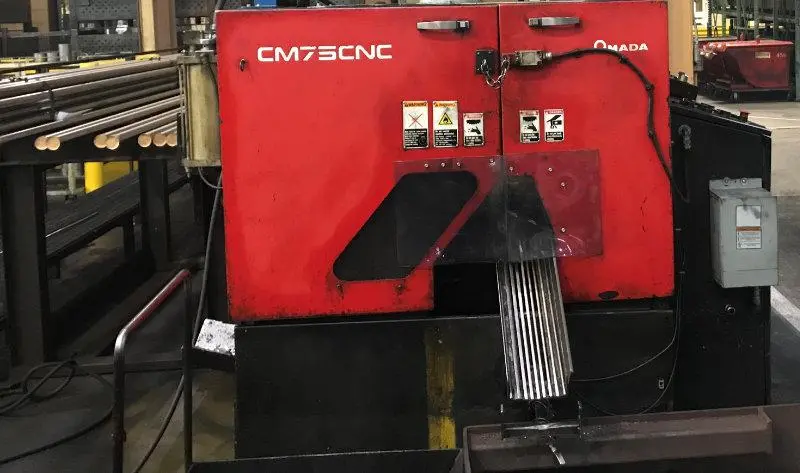

Used AMADA FULLY AUTOMATIC CARBIDE CIRCULAR SAW , Model CM75, 2.95”, Year 2005
Have one to sell?
ConditionUsed
1 available
Used AMADA CM75 fully automatic carbide circular saw, 2005, delivers precision cuts for round solids up to 2.95” and flat profiles to 2.16”. Features include PLC control, sorting chute, and 20’ incline magazine. Compact and powerful with hydraulic vise.
Brand: Amada
Model: CM75
Specifications:
Cutting Capacity, Round Solid @ 90 deg: 0.4” - 2.95”
Cutting Capacity, Flat & Profile @ 90 deg: 0.4” x 0.4” - 2.16” x 2.16”
Loading Magazine Type: Incline
Loading Magazine Length: 20’
Saw Blade Dimensions: 11.2” x 1.57” x 0.08”
Automatic Feed Length (one stroke): 28.15”
Shortest Cut-off Length (Automatic): 0.4”
Head feed (manual / powered): Powered
Material Discharge: Sorting chute
Way type: Slides

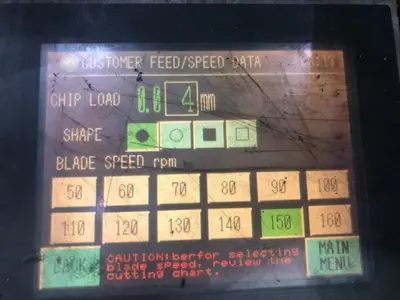

Cutting Speeds: 56-255 RPM (inverter drive)
# of Speeds: InfinateManual / Air / Hydraulic Vise: HydraulicCoolant Type: MistHydraulic
Motor: 3 H.P.
Air Requirements: 90 PSI
Main Saw Motor: 10 H.P.
Voltage: 220 volt 3 phase
Dimensions: 80” x 67” x 62” (saw only)
Weight: 5,512 Lbs.
Highlights:
2.95” cap., 20’ incline type mag., PLC, 56-255 RPM, Inverter drive, sorting chute

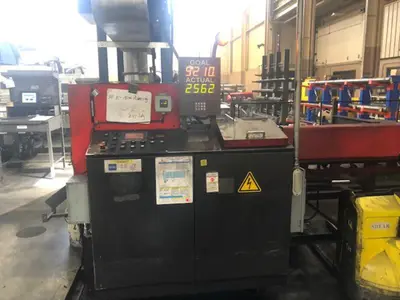

PLC control
Anti backlash device
Cut piece counter
Ammeter for main motor amp draw
Self diagnostics
Chip conveyor

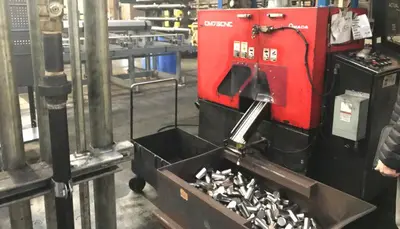

Sorting chute to separate trim and remnants from good cut pieces
Automatic trim cut
Carbide stabilizer pads

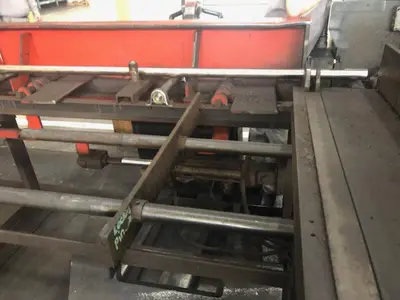

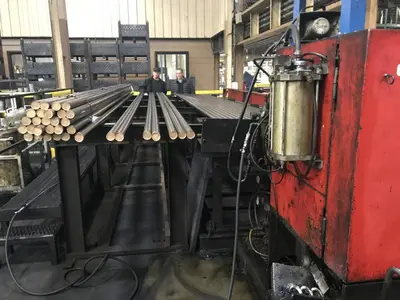

20’ incline table
Controlled mist system
Wire blade chip brush
