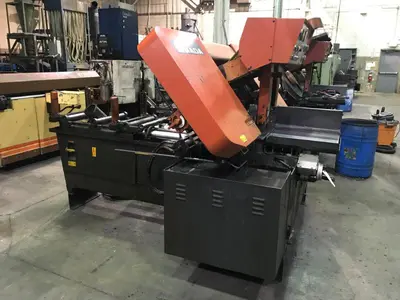

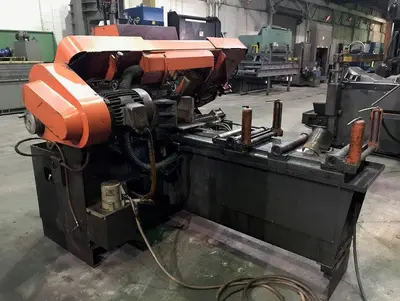

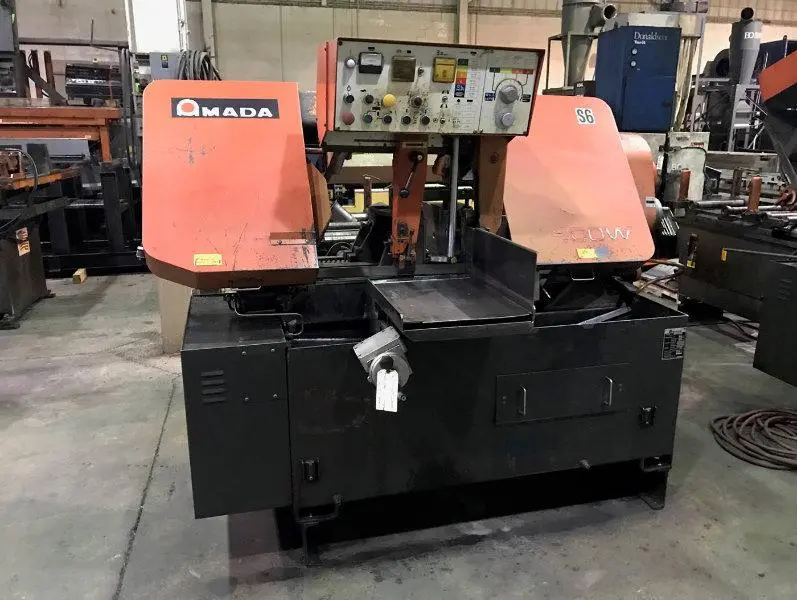

USED AMADA AUTOMATIC HORIZONTAL BAND SAW , Model HA-400W, 16" x 16", YEAR: 1997
Have one to sell?
ConditionUsed
1 available
Used Amada HA-400W Horizontal Band Saw, 1997 model. Cutting capacity: 16"x16", blade: 15' x 1.5", powered by a 7.5 H.P. motor. Features include hydraulic vise, infinite speeds, and multiple index feed. Dimensions: 90"x106"x63", weight: 4,850 lbs.
Brand: Amada
Model: HA-400W
Specifications:
Maximum cutting capacity 90 deg, round: 16"
Maximum cutting capacity 90 deg, square: 16" x 16"
Blade dimensions: 15' x 1-1/2" x .050"
Blade guides: Carbide
Guide arm (manual / powered): Manual
Blade speeds: 50 - 295 FPM
Number of speeds: Infinite
Blade motor: 7.5 H.P.
Blade drive type: Motor to pulley to gearbox
Blade tension type: Hydraulic
Hydraulic motor: 2 H.P.
Hydraulic Tank Capacity: 31.5 Gallons
Coolant motor: 1/4 H.P.
Coolant type: Flood
Coolant tank capacity: 10.5 Gallons
Maximum feed length: 19.6"
Number of multi indexes: 9x
Table height: 31.5"
Maximum weight load: 5,511 Lbs.
Vise type: Hydraulic
Remnant length: 3"
Voltage: 440 volt 3 phase
Dimensions: 90" x 106" x 63"
Weight: 4,850 Lbs.
Length set with hand wheel and has a mechanical length readout
Amp meter
4 vertical rollers
Wash down hose
Blade break switch
Out of stock switch
Piece counter
Powered screw type chip auger
Fast approach of blade to cut area
Powered chip brush
Positive hydraulic down feed
Manual/automatic mode

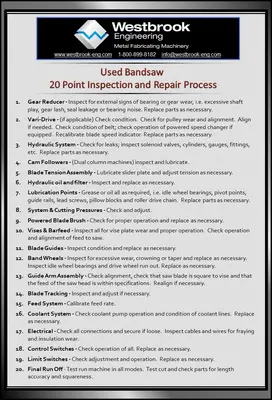

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
