USED HEM HORIZONTAL MITERING BASE BANDSAW, Model DC-2038RBI, 20” x 38”, YEAR: 2005
Have one to sell?
$39,500.00 USD
$29,500.00 USD
ConditionUsed
1 available

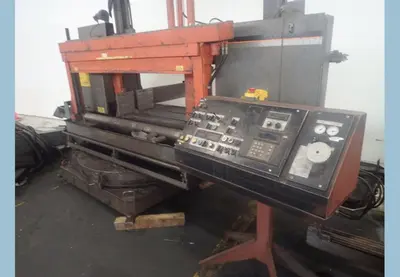

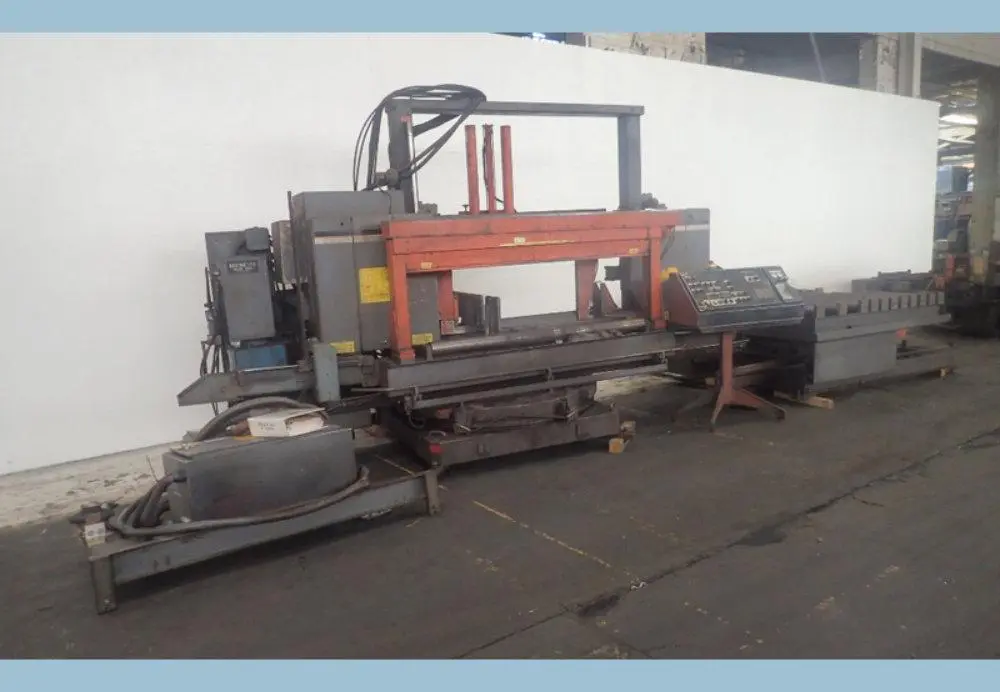

Used 2005 HEM Horizontal Mitering Band Saw, Model DC-2038RBI. Max cut: 20" round, 20" x 38" rectangular. Features 15 H.P. motor, 65-350 FPM speed. Hydraulic tension, flood coolant, LED miter control, and powered chip conveyor included.
Brand: Hem
Model: DC-2038RBI
Specifications:
Max. cutting cap. 90 deg, round: 20”
Max. cutting cap. 45 deg, round: 20”
Max. cutting cap. 30 deg, round: 20”
Max. cutting cap. 90 deg, rectangular: 20” H x 38” W
Max. cutting cap. 45 deg, rectangular: 20” H x 24” W both directions
Max. cutting cap. 30 deg, rectangular: 20” H x 16” W one direction
Max degree of miter: 30 degrees
Blade dimensions: 2” x .062 x 24’6”
Blade guides: Carbide
Guide Arm (Manual / powered): Powered
Blade speeds: 65 - 350 FPM
Number of speeds: Infinite
Blade motor: 15 H.P.
Blade drive type: Motor to gearbox
Blade tension type: Hydraulic
Blade wheel size: 28”
Head Lift Type: Hydraulic
Hydraulic motor: 5 H.P.
Coolant type: Flood
Number of Vises: 4
Vise Type (Manual / Hydraulic / Air): Hydraulic

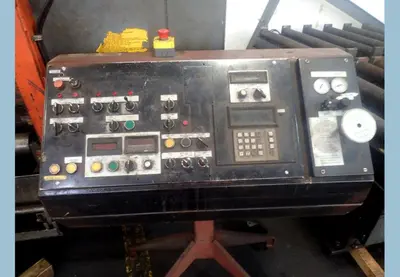

Controls: Free standing console
Voltage: 220 / 440 volt 3 phase
Currently Wired: 440 volt 3 phase
Highlights:
Hem DC-2038RBI Horizontal Bandsaw, 30 Deg Miter Base, 2” Blade, 65-350 FPM, 15 H.P. (2005)
2 degree canted head
Split front vise
Hydraulic blade tension
Powered miter from control with LED readout
Cut watcher system
Full capacity top clamps (both in/out feed sides of blade)
Input and Output 48” roller tables that telescope out of the way when saw base rotates
Powered chip conveyor
Powered blade chip brush
Push button blade speed control with LED readout
Laser light

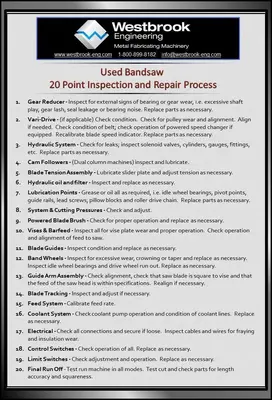

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
