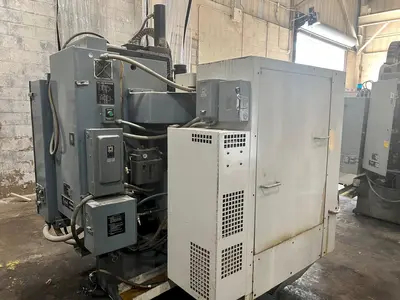

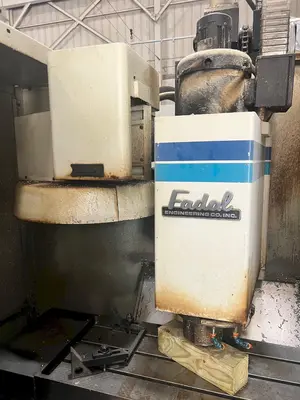

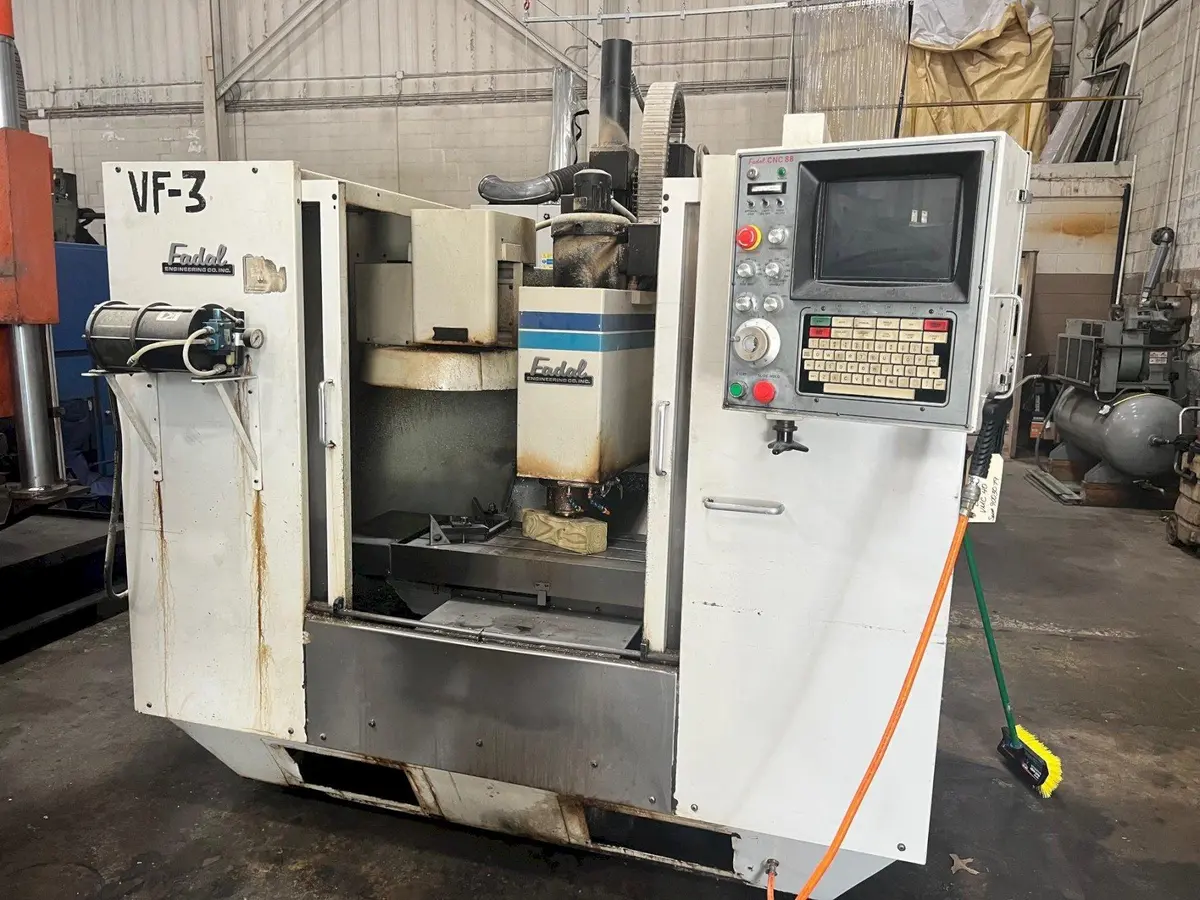

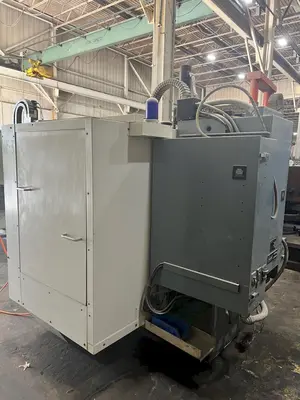

USED FADAL VMC 40 VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
FADAL VMC 40, a high-performance vertical machining center, offers a 21-station tool changer, Fadal CNC 88 control, and coolant. Features include a 22" x-axis, 16" y-axis, 20" z-axis, and a 10,000 RPM spindle with CAT 40 taper, all housed within 85" x 77" x 94" dimensions.
Brand: Fadal
Model: VMC 40
Specifications:

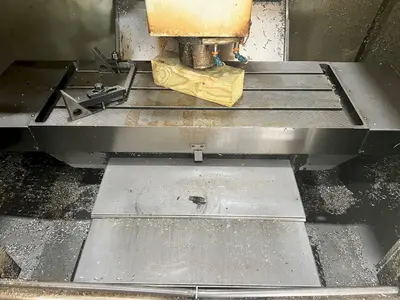

Table size: 39" x 16"
Maximum table load: 750 Lbs.
Distance spindle nose to table top: 4" - 24"
X-axis travel: 22"
Y-axis travel: 16"
Z-axis travel: 20"
Spindle taper: CAT 40
Spindle speeds: 10,000 RPM's
Spindle motor: 15 H.P.
Rapid traverse rates: 400 IPM
Voltage: 230 volt 3 phase
Dimensions: 85" x 77" x 94:
Weight: 8,100 Lbs.
21 station tool changer

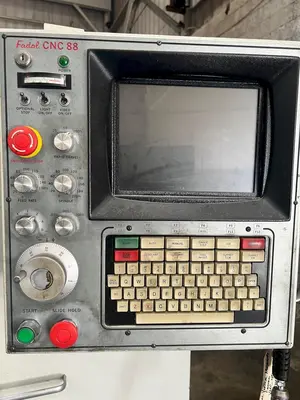

Fadal CNC 88 control
Coolant
