USED FADAL MODEL 4020A VERTICAL MACHINING CENTER YEAR: 1999
Have one to sell?
ConditionUsed
1 available

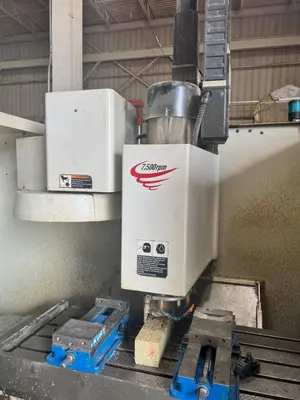

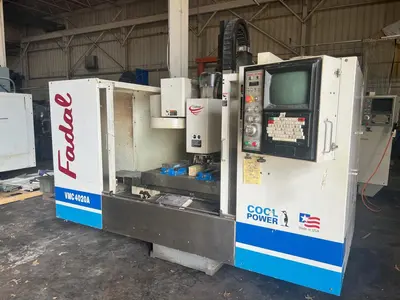

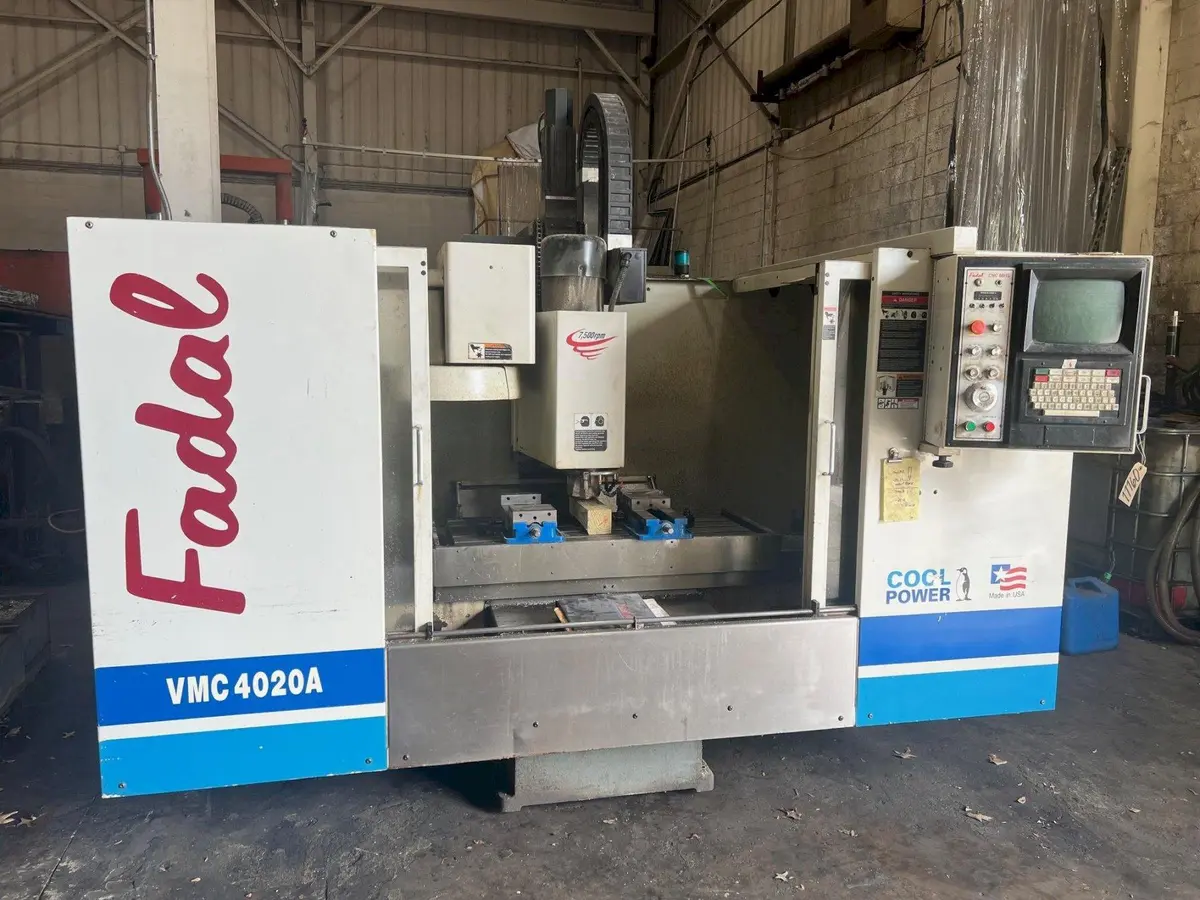

1999 FADAL 4020A Vertical Machining Center, 40" x 20" x 20" travel, CAT 40 spindle, 7500 RPM, 21 tool stations, prewired for 4th axis. Includes 2 Kurt vises, Fadal 88HS control, and through spindle coolant. Currently wired for 230V.
Brand: Fadal
Model: 4020A
Specifications:
Table size: 48" x 20"
Maximum table load: 1,500 Lbs.
Distance spindle nose to table top: 4" - 24"
X-axis travel: 40"
Y-axis travel: 20"
Z-axis travel: 20"
Spindle taper: CAT 40
Spindle speeds: 7,500 RPM's
Spindle motor: 15 H.P.
Rapid traverse rates: X/Y: 900 IPM, Z: 700 IPM
Voltage: 230 / 440 volt 3 phase (currently wired 230 volt)
Weight: 10,500 Lbs.
21 station tool changer
Prewired for 4th axis

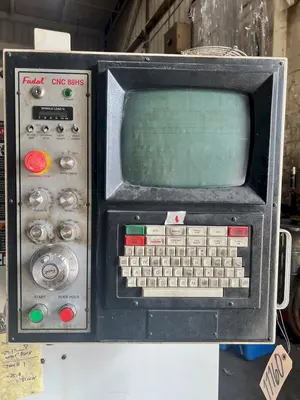

Fadal 88HS control Through spindle Coolant

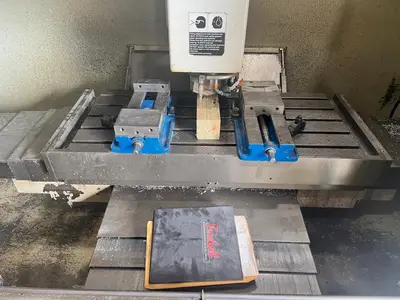

(2) Kurt vises
