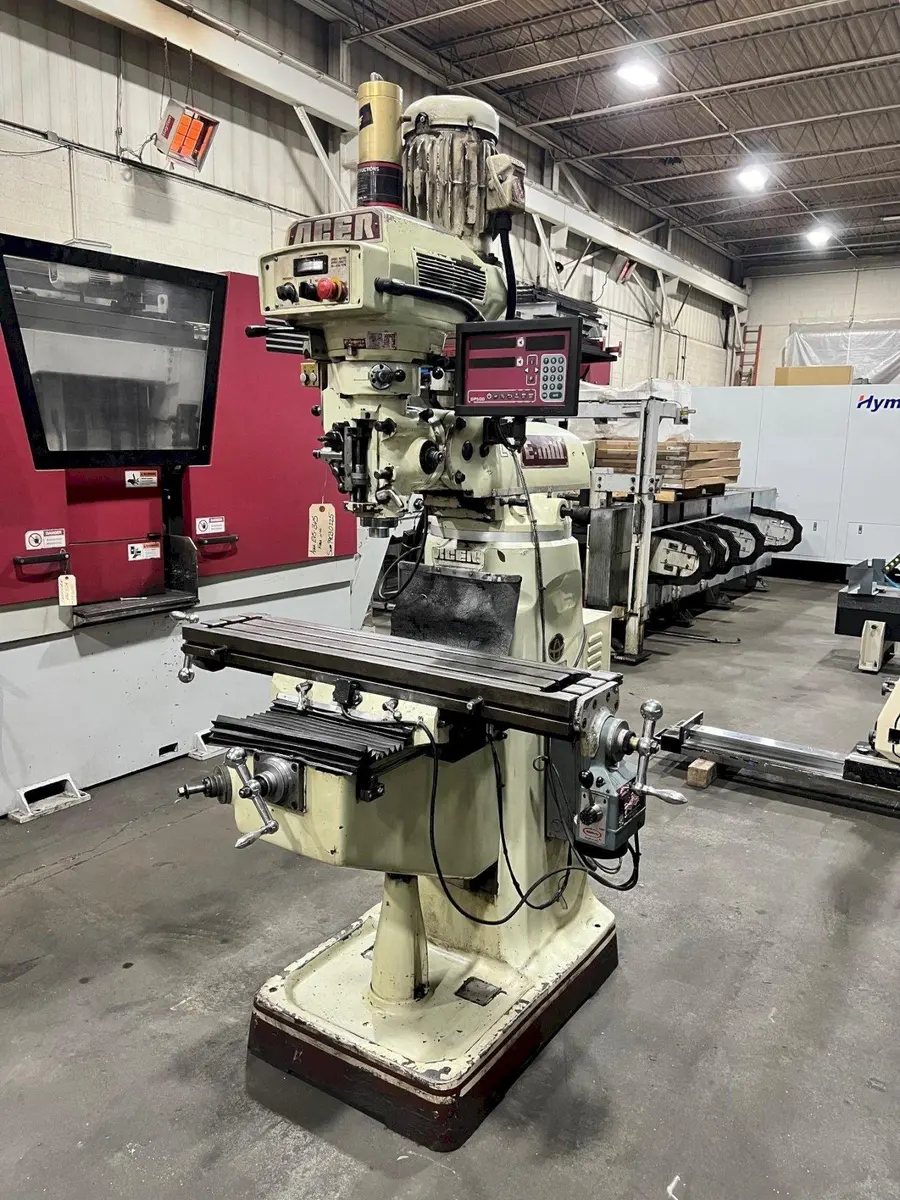

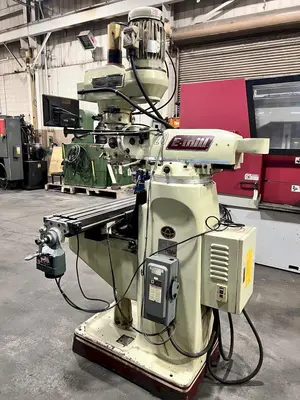

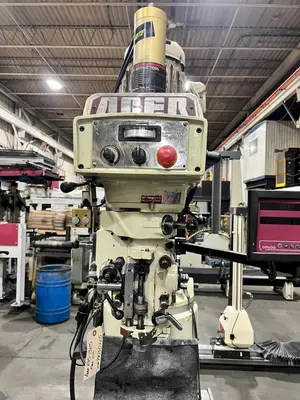

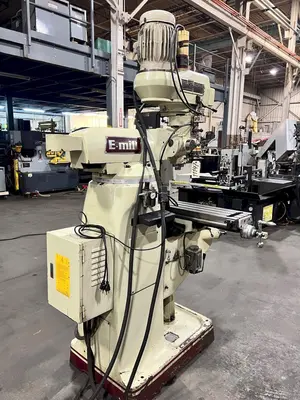

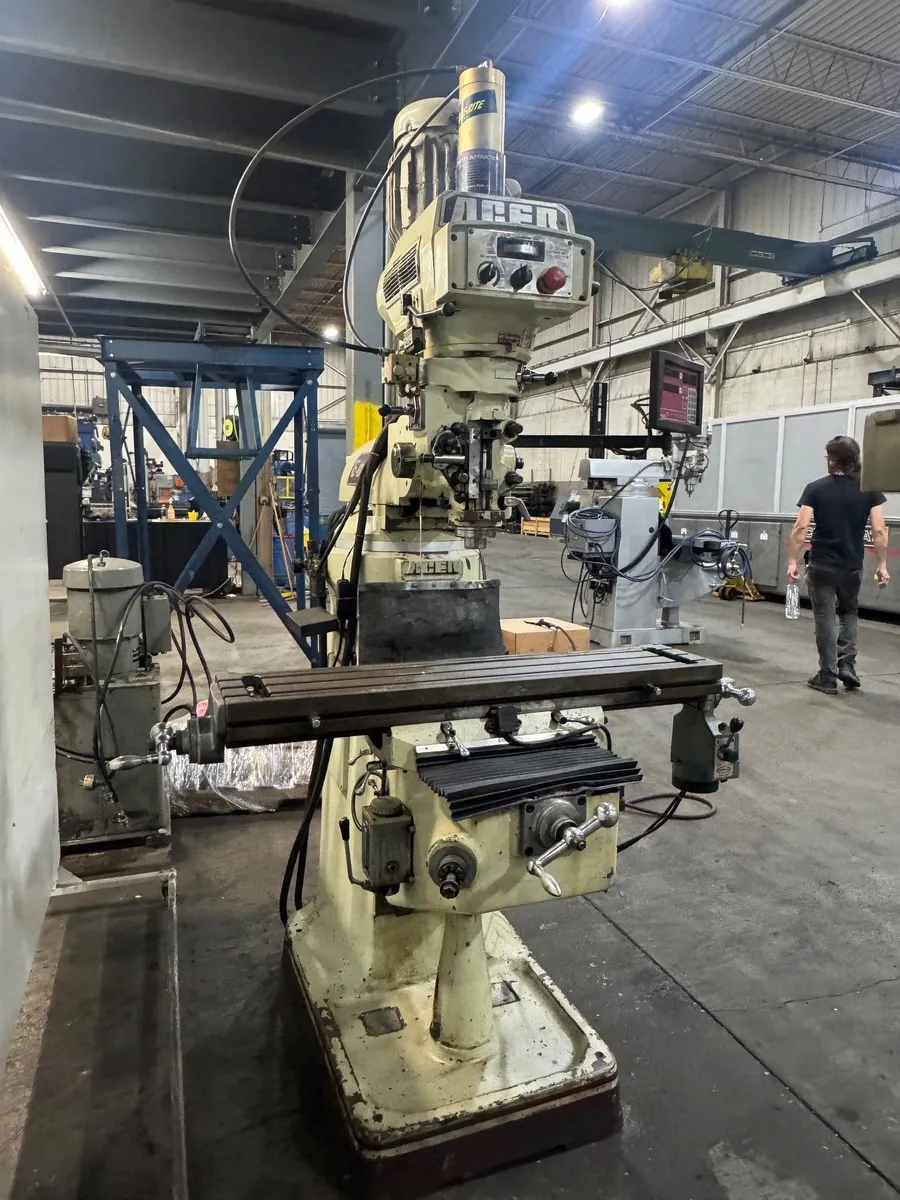

USED ACER E-MILL VERTICAL KNEE MILL MODEL 3VS, Year: 1999
Have one to sell?
$7,950.00 USD
$5,950.00 USD
ConditionUsed
1 available
ACER EVS-3VS knee mill, 1999, offers a 9" x 42" table, 3 HP inverter motor, and 60-4,500 RPM spindle speed. Features Newall DP500 2-axis readout, X-axis power feed, and power drawbar. 480V 3-phase power, weighing 2,400 lbs.
Brand: Acer
Model: E-Mill 3VS
Specifications:
Table size: 9" x 42"
Longitudinal travel: 28"
Cross travel: 12"
Vertical knee travel: 16"
Ram travel: 12"
T-slot number, size: (3) 5/8"
Head left to right: 90 degrees
Head front to back: 45 degrees
Spindle speed: 60 - 4,500 RPM (infinitely variable)
Spindle taper: R8
Power quill feeds: 0.0015, 0.003, 0.006 in/rev
Quill diameter: 3-3/8"
Quill travel: 5"
Voltage: 480 volt 3 phase
Weight: 2,400 Lbs.
X-axis power feed
Power drawbar

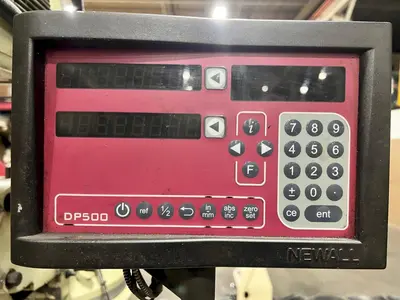

Newall DP500 2-axis readout
Fan cooling system dissipates heat efficiently
3 HP spindle inverter motor
One piece quill pinion & shaft
