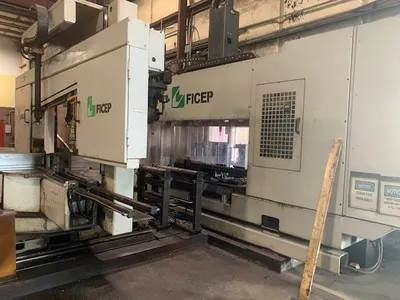

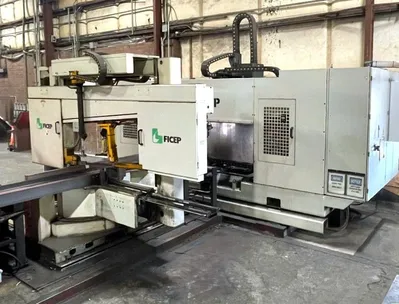

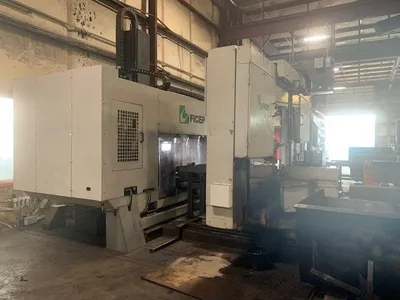

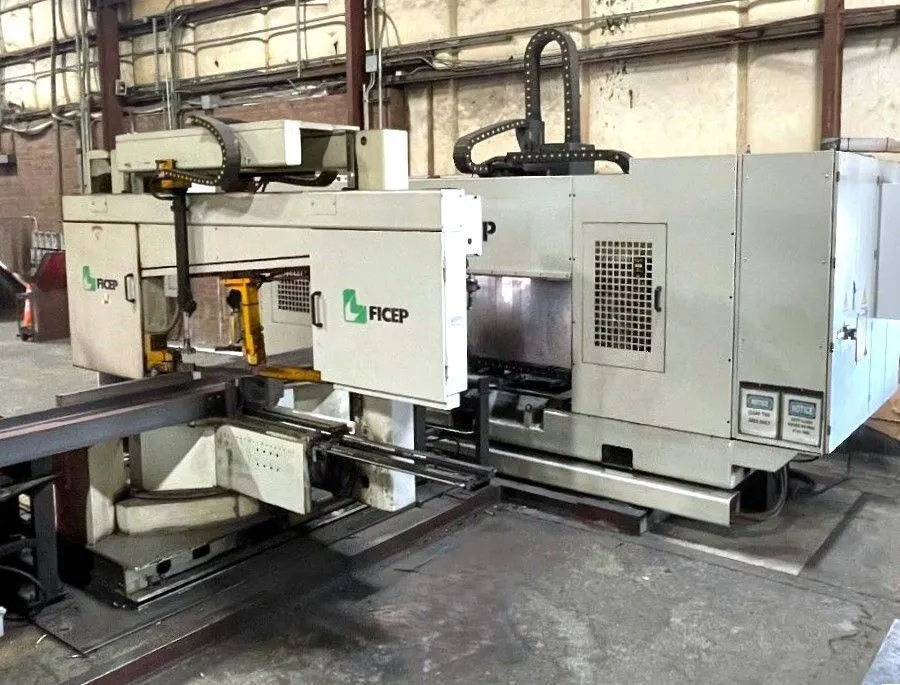

2013 FICEP 1001 DDB CNC DRILLING & SAWING LINE FOR BEAMS
Have one to sell?
ConditionUsed
1 available
Used 2013 FICEP 1001 DDB Beam/Drill Line in good condition, perfect for efficient industrial applications. Optimize your production with this reliable equipment from a trusted manufacturer. Contact for details.
Brand: Ficep
Model: 1001 DDB
Drill specifications:
No. or spindles rotating: 1
Beam depth min. - max.: 3-1/8" - 40"
Flange height min. - max.: 3/8" - 17-3/4"
Maximum drilling diameter: 1-9/16"
Maximum drill thickness: 4"
Spindle motor: 22 H.P.
Spindle speed: 180 - 2500 RPM's
Saw specifications:
Sawing capacity at 90 degrees: 40" x 17-3/4"
Sawing capacity at 45 degrees: 24-3/8" x 17-3/4"
Sawing capacity at 60 degrees: 13-3/4" x 13-3/4"
Blade speed: 196 - 557 FPM
Saw motor: 12 H.P.
Machine sold As-Is Where-Is
Specifications subject to verification

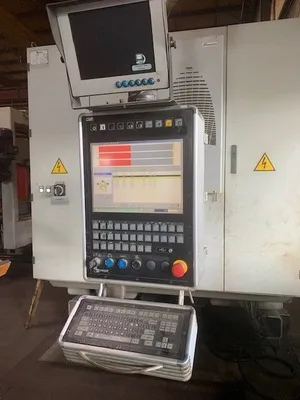

Ficep Pegaso CNC control
(1) monospindle 180 degree rotary drilling spindle for drilling on 3-sides
(6) position tool changer
Scribing
Carraige feed

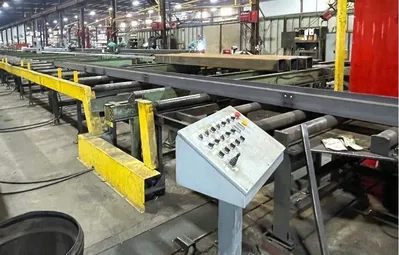

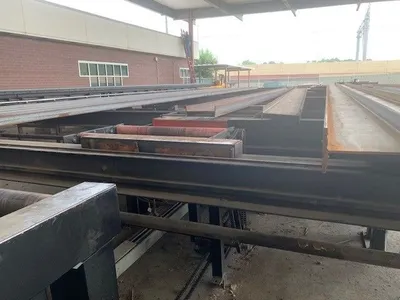

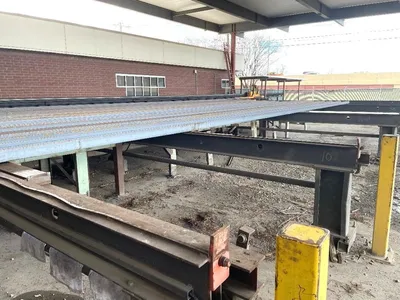

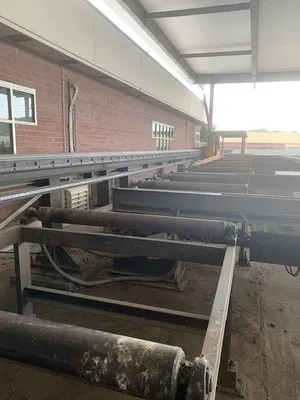

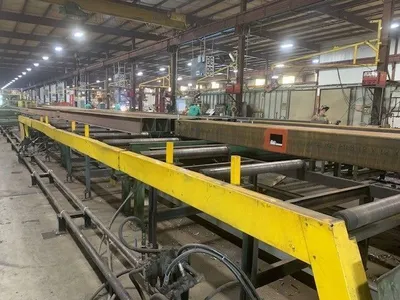

65' powered infeed conveyor with transfers
40' outfeed powered conveyor
