| X-Axis | 29.5" | 749.3 mm |
| Y-Axis | 24.6" | 624.84 mm |
| Z-Axis | 19.7" | 500.38 mm |

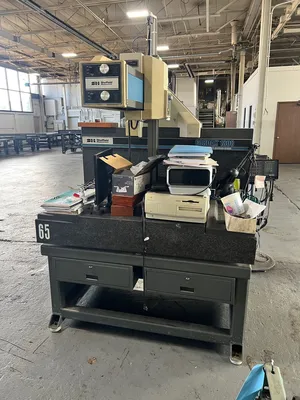

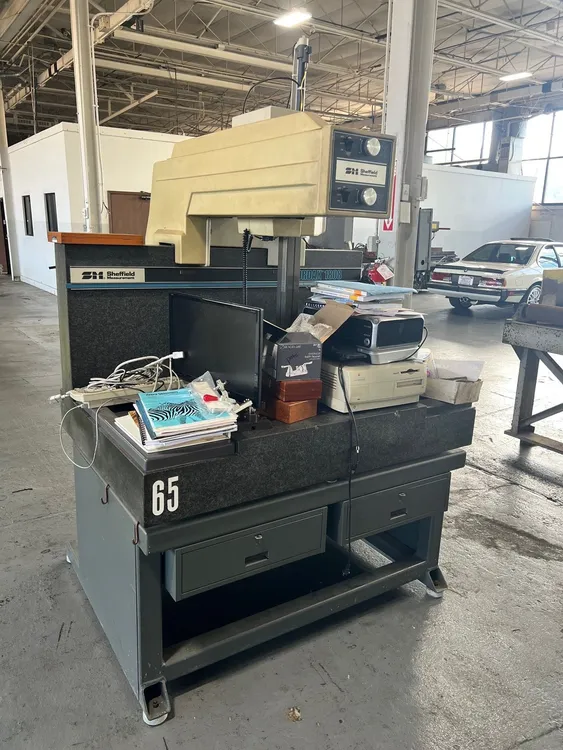

Brand: Sheffield Cordax

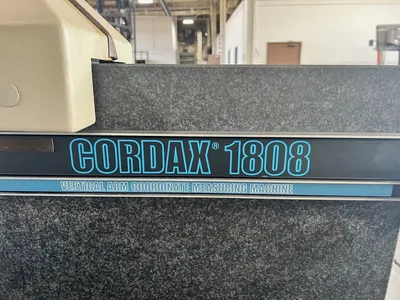

Model: 1808
Measuring range: X: 30" Y: 25" Z: 20"
Dimensions / approx: 64" W x 26.6" L
Max. work load range: 1100# Lbs.
Max work height: 21.6"
Peak acceleration range: 40 IPS
Peak drive speed: 10 IPS
Readout resolution: .00004"
Repeatability: .00012"
Linear accuracy: .0002"
Dimensions: 106"H x 53" F to B x 64" W
Weight: Approx. 3000 Lbs.
Cordax measure Max - Cantilever design
Renishaw model PH-8 Probe

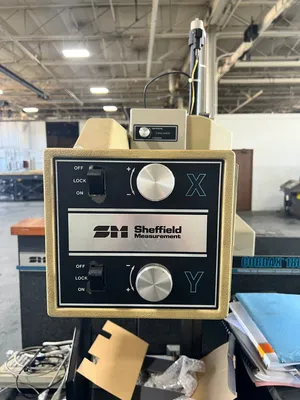

Locks and fine feeds throughout each axis - Z axis counter balance

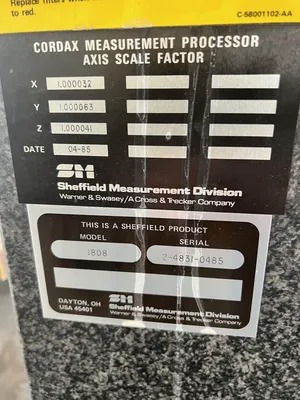

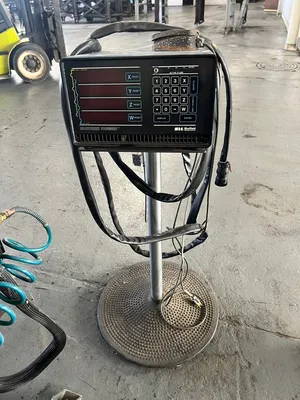

Series Measurement Processor / Readout
