| Tonnage | 100 T | 90.719 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 102" | 2.6 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 1 | 1 |

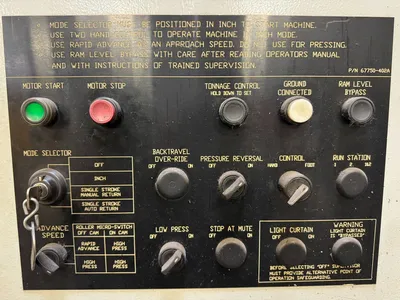

| Control | CNC (Automec) | CNC (Automec) |
| Dimensions | 138" x 62" x 127" | 138" x 62" x 127" |
| Weight | 18000 | 18000 |

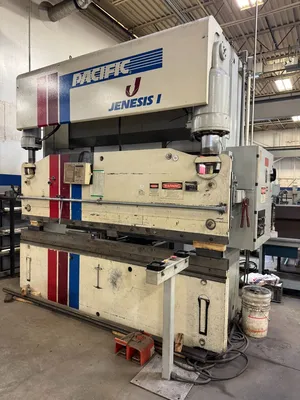

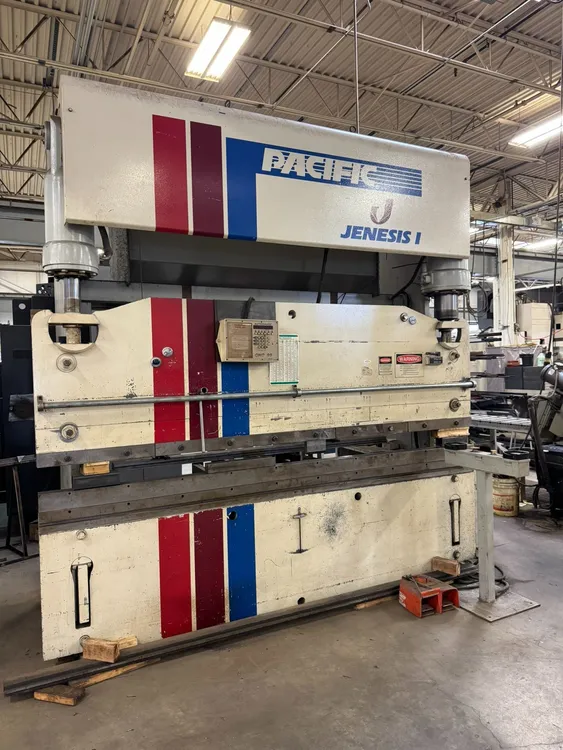

Brand: Pacific
Model: Jenesis J-100-10
Tonnage: 100 tons
Bed length: 10'
Distance between housings: 102"
Ram speeds:
Rapid advance: 330 IPM
High press: 50 IPM
Medium press: 18 IPM
Low press: 10 IPM
Return: 390 IPM
Bed cap width: 3-1/2"
Bed height: 34"
Throat depth: 7"
Throat height: 12-1/2"
Stroke length: 8"
Open height: 15"
Closed height: 7"
Main motor: 30 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 138" x 62" x 127"
Weight: 18,000 Lbs.

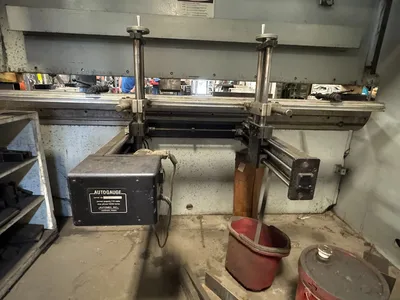

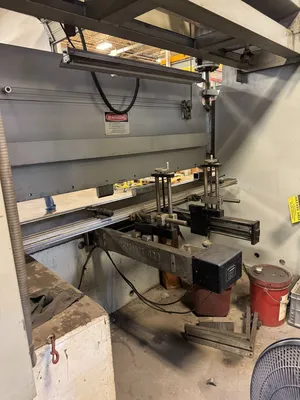

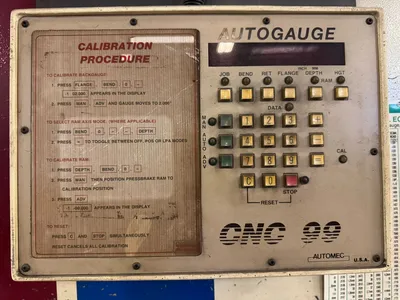

Automec CNC 99 single axis CNC backgauge control
Servo amplifier level control

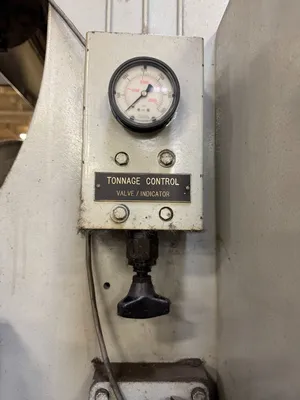

Tonnage control and indicator
3 advance speeds

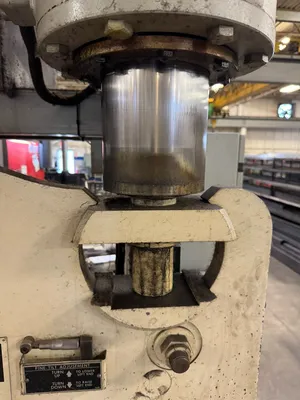

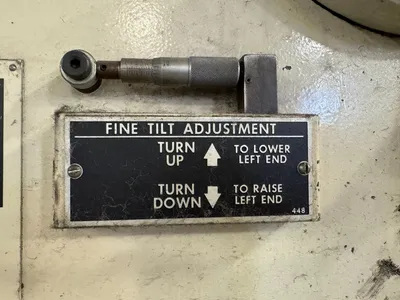

Front operated tilt control

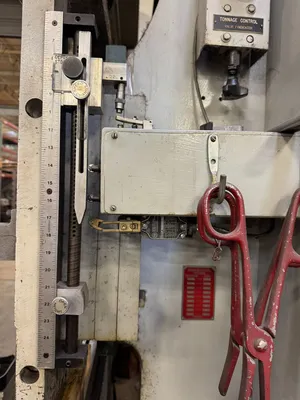

Manual stroke length and ram depth position controls
High speed hydraulic system

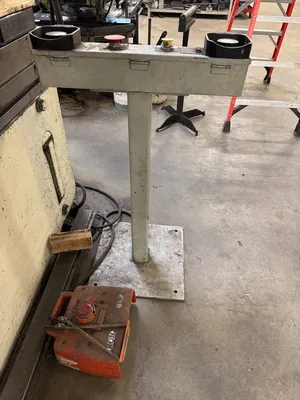

Portable foot pedal
Flush floor design
Machine sold As-Is Where-Is
