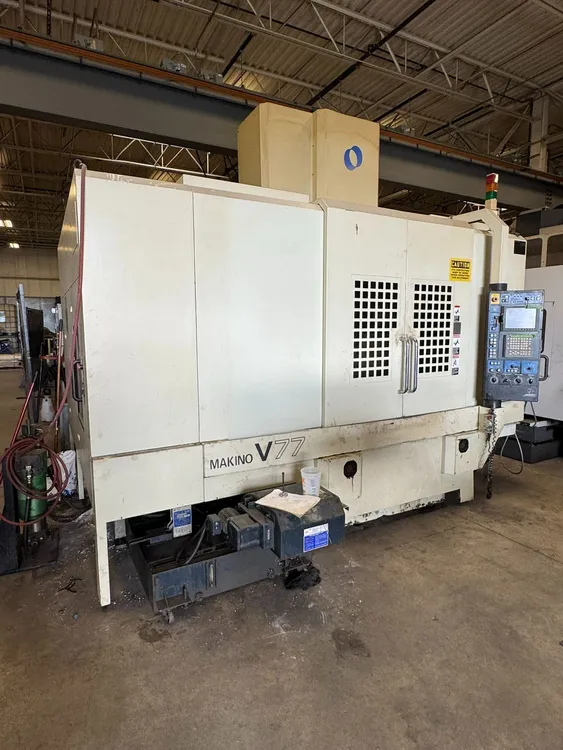

USED 2001 MAKINO MODEL V77 VERTICAL MACHINING CENTER

Have one to sell?

800-899-8182

info@westbrook-eng.com

ConditionUsed

Quantity

1 available

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering (1)

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering (2)

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering (3)

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering (4)

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering (5)

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering (6)

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering (7)

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering (8)

2001 MAKINO V77 Machining Centers, Vertical | Westbrook Engineering

Have one to sell?

Overview

Type:

Machining Centers, Vertical

Manufacturer:

MAKINO

Model:

V77

Year:

2001

Stock #:

11232

Status:

For Sale

Description

USED 2001 MAKINO V77 Vertical Machining Center features a 47.2 x 27.6 x 25.6" travel, 25 hp, 20,000 RPM, 30 ATC, HSK63 taper, and Makino Fanuc Pro 3 CNC. Equipped with Blum Laser, coolant systems, chip conveyor, and remote handwheel.

ImperialMetric

X	47.2"	1,198.9 mm
Y	27.6"	701.04 mm
Z	25.6"	650.24 mm
Power	25 hp	18.6 kW
RPM	12,000 RPM	12,000 RPM
# ATC	30	30
Taper	BT-50	BT-50
Table-W	27.6"	701.04 mm
Table-L	55.1"	1,399.5 mm
# Axis	3	3
Control	CNC (Makino Fanuc Pro 3 CNC Control)	CNC (Makino Fanuc Pro 3 CNC Control)

Brand: Makino
Model: V-77

Table: 55.1" X 27.6"
Max. Table Capacity: 4,400 LBS
Travels:
X Axis: 47.2"
Y Axis: 27.6"
Z Axis: 25.6"
Spindle Taper: BT-50
Spindle Speeds: Up to 12,000 RPM
Tools: 30 ATC

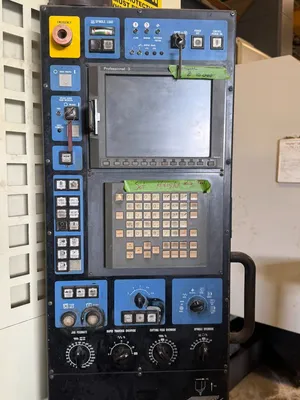

Makino Fanuc Pro 3 CNC Control
Blum Laser
300 PSI Thru Spindle Coolant
Flood Coolant
Chip Conveyor
Remote Handwheel

Machine sold As-Is Where-Is
