| X-axis | 88.6" | 2,250.4 mm |
| Y-axis | 39.4" | 1,000.8 mm |
| Z-axis | 35.4" | 899.16 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 88.6" | 2,250.4 mm |
| Table-L | 39.4" | 1,000.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oi-MF) | CNC (Fanuc Oi-MF) |
| Dimensions | 208" x 145" x 141" | 208" x 145" x 141" |
| Weight | 36300 | 36300 |

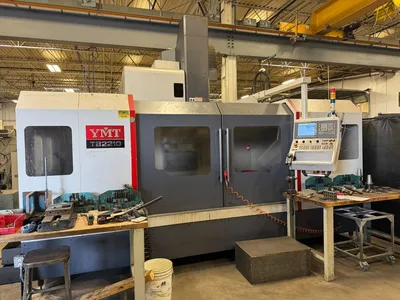

Brand: YMT
Model: TB2210

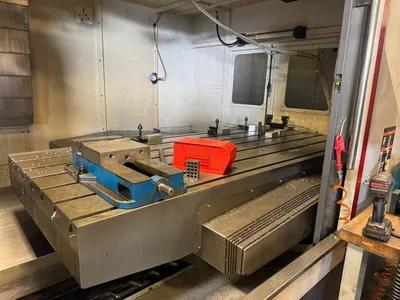

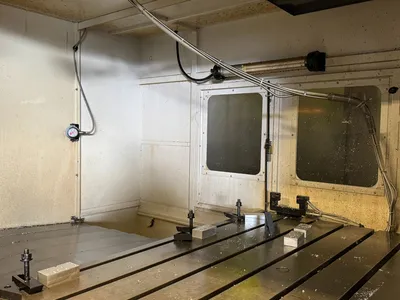

Table Area: 88.6" x 39.4"
T-Slots: (7) 0.86" x 5.9"
Table Max. Load: 6,600 lbs.
Travels:
X Axis: 88.6"
Y Axis: 39.4"
Z Axis: 35.4"
Spindle Nose to Tabletop: 6.5" - 41.9"
Spindle Center to Column Cover: 39.3"
Rapid Feedrates (x,y,z) 472 ipm
Cutting Feedrates (x,y,z): 393 ipm
Spindle Taper: CAT 50
Spindle Speed: 6,000 rpm
Spindle Motor: 35 HP
Tools: 32 Bi-Directional, Random Access
Approx. Weight: 36,300 lbs.
Approx. Floor Space: 208" x 145" x 141"
Electrics: 220 V, 3 Phase, 60 Hz, 118 Amp Breaker
Hours as of Sep. 2025
Runtime: 6097

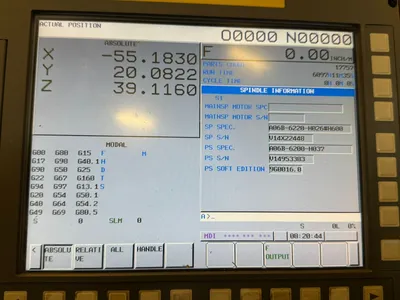

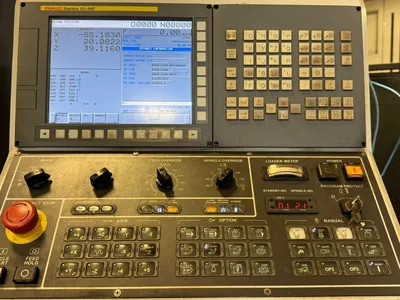

Fanuc Oi-MF CNC control
35 HP Spindle Motor
Fast 32 Tools Swing Arm ATC
6,000 Rpm Spindle Speed W/ Gear Box
Random Access/Bi-Directional ATC

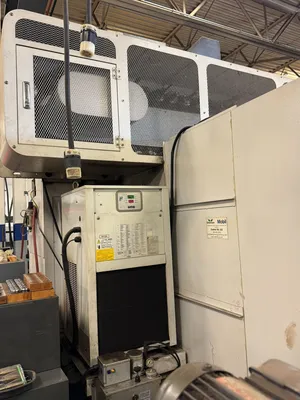

Spindle Chiller
Chip Washing System / Oil Skimmer
Flood Coolant, 118 Gallon Tank
Additional Work & Tool Offsets
Hardened & Ground Box Way Construction
Absolute Encoder

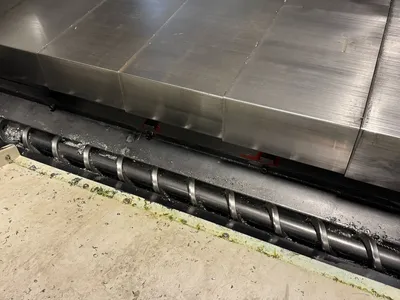

Dual Chip Augers / Chip Conveyor
Aicc -Ii 200 Block Look Ahead
Automatic Central Lubrication System
Custom Macro B & Skip Function
Coolant Through Ballscrew 3 Axis
Rigid Tapping, Manual Guide
Handheld Water Gun / Cts Prep With Union
10.4" Lcd Color Monitor
Cutting Air Blast / Spindle Air Blast
1280 Meters Memory W/ Pcmcia Expansion Slot
Heat Exchanger For Electrical Cabinet
RS 232c Interface & Ethernet Connection
Deep Hole Drilling Package
Laser tool probe
M-Code 30 Auto Power Off
Remote Handwheel
Machine sold As-Is Where-Is
