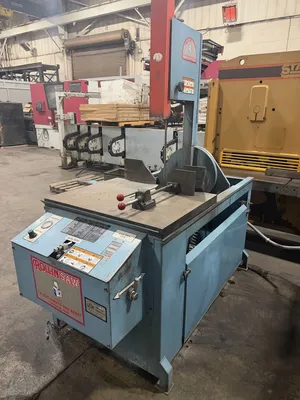

USED ROLL-IN MODEL TF1420 14" X 20" VERTICAL TILT FRAME BANDSAW
Have one to sell?
ConditionUsed
1 available

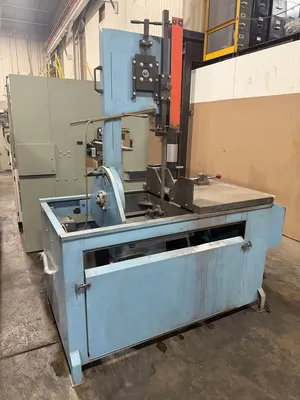

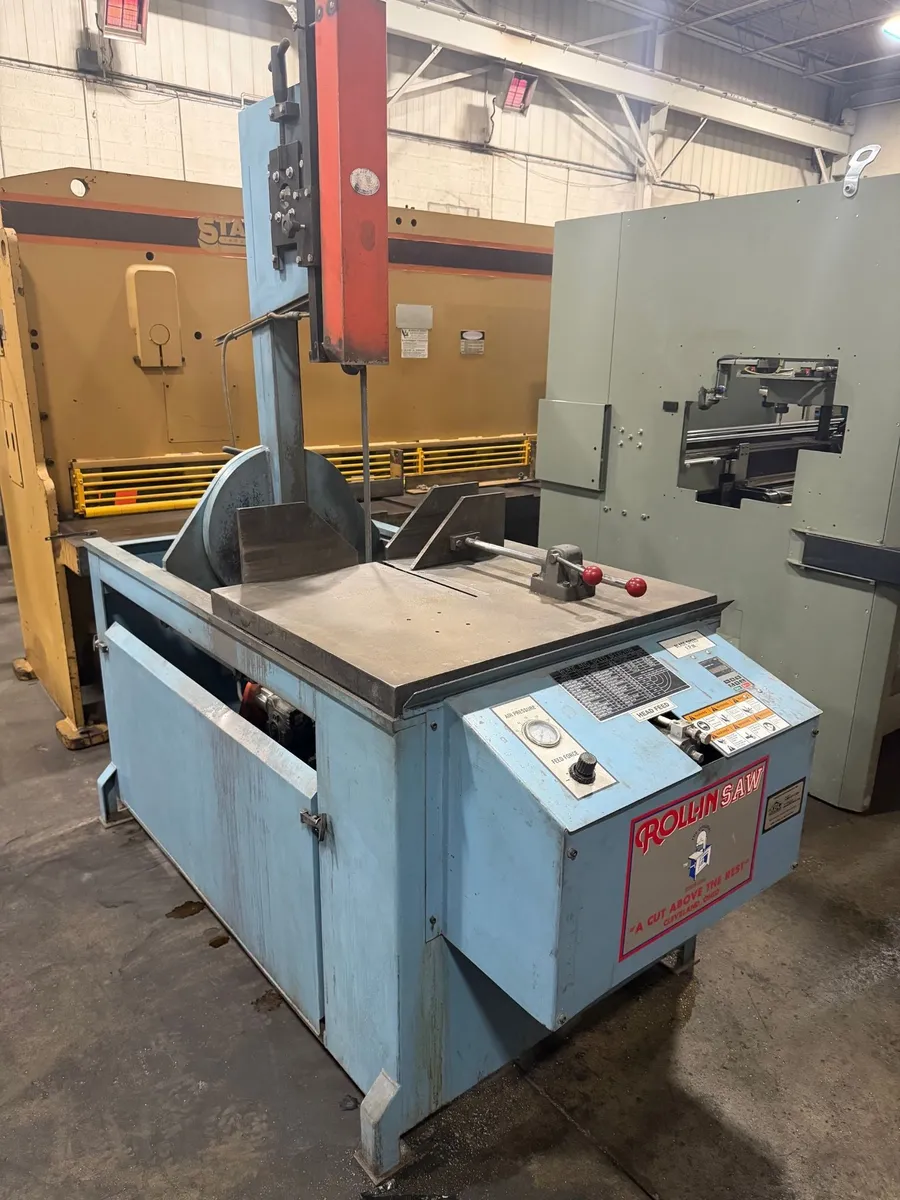

2021 Roll-In Model TF1420 Vertical Tilt Frame Bandsaw, 14" x 20" cutting capacity. Features digital blade speed control, adjustable blade feed, and mist coolant. Powered by a 2 HP motor. Ideal for precise cutting needs.
Brand: Roll-In
Model: TF1420
Specifications:
Cutting capacity @ 90 degrees: 14" W x 20" T
Cutting capacity @ 45 degrees: 13" W x 15" T
Miter range: 45 degrees both directions
Capacity under guide: 20"
Throat: 14"
Blade size: 12'11" x 1" x .035"
Blade acceptable widths: 1/4", 3/8", 1/2", 5/8", 3/4", 1"
Blade speeds: 70 - 400 FPM

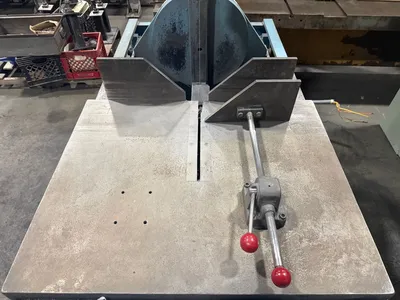

Table size: 32-1/4" x 26-1/4"
Table height: 37"
Main motor: 2 H.P.
Voltage: 440 volt 3 phase
Dimensions: 37" x 66" x 80" (saw only)
Weight: 1,400 Lbs.

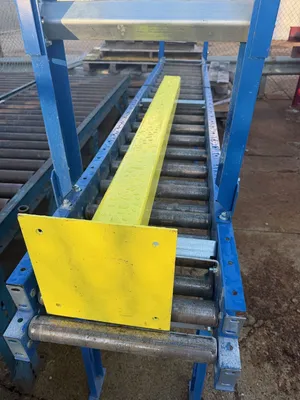

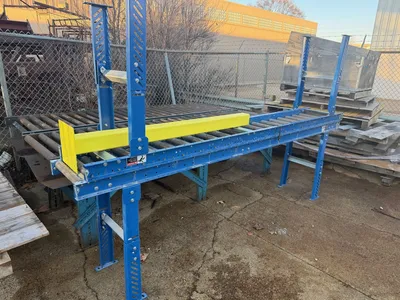

(2) 120" Manual roller conveyors.

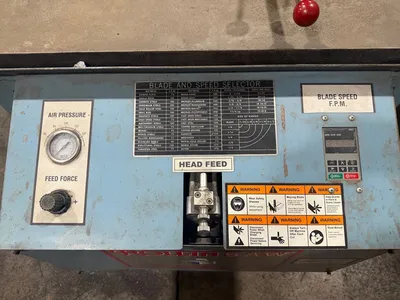

Digital blade speed control with readout.
Air over oil adjustable blade feed system.
Mist coolant.
Manual blade tension.

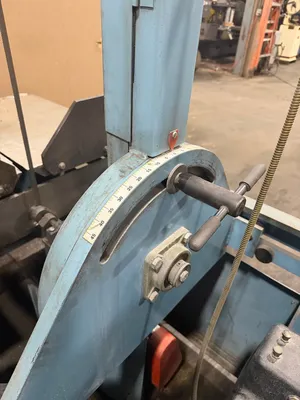

Manual head tilt with miter scale.
