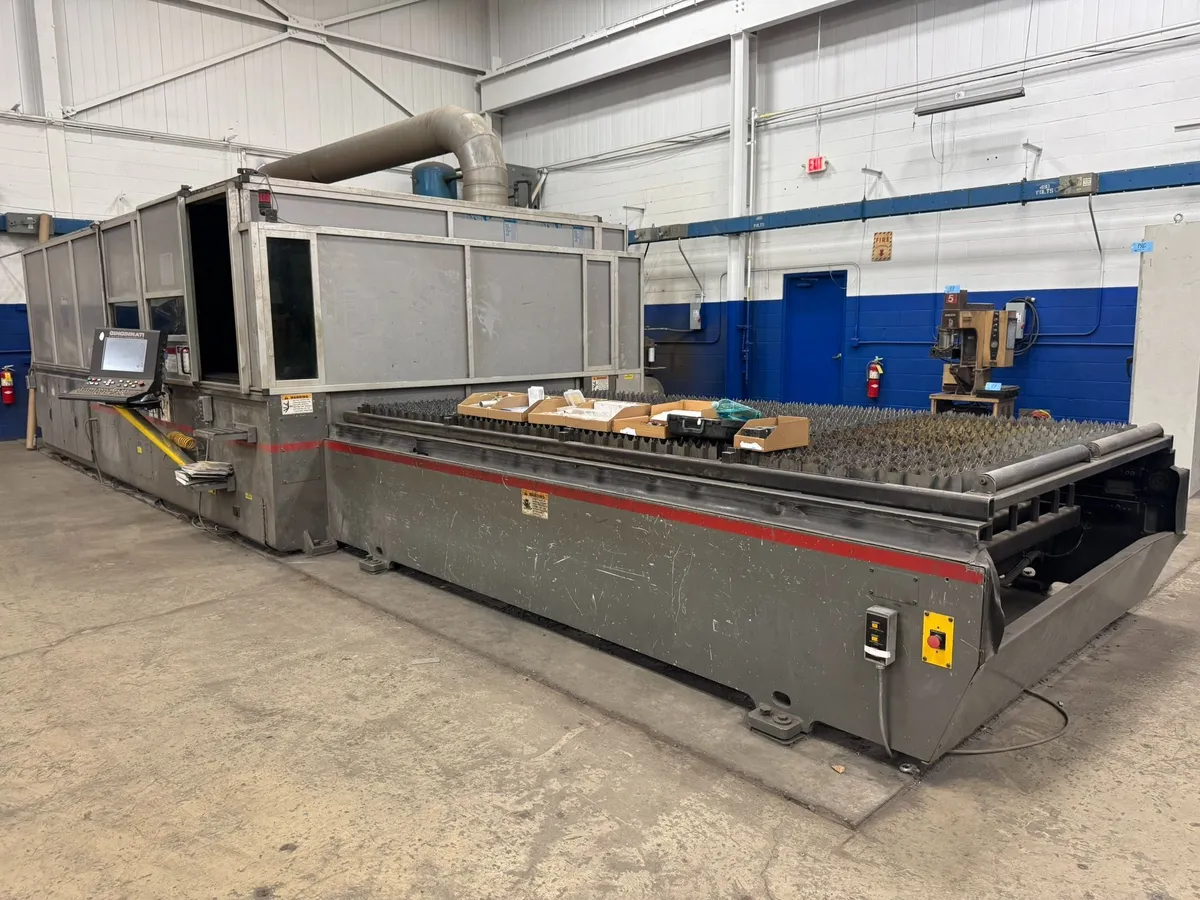

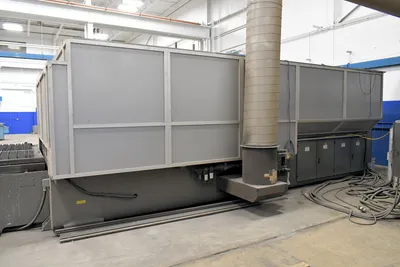

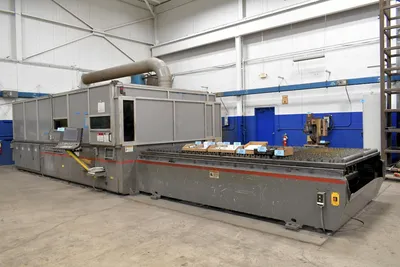

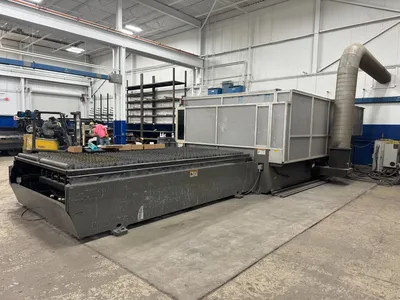

USED 6' X 12' CINCINNATI MODEL CL-940 4,000 WATT CNC FIBER LASER CUTTING SYSTEM
Have one to sell?
ConditionUsed
1 available

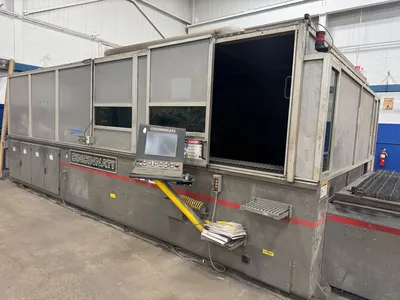

Used 2013 Cincinnati CL-940 CNC fiber laser cutting system. Features 6' x 12' table, 4,000W power, and rapid speeds up to 8,500 IPM. Includes touch screen control, dual shuttle tables, and Koolant Koolers chiller. Ideal for precision work.
Brand: Cincinnati
Model: CL-940
Specifications:
Table size: 6' x 12'
X-Axis Travel: 148"
Y-Axis Travel: 74"
Z-Axis Travel: 10"
Maximum workpiece weight: 2,292 Lbs.
Rapid traverse speeds: X & Y axis: 8,500 IPM, 12,020 IPM simultaneously
Z axis speed: 1,700 IPM
Acceleration X axis: 16.5 G
Acceleration Y axis: 16.5 G
Acceleration Z axis: 2 G

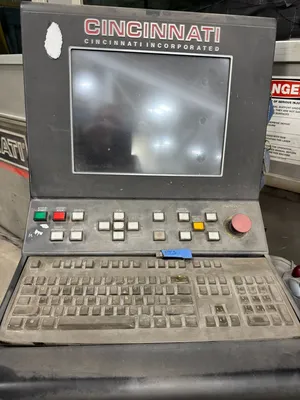

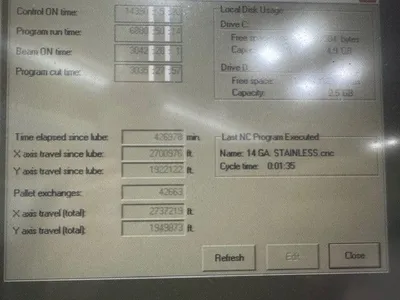

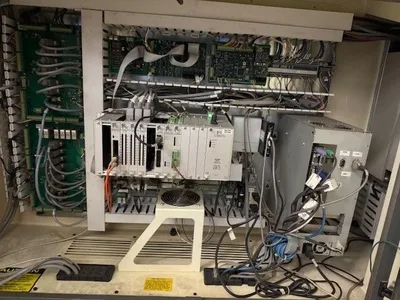

Cincinnati windows based 15" touch screen control

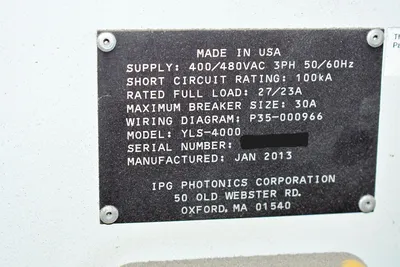

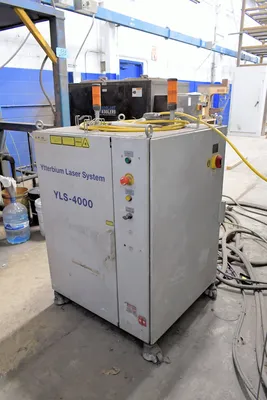

IPG Model YLS-4000 4,000 watt fiber laser generator

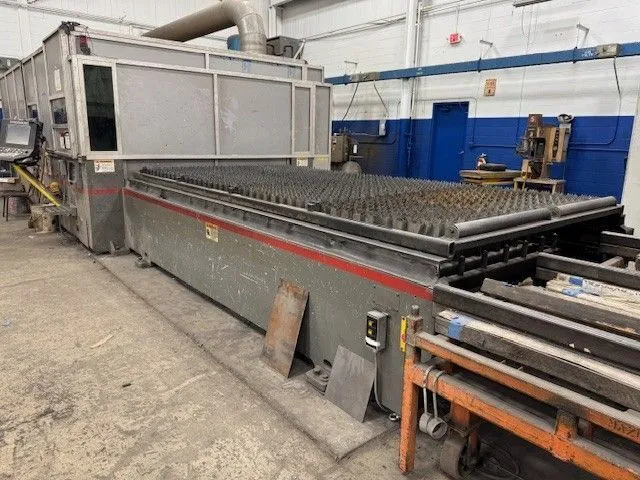

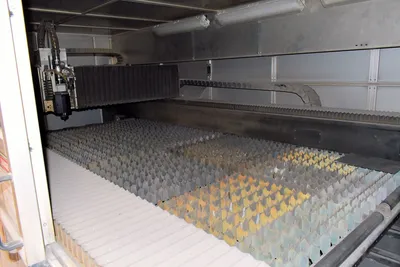

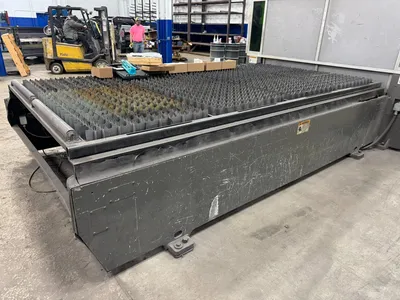

Dual shuttle tables

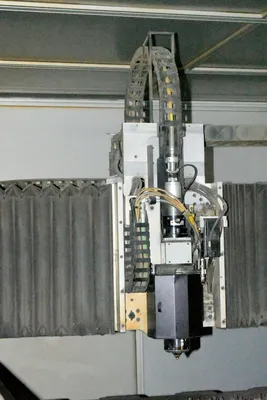

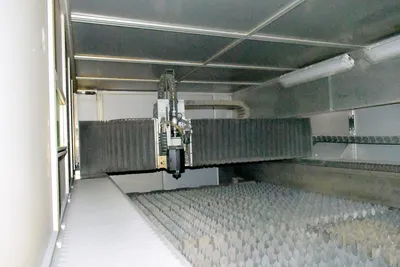

Flying Optic Positioning System
A/C brushless permanent magnet linear servo motors

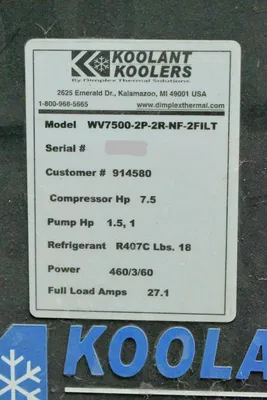

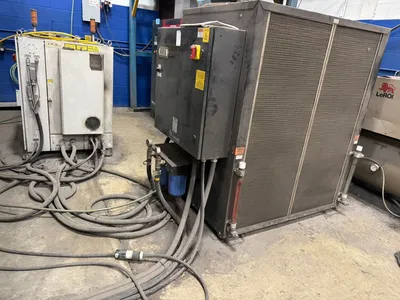

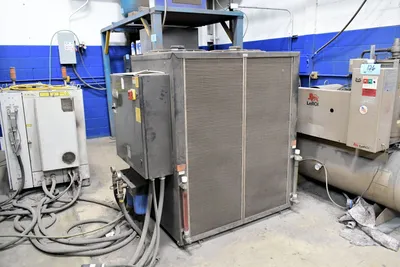

Koolant Koolers Chiller Unit

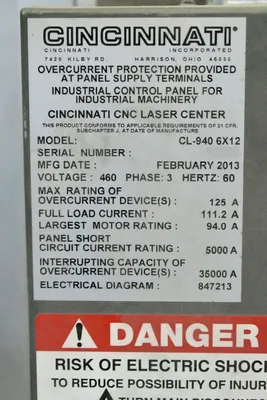

34 KVA Transformer
Machine sold As-Is Where-Is
