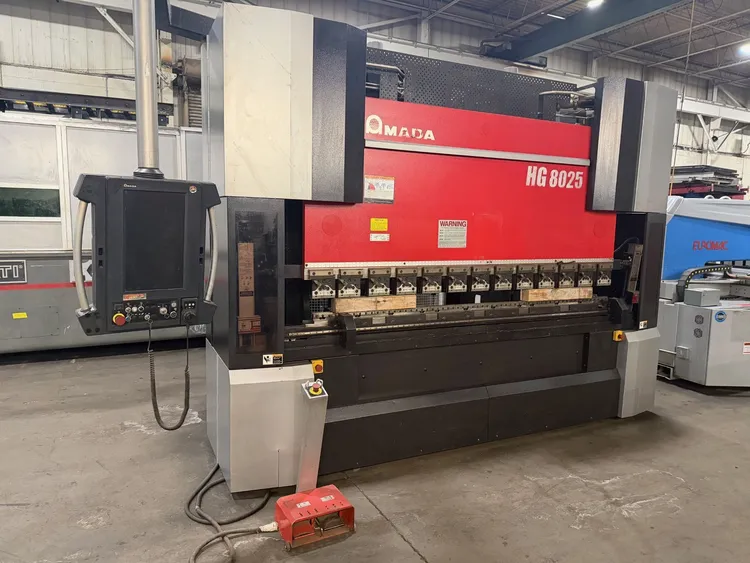

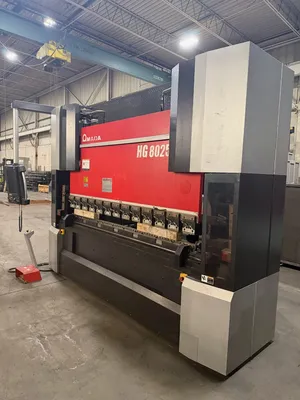

USED AMADA 89 TON X 8.5' 8-AXIS SERVO / HYDRAULIC CNC PRESS BRAKE MODEL HG-8025
Sold

USED AMADA 89 TON X 8.5' 8-AXIS SERVO / HYDRAULIC CNC PRESS BRAKE MODEL HG-8025

Brakes, Hydraulic
Manufacturer:
AMADA
Model:
HG-8025
Year:
2013
Stock #:
11252
Serial #:
80258006
Discover precision with the used Amada HG-8025, an 89-ton x 8.5' 8-axis CNC press brake. Built in 2013, this hydraulic machine boasts a 102.4" bend length, AMNC 3i control, laser safety, and automatic crowning for robust performance.
Tonnage89 T80.74 t
TypeHYDHYD
Overall Length102.4"2.6 m
Between Housings87"2.2 m
Stroke9.8"248.92 mm
# Axis88
ControlCNC (Amada AMNC3i)CNC (Amada AMNC3i)
Dimensions184" x 95" x 112"184" x 95" x 112"
Weight15,875 Lbs.15,875 Lbs.

Brand: Amada
Model: HG 8025

Specifications:
Tonnage: 89 tons
Maximum Bend Length: 102.4"
Distance Between Frames: 87"
Stroke Length: 9.8"
Open Height (no holders): 20.5"
Throat Depth: 17.7"
Table Height: 37.4"
Approach Speed: 8.7" per second
Bending Speed: 0.79 per second
Return Speed: 9.8" per second
Number of Cylinders: 2
Hydraulic fluid capacity: 11 gallons

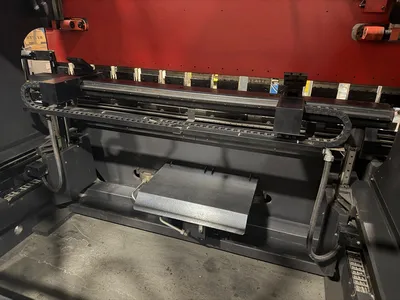

Backgauge Range: 27.5"
Backgauge speed L-axis: 1.181 IPM
Backgauge speed Y-axis: 3.543 IPM
Backgauge speed Z-axis: 0.787 IPM
Voltage: 220 volt 3 phase
Dimensions: 184" x 95" x 112"
Weight: 15,875 lbs

Dual servo power drive system
Independent AC-servo motors drive high efficiency bi-directional hydraulic pumps

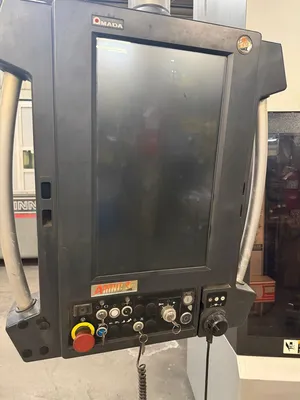

Amada model AMNC 3i Multi-Touch CNC control

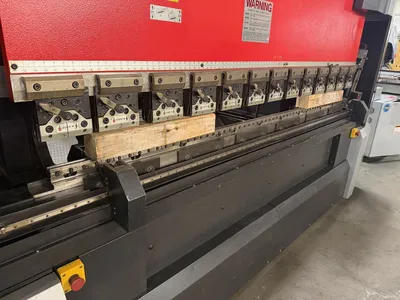

Sectionalized Amada A grip M ram one touch clamps
Full length die rail

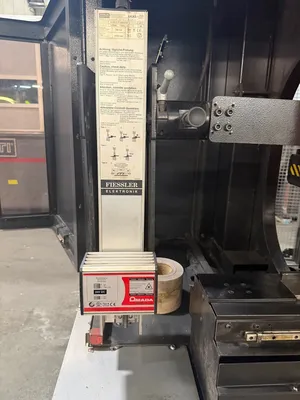

Fiessler Elektronik laser-actuated light curtain safety system
BI-S bend angle sensor
Automatic hydraulic crowning
Portable foot pedal
