USED ERMAKSAN 12' X 176 TON HYDRAULIC CNC PRESS BRAKE MODEL CNC SAP 12X176
Have one to sell?
ConditionUsed
1 available

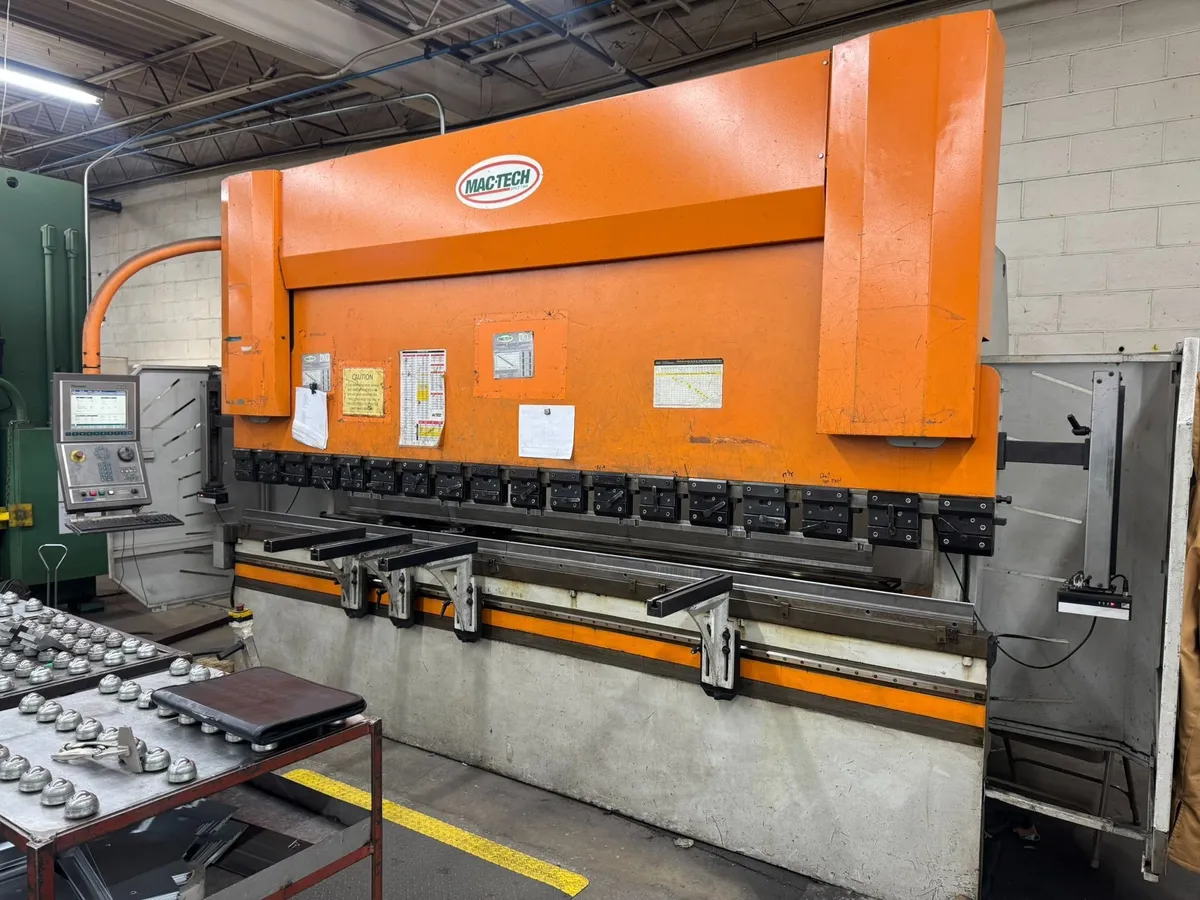

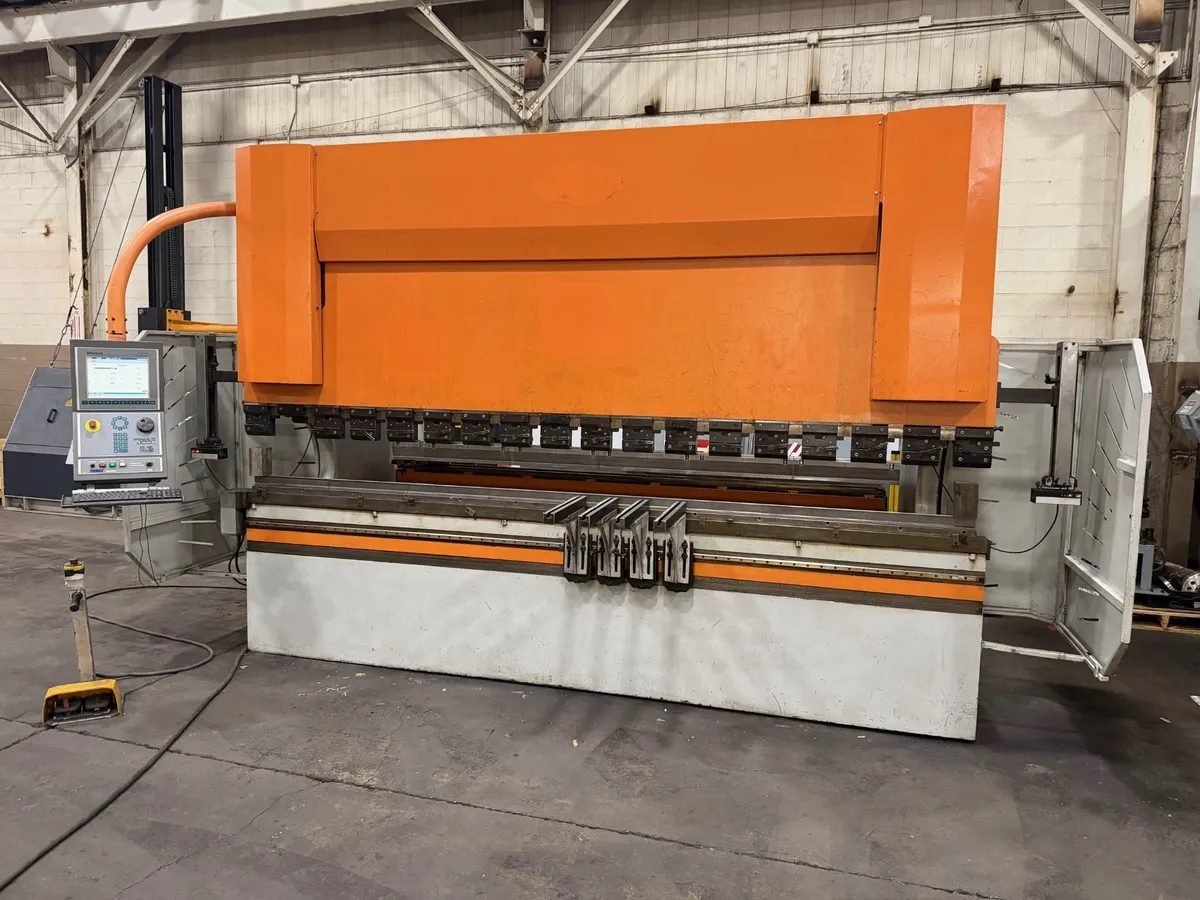

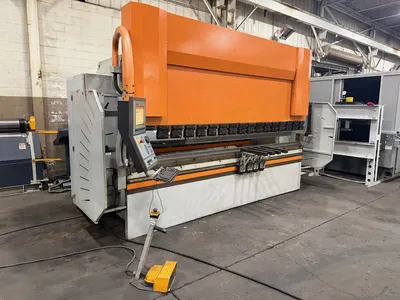

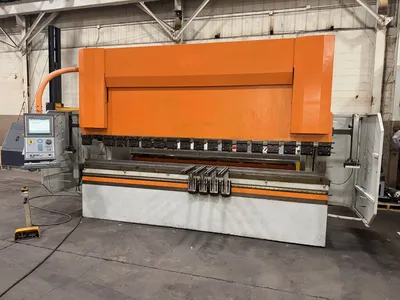

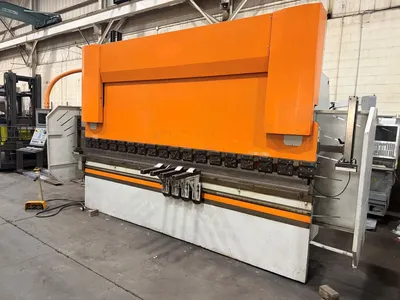

2008 Ermaksan CNC SAP 12 X 176 hydraulic press brake, featuring 176-ton capacity, 12' length, Delem DA66W CNC control, CNC crowning, and sectionalized tooling. Equipped with backgauge and laser-safe finger guard.

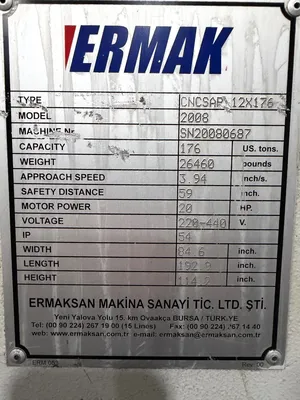

Brand: Ermaksan
Model: CNC SAP 12 X 176
Specifications:
Tonnage: 176 Tons
Overall length bed/ram: 148"
Distance between housings: 128"
Ram depth stop style: Programmable
Upacting or downacting: Downacting
Ram tilt adjustment: Powered
Number of gauging axis: 4

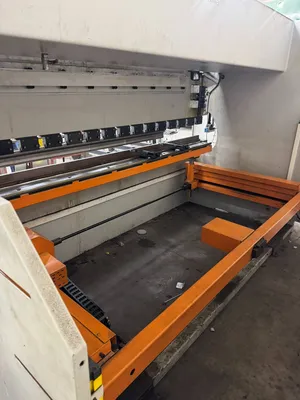

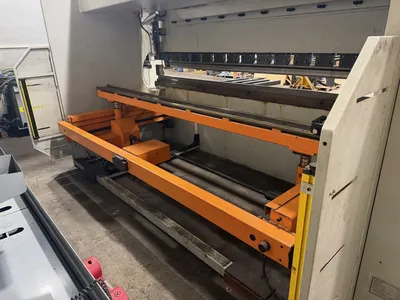

X-axis backgauge travel: 39"
Stroke length: 7”

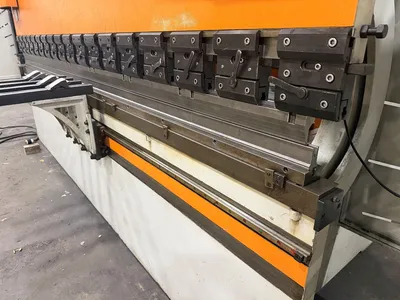

Ram clamps (sectionalized or solid bar): Sectionalized
Hydraulic or manual clamping: Manual
Number of cylinders: 2
Advance speed: 3.94 IPS
Main motor: 20 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 71" x 193" x 114"
Weight: 26,460 Lbs.

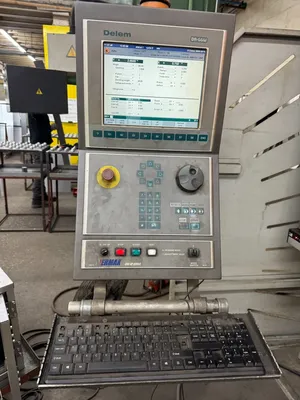

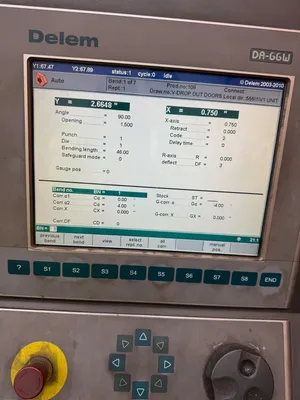

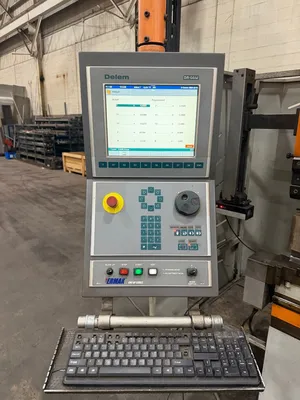

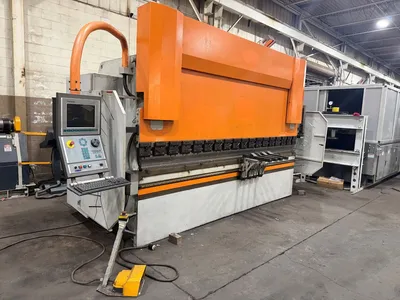

Delem DA66W CNC control
CNC crowning
Accepts American or European tooling

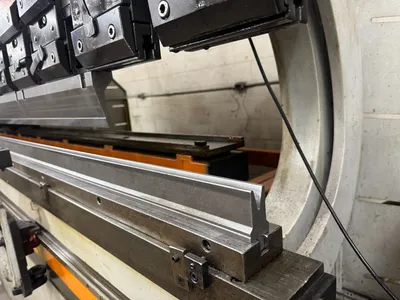

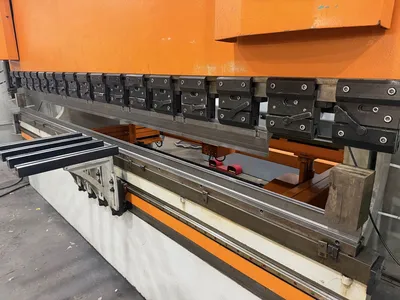

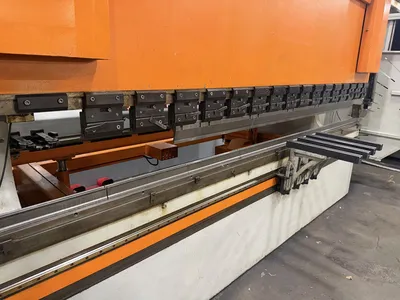

Full length sectionalized gooseneck punch
Full length sectionalized die

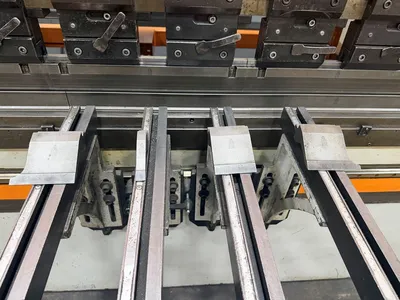

(4) Front support arms
(2) backgauge fingers
Manual Z on fingers

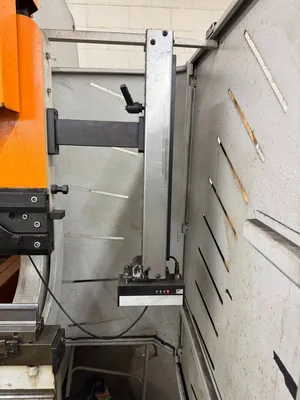

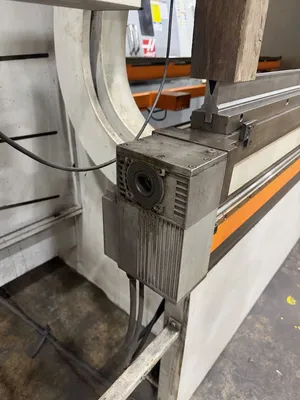

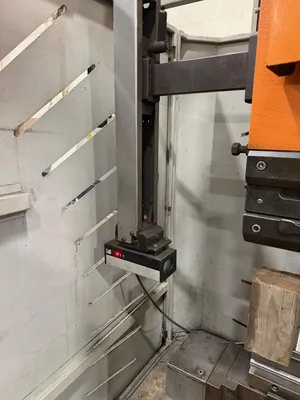

Laser safe finger guard
Auto gib lubrication
