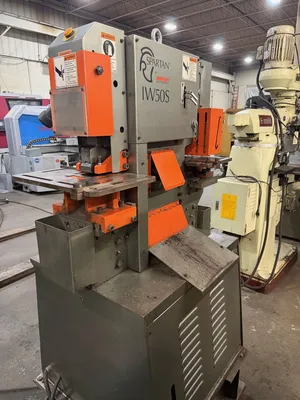

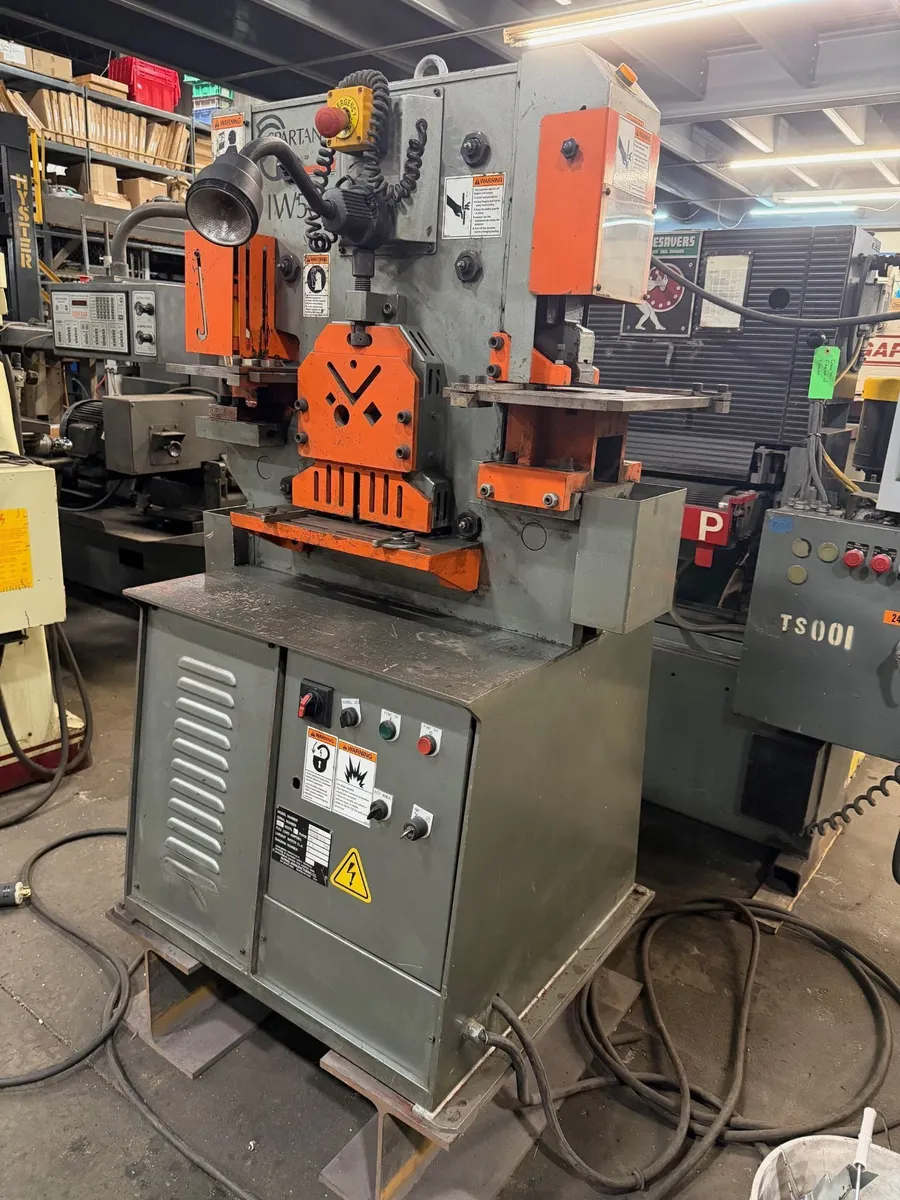

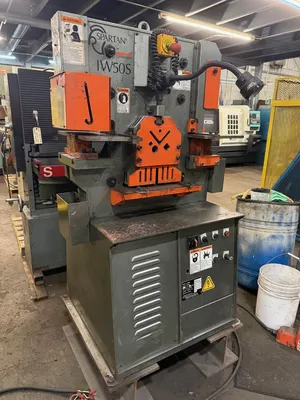

Used Spartan 50 Ton Hydraulic Ironworker Model IW-50S. Features 50-ton punch pressure, 5 work stations, 220/440V motor, and adjustable stroke. Includes scrap boxes, foot pedal, and assorted punches/dies. Compact and reliable for versatile ironworking tasks.
Brand: Spartan
Model: IW50S
Specifications: (rated on 65,000 PSI Tensile)
Work Stations: 5
Punch Pressure: 50 tons
Standard Tooling: 7/8” in 1” material
Oversize Tooling: 3-7/8” in 1/8” material (not included)
Throat Depth: 6-1/2”
Stroke Length: 1-1/8”
Cycles per Minute in ½”: 41
Punching Station Work Height: 41-1/2”
Flat Bar Shear Capacity: 12” in 3/8”
Blade Length: 12-1/4”
Angle Flange Trim: 3”
Flat Bar Shear Work Height: 31-1/2”
Angle Max. Capacity: 3” x 3” in ¼”
Angle Shear Work Height: 39-1/2”
Round Bar Capacity: 1”
Square Bar Capacity: 1” x 1”
Bar Shear Work Height: 39-1/2”
Rectangular Notching Capacity: 2” x 3-1/2” x ¼”
Work Height Above Floor: 41-3/8”
Main motor: 5 H.P.
Voltage: 220/440 Volt, 3-phase (currently wired 440 volt)
Machine Weight: 1,853 lbs.
Dimensions: 41-3/8” H x 30” W x 58-3/4” L
Scrap boxes at Punching
Adjustable Stroke Depth
Portable Full-Control Foot Pedal
Keyed Punch Holder for Shaped Tooling
Magnetic Work Light

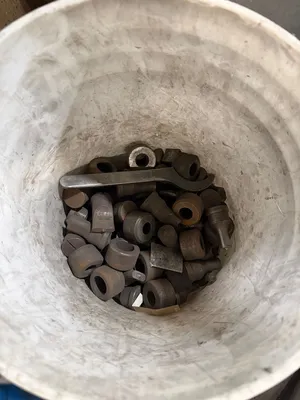

Misc. Punches and Dies
