Mitutoyo model HM-210 type B micro vickers hardness tester
Have one to sell?
ConditionUsed
1 available

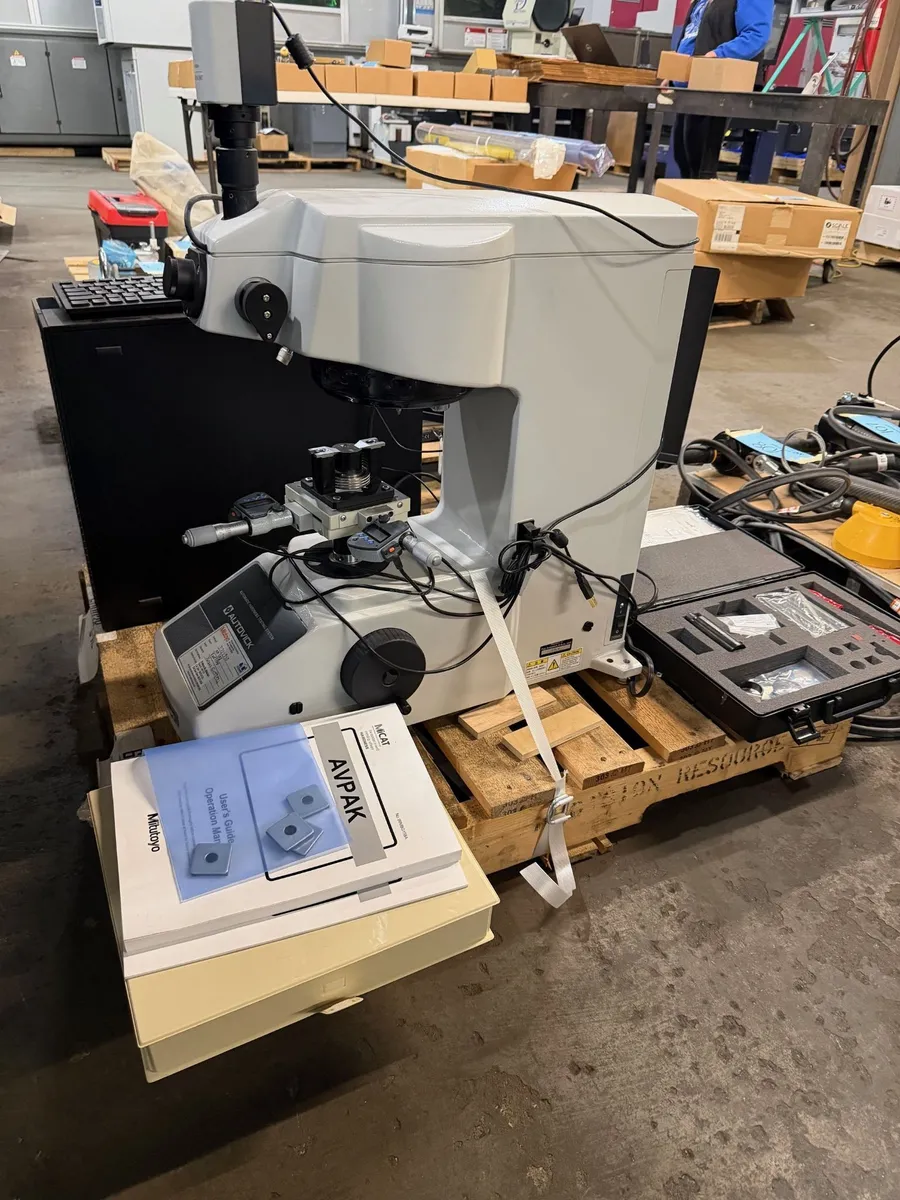

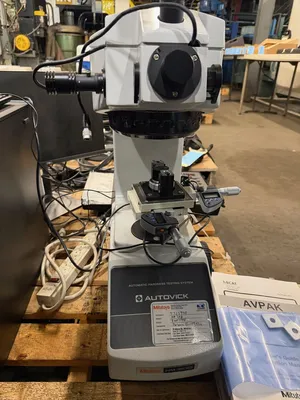

Mitutoyo HM-210 Type B micro Vickers hardness tester, used condition. Features: Vickers/Knoop hardness, automatic control, electromagnetic system, turret for auto/manual use, 50x lens, vision unit, micrometer, and Dell PC with software. Accessory kit included.
Brand: Mitutoyo
Model: HM-210 type B
Specifications:
Test method: Vickers hardness, Knoop hardness, Fracture toughness
Test force switching: Selectable by AYPAK operation
Test force generation mechanism: Electromagnetic force system (voice coil)
Test force control: Automatic system (load, retain, unload)
Contact velocity: 60um/s
Test force load time: 1-99 seconds (settable in steps of 1 sec)
Duration time of test force: 0-999 seconds (settable in steps of 1 sec)
Test force unload time: 1-99 seconds (settable in steps of 1 sec)
Turret feature: For both automatic and manual use
Indenter shaft: standard 1 piece
Indenter: Vickers
Objective lens: magnification of 50x for measurement up to 4 pieces mountable
Maximum loading weight: 6.6 Lbs (3 kg.) when using manual XY stage
Mitutoyo vision unit

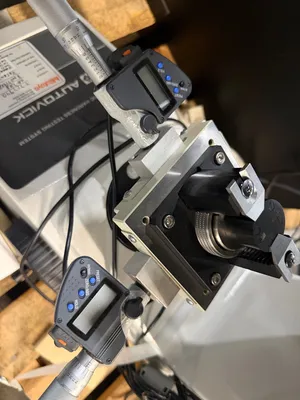

Micrometer adjustment

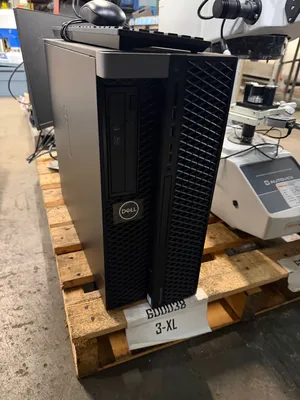

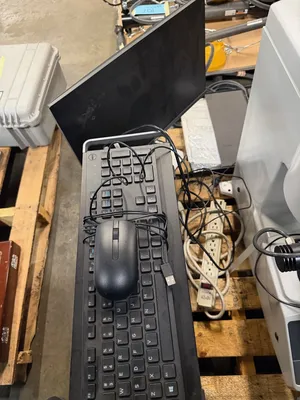

Dell PC and monitor with AVPAK10 version 2.014.0002 software

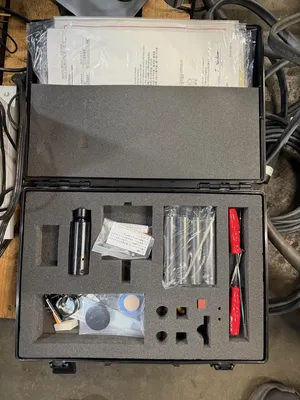

Accessory kit

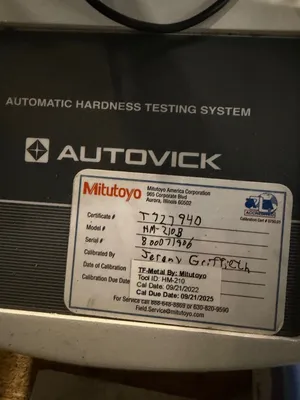

Last calibrated on 9/21/22
Like new condition!
