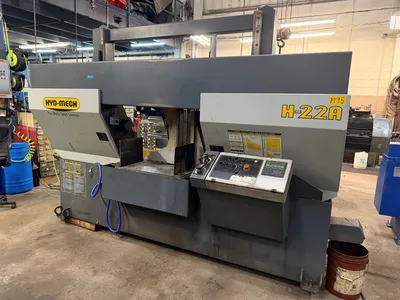

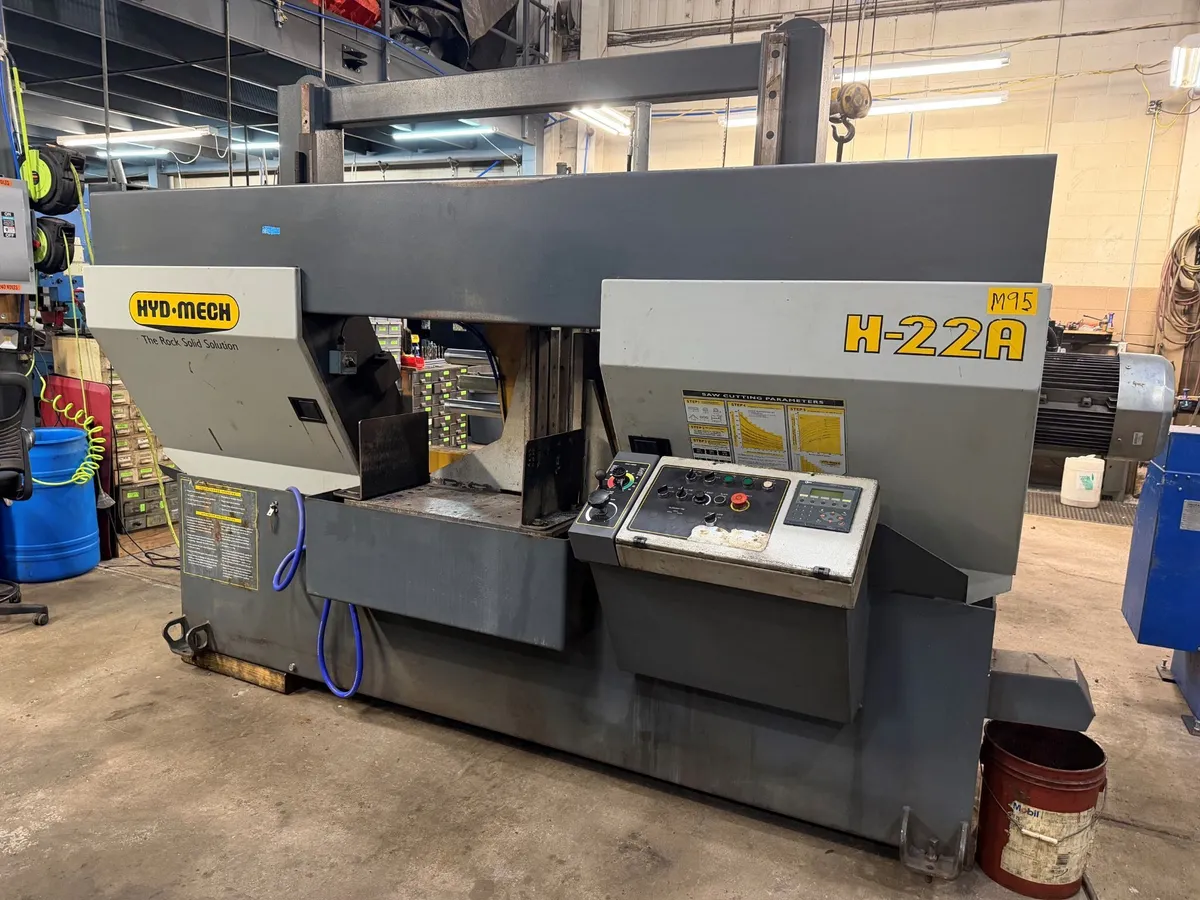

Used 2006 Hyd-Mech 22" x 22" automatic dual column horizontal bandsaw model H-22A
Have one to sell?
ConditionUsed
1 available
Used 2006 Hyd-Mech H-22A automatic dual column horizontal bandsaw with 22" capacity and 10 hp power. Features Mitsubishi PLC control, overhead bundling clamps, and hydraulic chip auger.
Brand: Hyd-Mech
Model: H-22A
Capacity: 22" x 22"
Blade size: 22'6" x 2" x .063"
Blade speed: 40 - 300 FPM (variable frequency drive)
Blade guides: Carbide
Blade wheel diameter: 27"

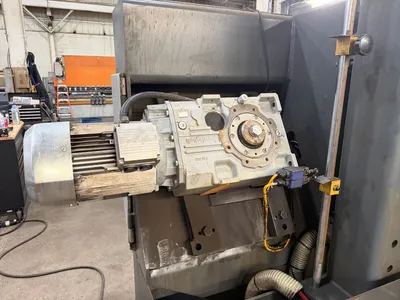

Blade drive: 10 H.P.
Hydraulic motor: 3 H.P.
Hydraulic tank capacity: 9 gallons
Coolant tank: 30 gallons
Shuttle stroke: Up to 34" single stoke (multi index up to 9x)

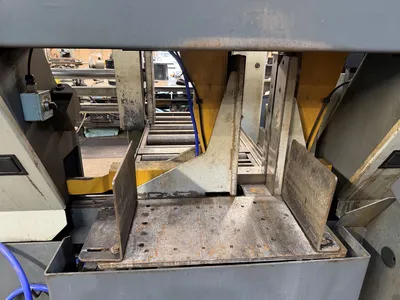

Vise control: hydraulic
Table height: 31"
Maximum work load: 15,000 Lbs.
Voltage: 480 volt 3 phase
Dimensions: 141" x 89" x 93"
Weight: 12,500 Lbs.

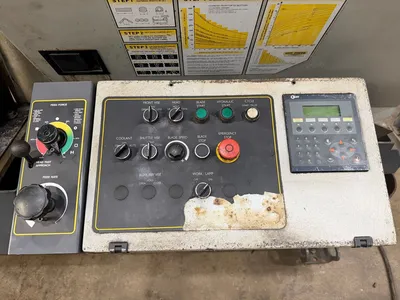

Mitsubishi PLC control
Full capacity overhead bundling clamps
Heavy duty cast iron guide arms
Hydraulic chip auger
Powered guide arm
Flood coolant
Hydraulic blade tension
Work light
Coolant wash down hose

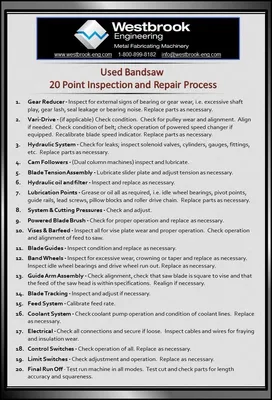

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
