USED LVD / STRIPPIT MODEL V20-1225 20 TON 34 STATION CNC TURRET PUNCH
Have one to sell?
ConditionUsed
1 available

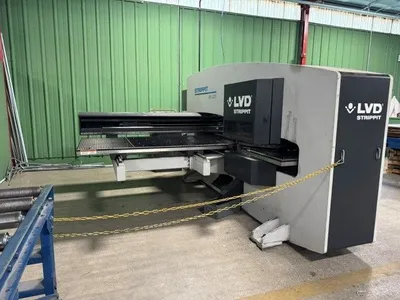

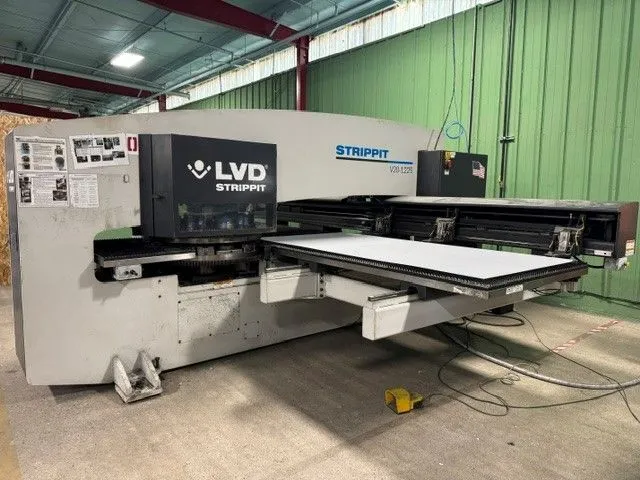

2007 LVD Strippit V20-1225 20-ton CNC turret punch. Features 34 stations, including 4 auto-index, Fanuc 108i-P control, and a servo-hydraulic ram. Max sheet size 50"x196", max thickness .250". Ideal for precision metalwork.
Brand: LVD / Strippit
Model: V20-1225
Specifications:
Punching capacity: 20 tons
Maximum sheet size: 50" x 100"
Maximum sheet size with reposition: 50" x 196"
Maximum material thickness: .250"
Turret type: Thick

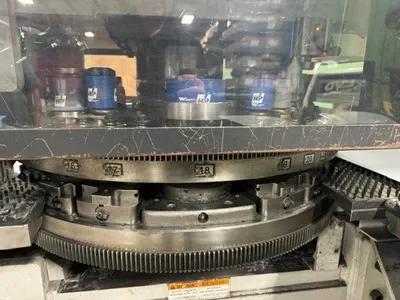

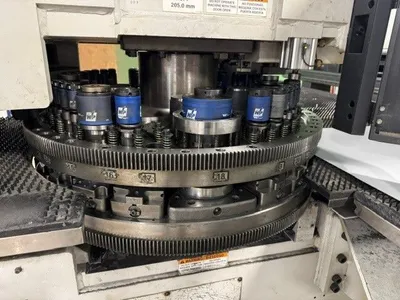

Turret stations: 34 (4 auto index stations)
Maximum hole size: 3.5"
Maximum hit rate: up to 1,000 HPM at 1mm pitch

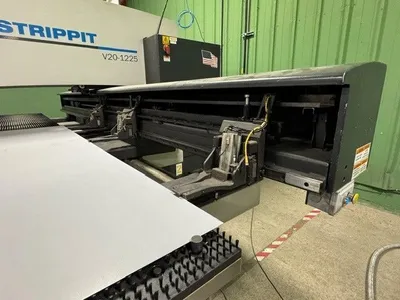

Work clamps: 3 programmable

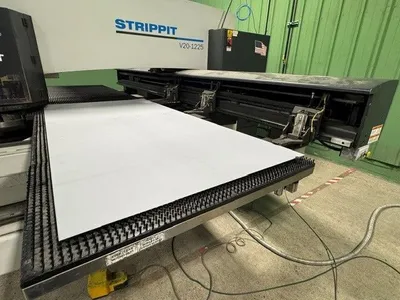

Table type: Brush
Axis drive: direct drive servo

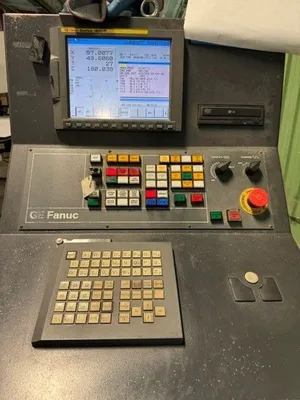

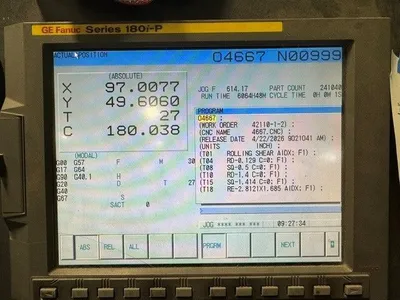

Fanuc 108i-P CNC control
(4) auto index stations
Servo-hydraulic ram with programmable stroke control
Bi-directional turret rotation for faster tool changes
Forming capabilities
Brush table to reduce material scratching
Air / oil heat exchanger
Machine sold As-Is Where-Is
Available in August 2026
