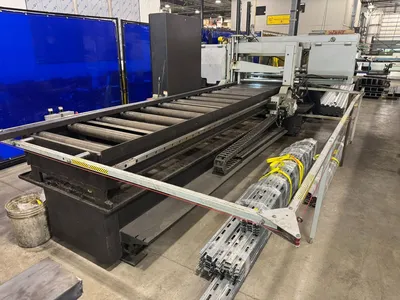

Used Hyd-Mech 20" x 30" fully automatic mitering bandsaw model M-20A-120
Have one to sell?
ConditionUsed
1 available

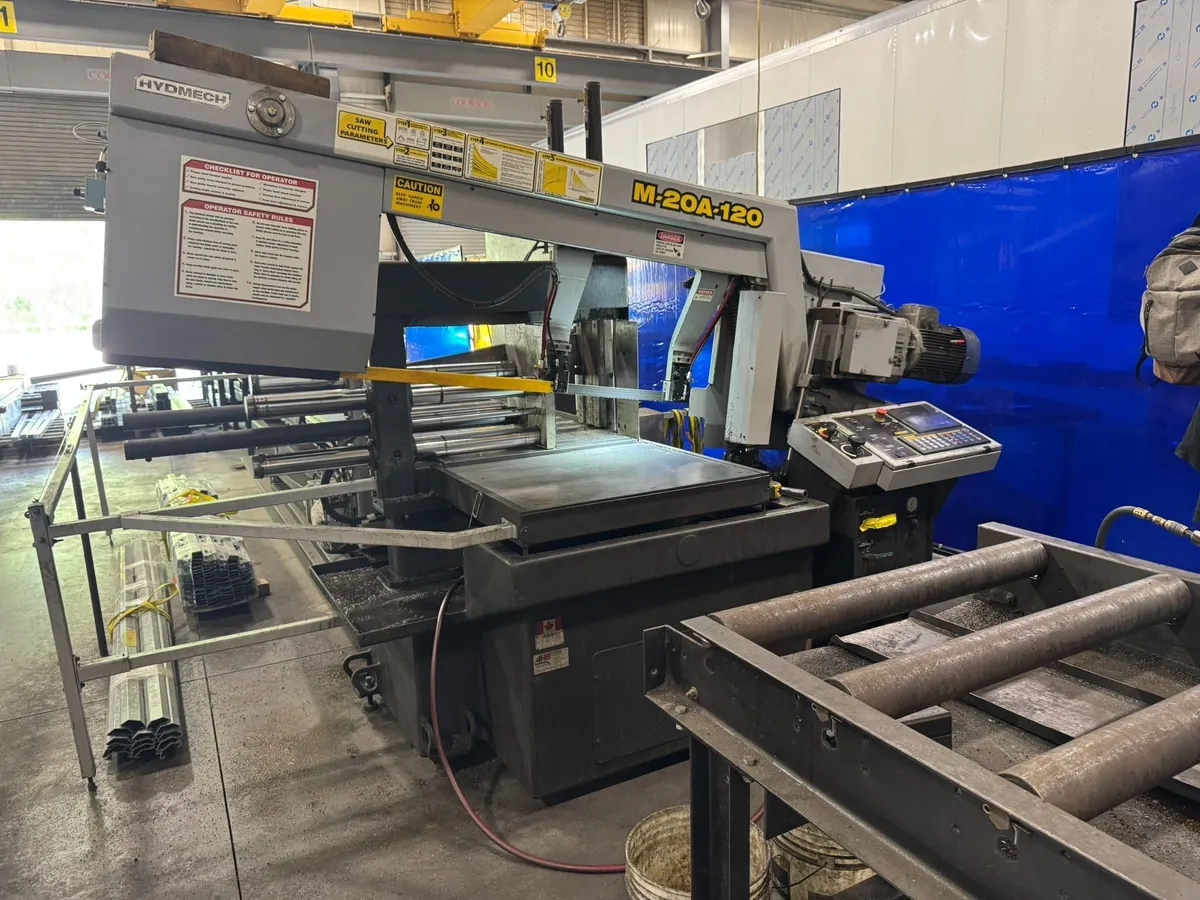

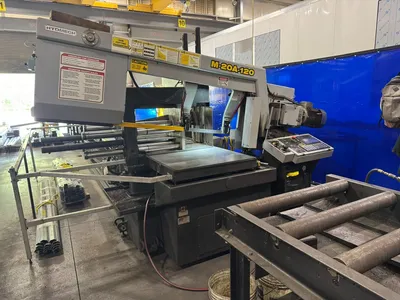

2021 Hyd-Mech M-20A-120 fully automatic mitering bandsaw. 30"x20" capacity. 10 HP with hydraulic blade tension and controlled mitering. Includes 10' barfeed, PLC 500 control, overhead bundling, and conveyors. Ideal for high-volume projects.
Brand: Hyd-Mech
Model: M-20A-120
Specifications:
Capacity @ 90 degrees: 30" wide x 20" high
Capacity @ 45 degrees: 18" wide x 20" high
Capacity @ 30 degrees: 12" wide x 20" high
Blade: 20'6" x 1-1/2" x .050"
Blade tension: Hydraulic
Blade speed: 70 - 350 FPM (variable frequency drive)
Blade guides: Carbide
Blade wheel diameter: 22"

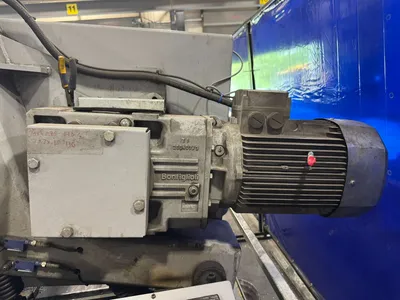

Blade motor: 10 H.P.
Hydraulic motor: 3 H.P.
Servo motor: 2.7 H.P.
Hydraulic tank: 11 gallons
Vise control: Hydraulic
Shuttle stroke: 0-120" (multi stroke up to 9x)
Table height: 35"
Maximum workload: 8,000 Lbs.
Voltage: 480 volt 3 phase
Dimensions: 152" x 268" x 90" (machine only)
Weight: 12,700 Lbs.
Programmable hydraulic mitering head to 30 degrees

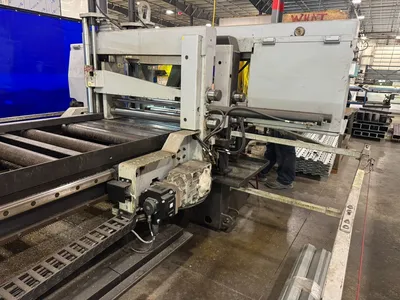

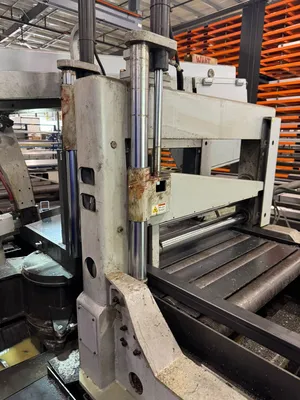

10' barfeed

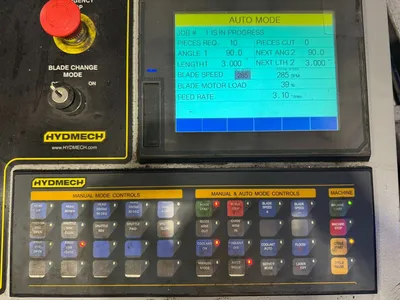

PLC 500 control for manual or automatic operation
Full capacity overhead bundling

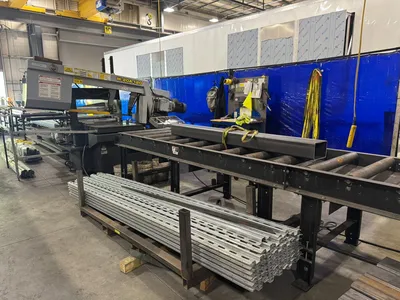

(4) 10' sections of type II heavy duty manual roller conveyor
Positive hydraulic downfeed
Powered blade chip brush
Chip auger
Laser light
Work light
Available August 2026
