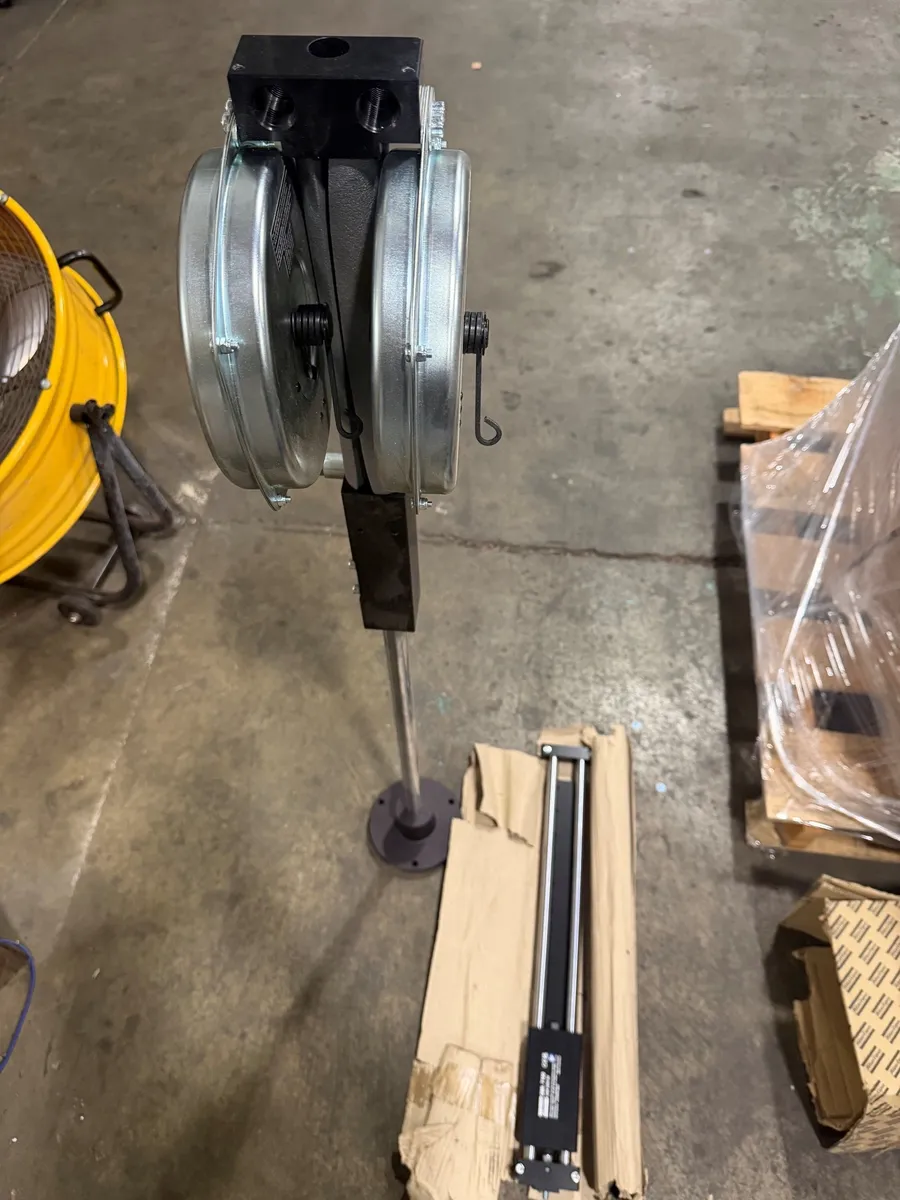

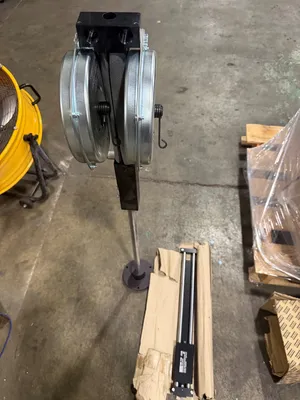

NEW ATLAS COPCO LINEAR TORQUE REACTION ARM AND TOOL BALANCER MODEL SML-T100 / RIL22C

Brand: Atlas Copco
Model: SML-T100 / RIL22C

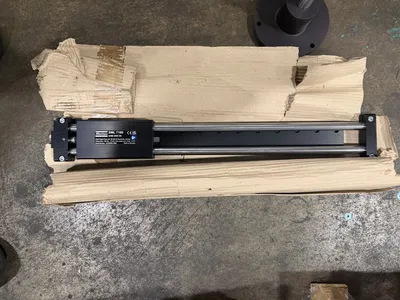

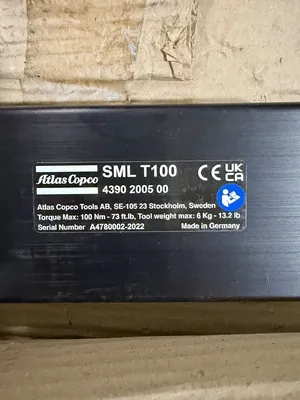

SML-T100 Specifications:
Maximum Torque Capacity: 100 Nm (73.8 ft-lb)
Maximum Tool Weight: 6 kg (13.2 lb)
Vertical Stroke: 515 mm (20.3 in)
Horizontal Stroke: 395 mm (15.6 in)
Maximum Reach: 914 mm (36.0 in)
Minimum Width: 255 mm (10.0 in)
Overall Height: 1116 mm (43.9 in)
Weight of Arm: 18.6 kg (41 lb)
Intended Use: Torque reaction arm for electric/pneumatic nutrunners and screwdrivers

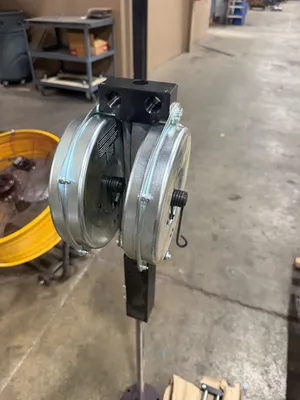

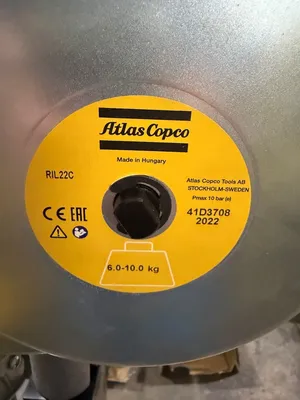

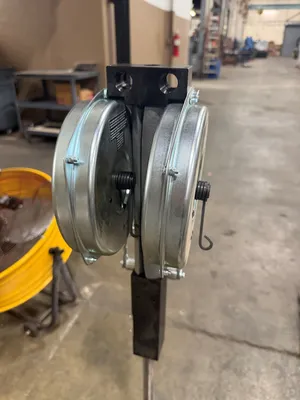

RIL22C balancer specifications:
Load Range: 6.0 – 10.0 kg (13.2 - 22 LBS.)
Maximum Pressure: 10 bar (145 psi)

This balancer is intended to suspend a tool weighing between 6 and 10 kg, making the tool feel nearly weightless to the operator while the SML-T100 absorbs the reaction torque.

Intended uses:
Atlas Copco Tensor tools
Atlas Copco ST and ETD nutrunners
Pneumatic nutrunners
DC electric torque tools up to 100 Nm reaction torque and 6 kg tool weight
