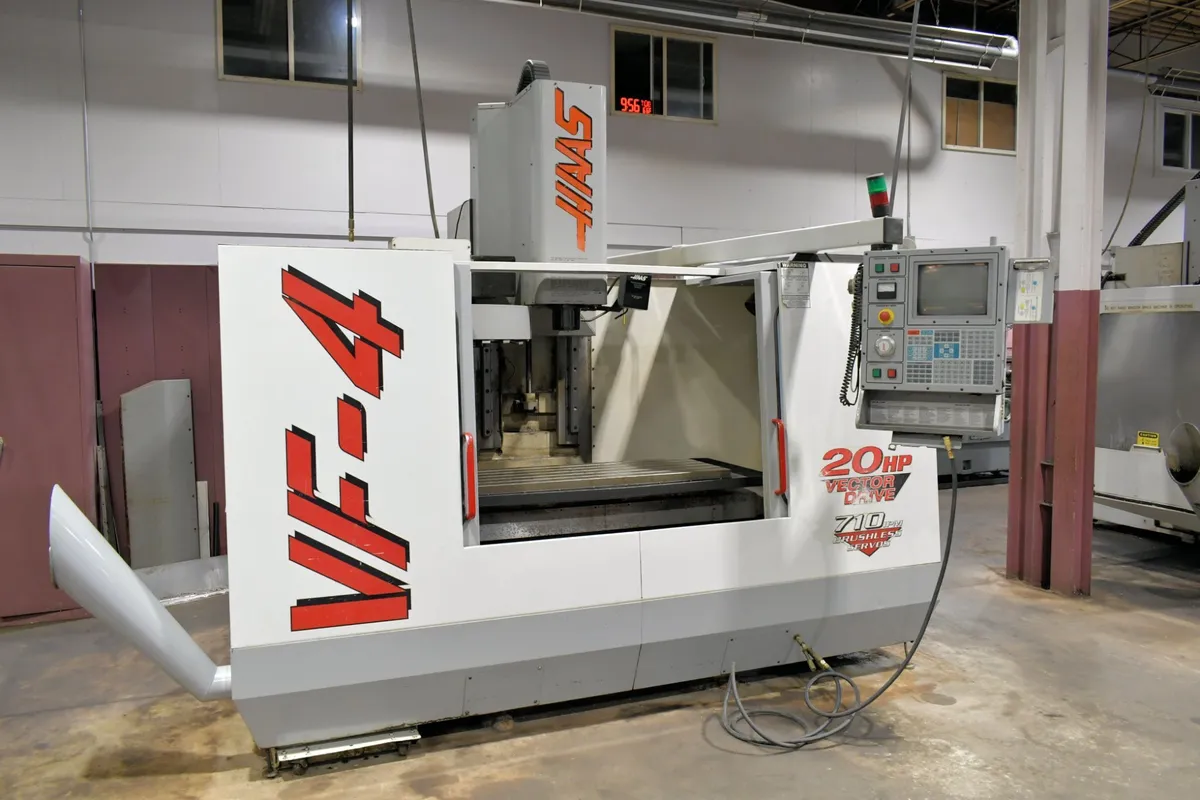

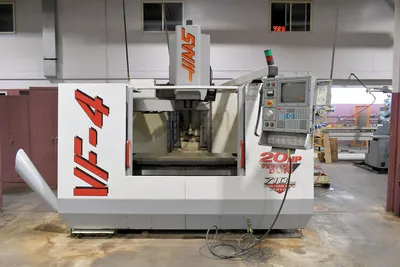

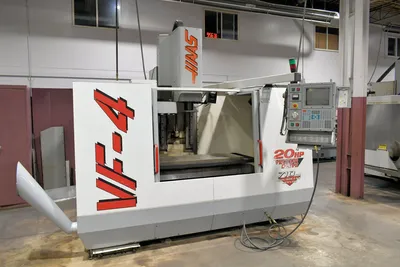

USED HAAS 50" X 20" VERTICAL CNC MACHINING CENTER MODEL VF-4
Have one to sell?
ConditionUsed
1 available
Boost your productivity with this used 1998 HAAS VF-4 Vertical CNC Machining Center. Features a 50" x 20" x 25" travel, 20 ATC, 7,500 RPM spindle, 30 hp motor, and CAT 40 taper. Equipped with chip auger, programmable coolant, and more.
Brand: Haas
Model: VF-4
Specifications:
X-axis travel: 50"
Y-axis travel: 20"
Z-axis travel: 25"

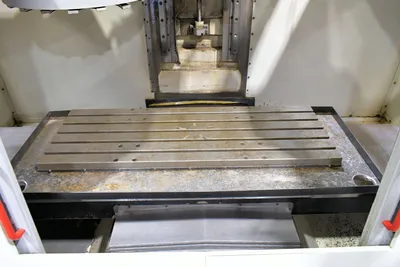

Table size: 52" x 18"
Table capacity: 3,500 Lbs.

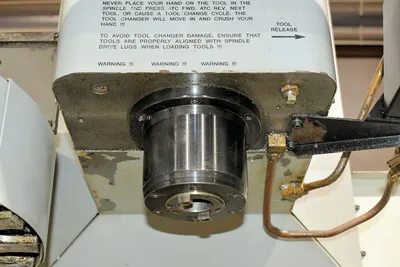

Spindle taper: CAT 40
Spindle speed: 7,500 RPM
Rapid traverser: 710 IPM (X/Y/Z)
Max. cutting feed rate: 650 IPM
Main motor: 20 H.P. vector drive
Voltage: 230 volt 3 phase
Dimensions: 118" x 110" x 117"
Weight: 12,500 Lbs.

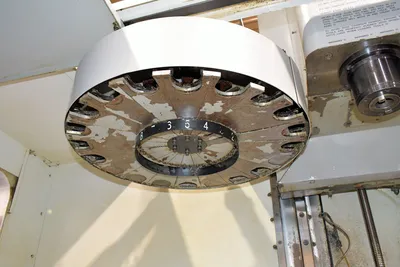

20 position umbrella type automatic tool changer.

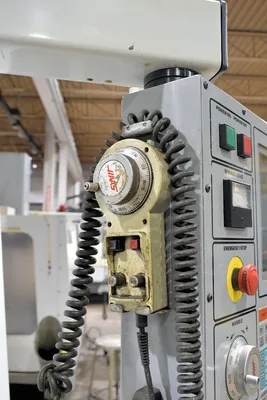

Remote jog handwheel.

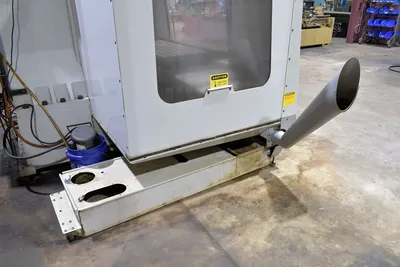

Chip auger.
Programmable coolant.
Rigid tapping.
4th axis pre-wired
2-speed gearbox
USB drive
Machine sold As-Is Where-Is
