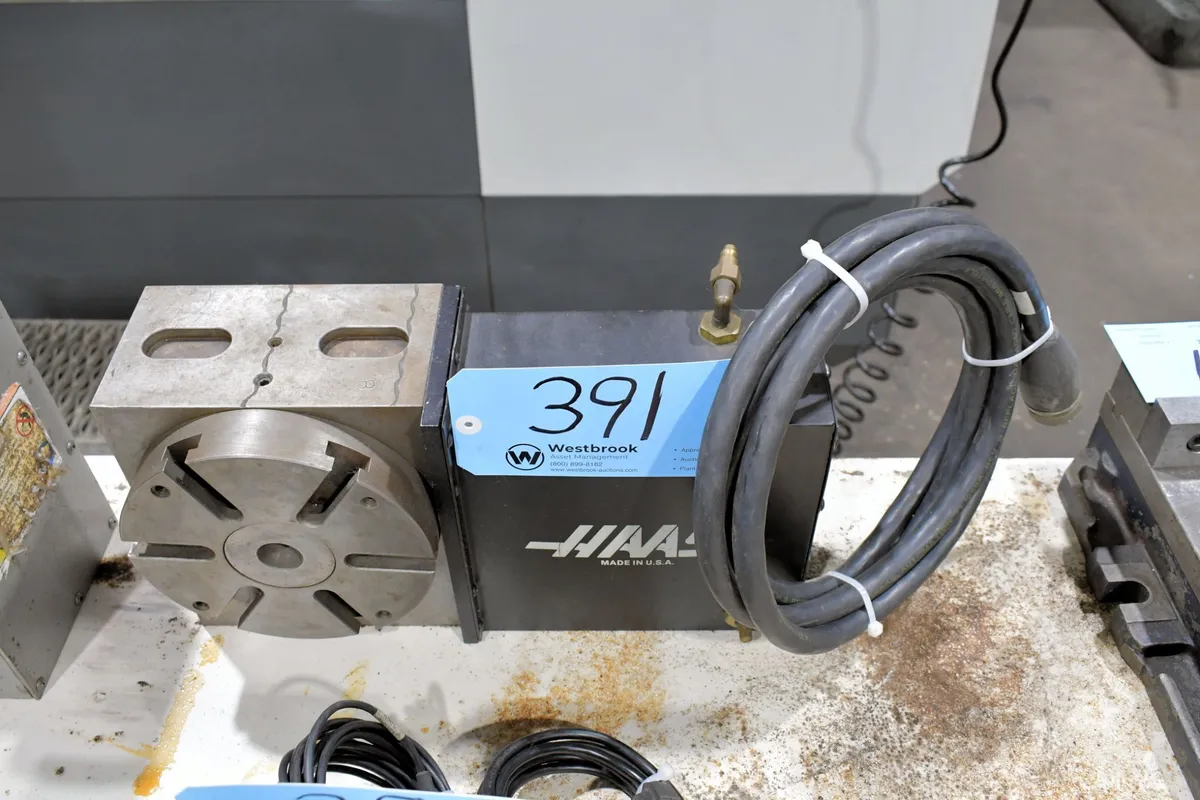

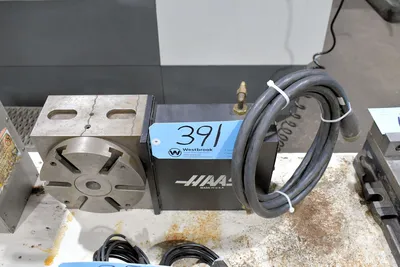

HAAS CNC ROTARY TABLE WITH SERVO CONTROL MODEL HRT-7
Have one to sell?
ConditionUsed
1 available
HAAS HRT-7 CNC rotary table with 7" platter diameter, servo control, and versatile mounting options. Features precise 0.001° indexing, ±15 arc-sec accuracy, RS-232, M-code interface, and continuous rotation. Ideal for complex machining needs.
Brand: Haas
Model: HRT-7
Specifications:
Platter Diameter: 7"
Table Type: CNC servo rotary table (4th axis)
Control: Haas Servo Control (stand-alone or CNC interface)
Indexing Resolution: 0.001°
Positioning Accuracy: Approximately ±15 arc-sec
Repeatability: Approximately 10 arc-sec
Maximum Programmable Rotation: 999.999° per command
Mounting: Horizontal or vertical
Drive: Precision worm gear with AC servo motor
Through Hole: Approximately 1"
Gear Ratio: Approximately 90:1
Power: 115 VAC, single phase
Weight: Approximately 100-120 lbs.
Maximum Speed: Approximately 50°/sec
Stand-alone programmable controller
RS-232 communication
M-code interface to CNC machines
Clockwise/counterclockwise rotation
Continuous rotation capability
Absolute positioning
Programmable feed rates
Home position return
Incremental or absolute programming
Stores multiple indexing programs
