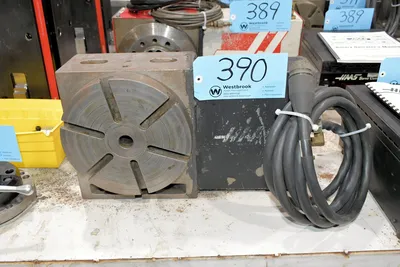

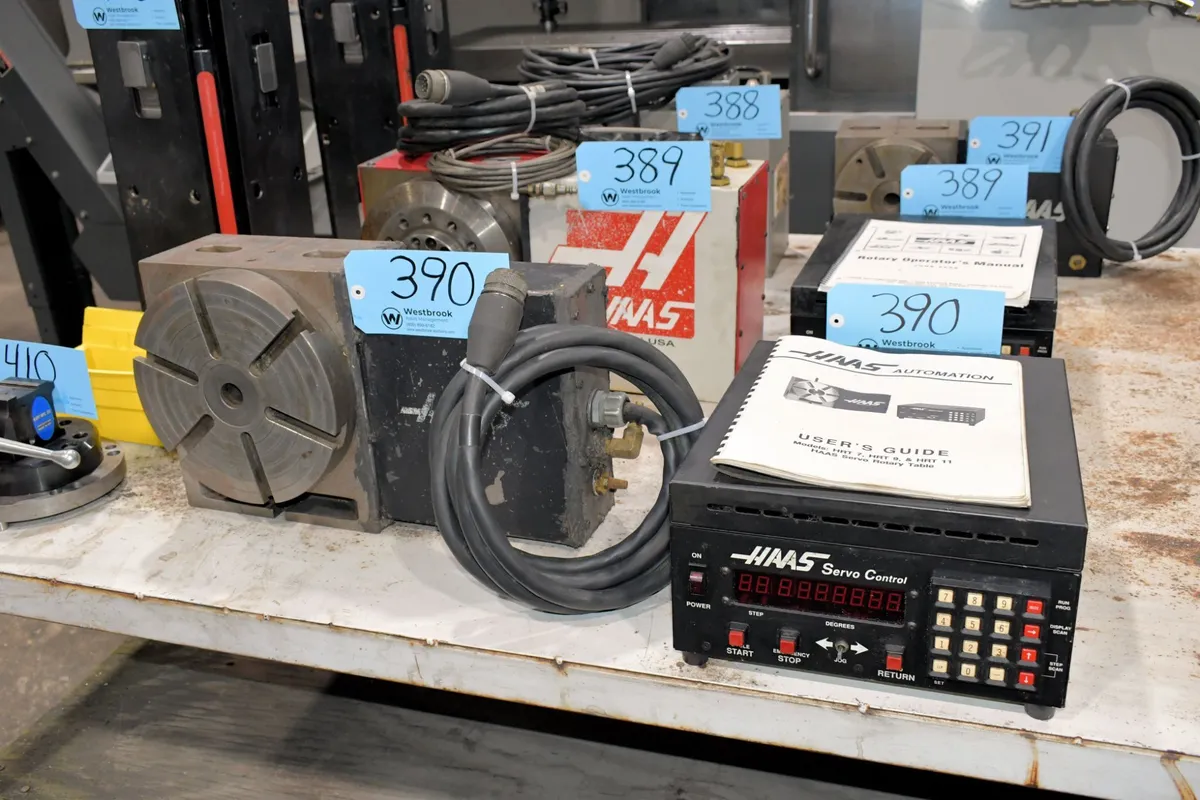

Brand: Haas
Model: HRT-9
Specifications:
Platter Diameter: 9"
Table Type: CNC rotary table (4th axis)

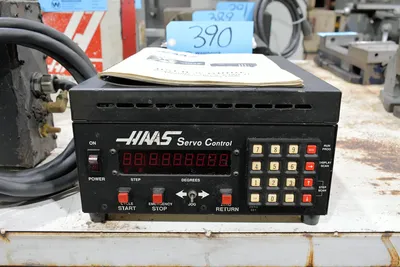

Control: Haas Servo Control (stand-alone or CNC interface)
Mounting: Horizontal or vertical
Indexing Resolution: 0.001°
Positioning Accuracy: Approximately ±15 arc-sec
Repeatability: Approximately 10 arc-sec
Maximum Programmable Rotation: 999.999°
Drive: Precision worm gear with AC servo motor
Through Hole: Approximately 1"
Worm Gear Ratio: Approximately 90:1
Maximum Speed: Approximately 50°/sec
Power: 115 VAC, single phase
Weight: Approximately 180–220 lbs.
Stand-alone programmable indexing
M-code interface to CNC machines
RS-232 communications
Clockwise/counterclockwise rotation
Absolute and incremental positioning
Continuous rotation capability
Programmable feed rates
Home return function
Multiple stored indexing programs
This equipment has been sold. Similar equipment available now is shown below.
