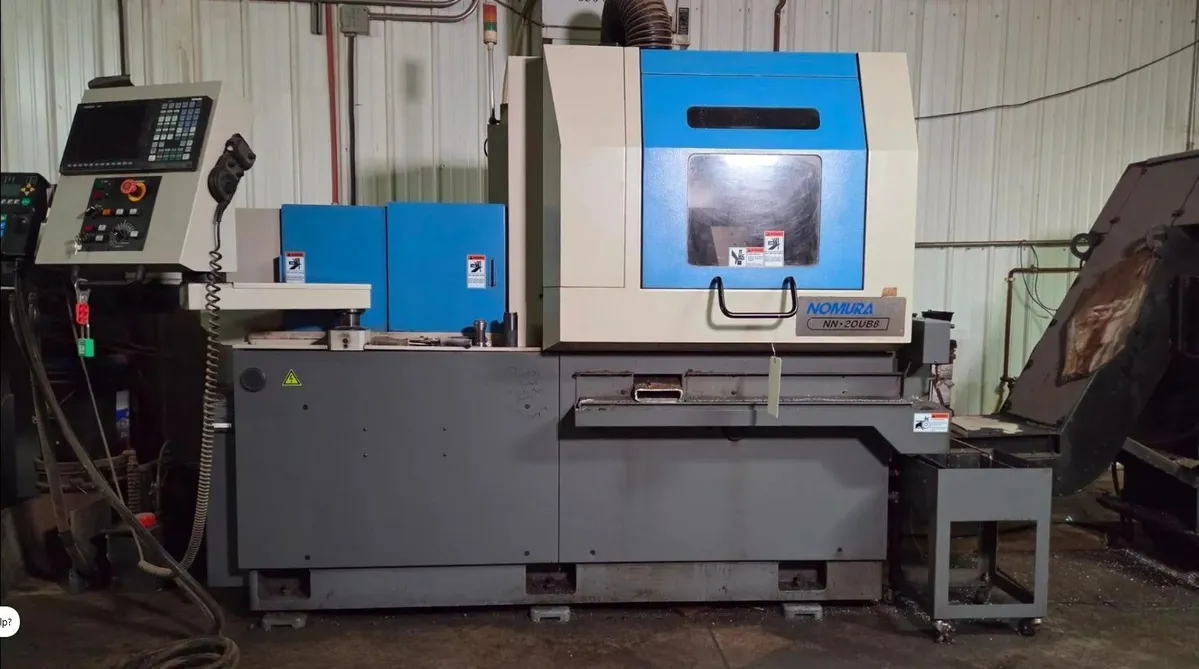

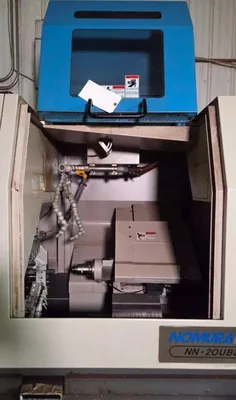

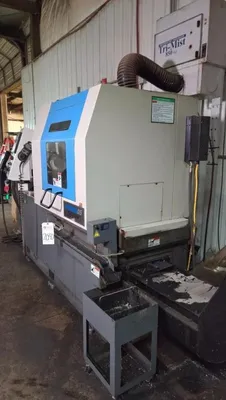

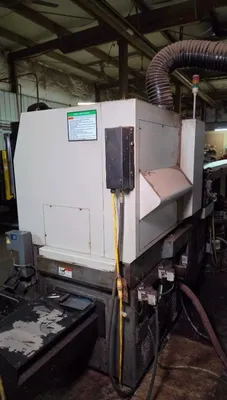

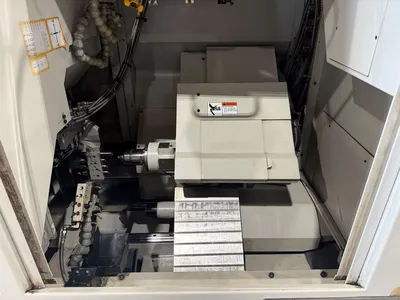

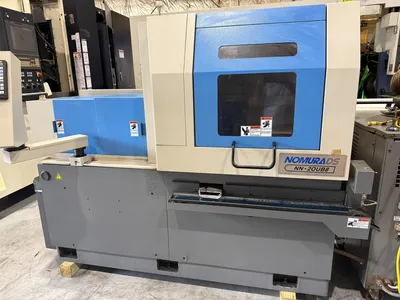

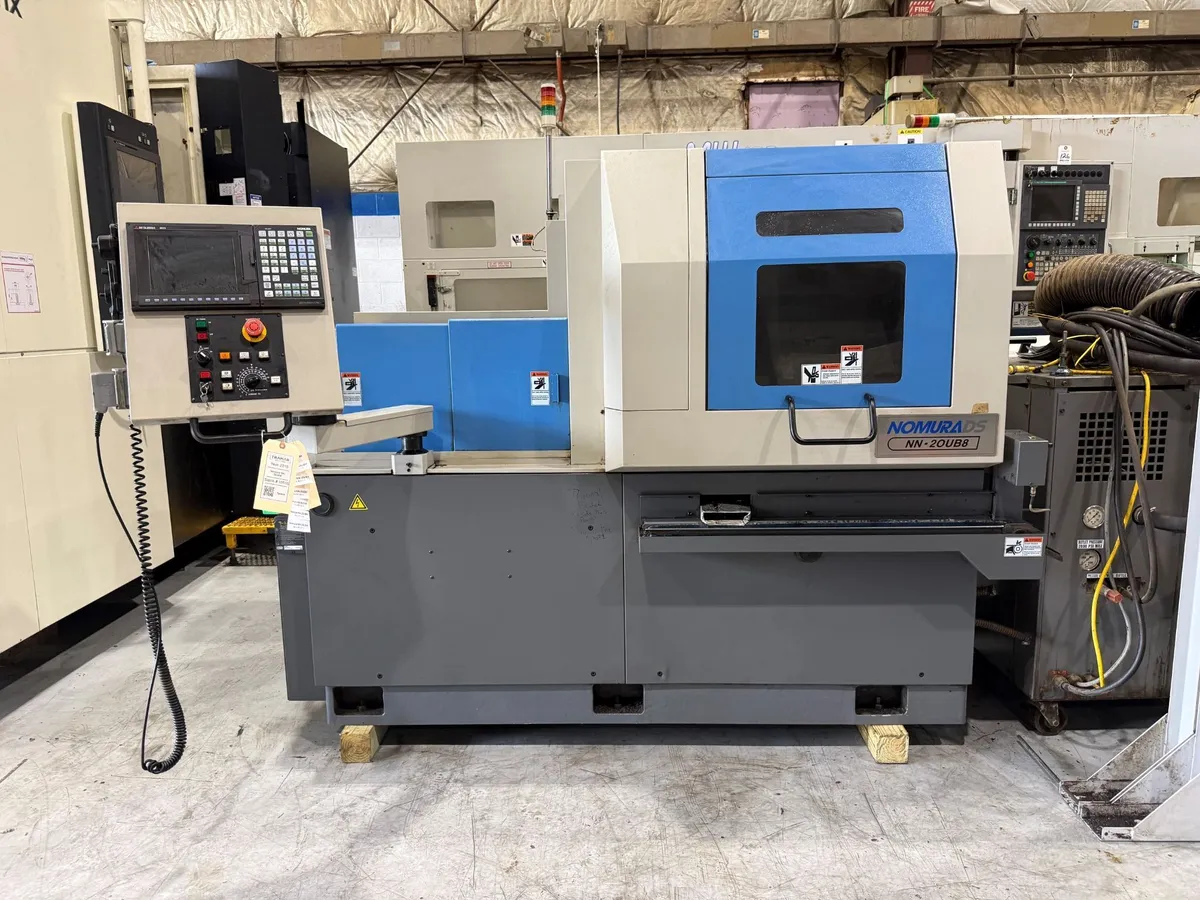

USED NOMURA .787" X 7.87" AUTOMATIC SWISS TYPE CNC LATHE MODEL NN-20UBB
Have one to sell?
ConditionUsed
1 available

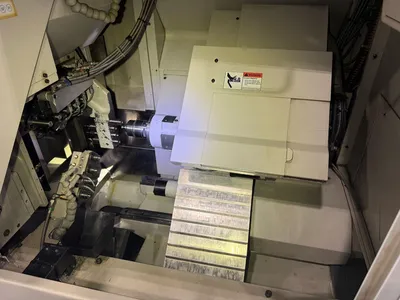

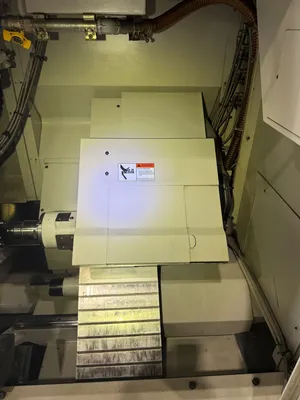

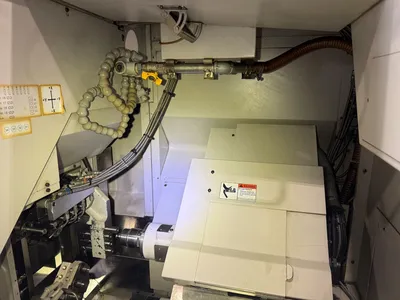

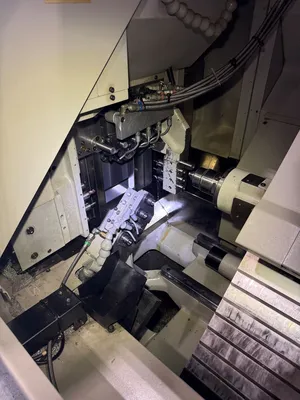

Explore precision with the used 2015 Nomura NN-20UB8 automatic Swiss-type CNC lathe. Featuring a 0.787" turning diameter, 7-axis control, live tooling, sub spindle, and 10,000 RPM max speed. Includes Mitsubishi CNC control and LNS bar feeder.
Brand: Nomura

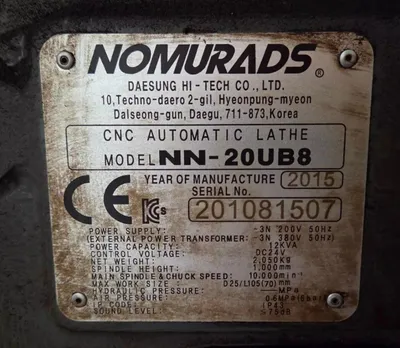

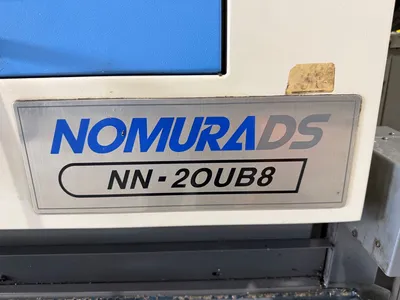

Model: NN-20UB8
Specifications:
# of axis: 7
Max. turning length: 7.87" (200mm)
Turning diameter: 0.79" (20mm)
Bar capacity: 0.79" (20mm)

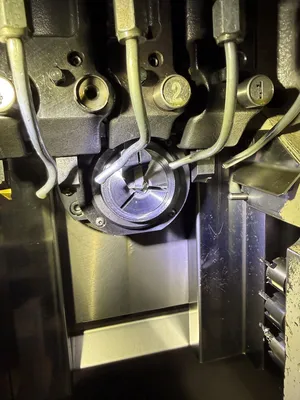

Main spindle through hole: 0.79" (20mm)
Back spindle chucking diameter: 0.79" (20mm)
Max. frontal drill diameter: 0.39" (10mm)
Max. frontal drill length: 1.57" (40mm)
Max. parts unloading length: 4.13" (105mm)
Spindle speed: 10,000 RPM
Main motor: 3 H.P.
Live tooling speed: 6,000 RPM
Live tooling motor: 1.20 H.P. (1 KW)
Sub spindle speed: 6,000 RPM
Sub spindle motor: 1 H.P.
Dimensions: 85" x 41" x 67"
Weight: 4,600 Lbs.

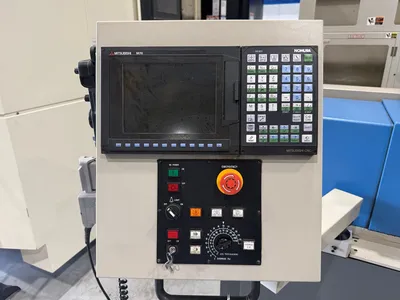

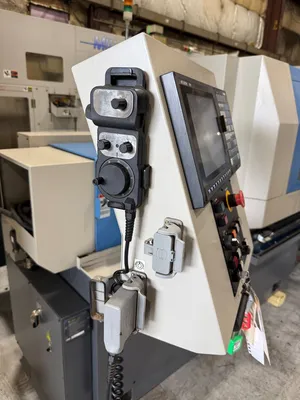

Mitsubishi M70 CNC control

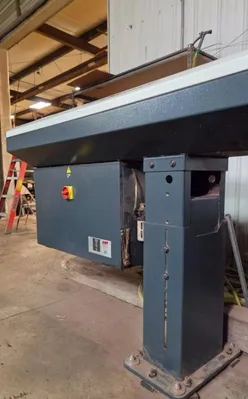

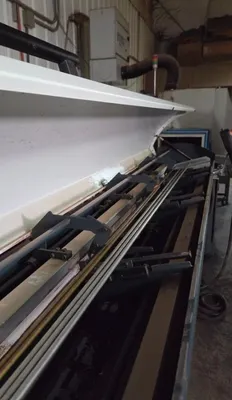

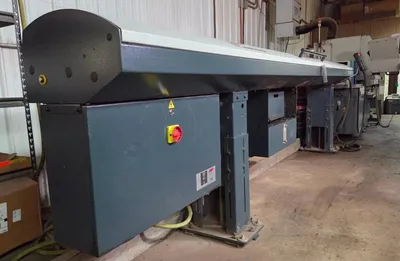

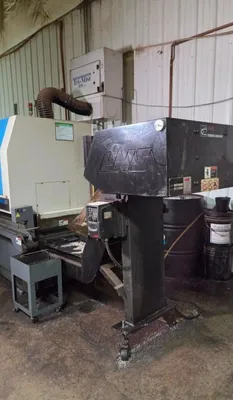

LNS Alpha ST320 12' bar feeder
Chip collector
Tri-Mist mist collector

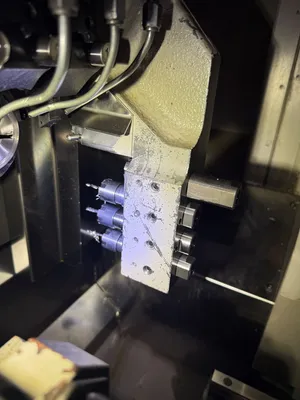

Static tool holders

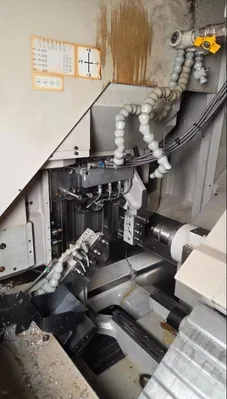

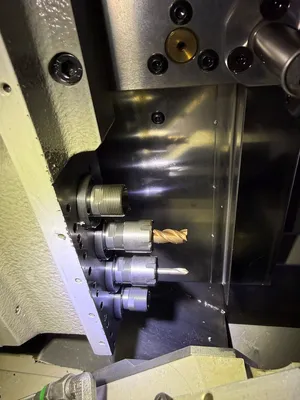

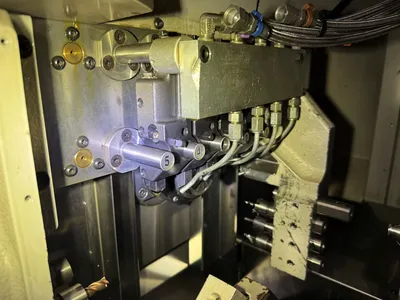

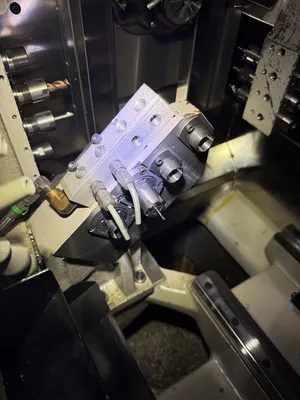

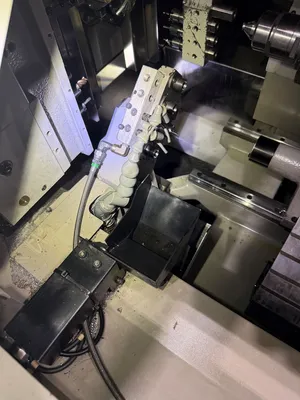

Live tool holders
