USED 12' X .787" LNS MAGAZINE TYPE BAR LOADER MODEL ALPHA ST320 S2
Have one to sell?
ConditionUsed
1 available

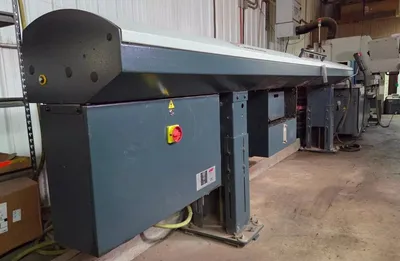

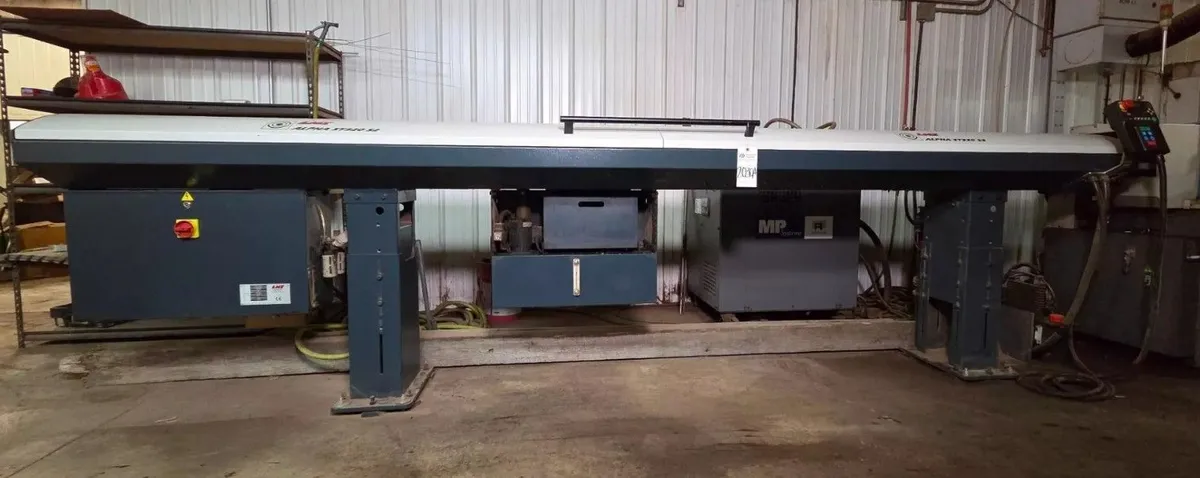

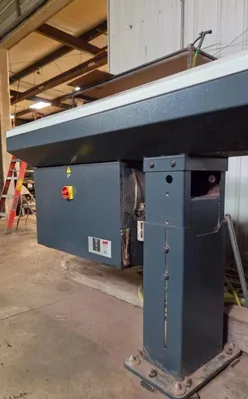

Used 2016 LNS Magazine Type Bar Loader Model Alpha ST320 S2 with 12.6' capacity and .787" bar diameter. Features servo-controlled feeding, automatic bar loading, and hydrodynamic support. Designed for Swiss or small fixed-headstock CNC lathes
Brand: LNS
Model: Alpha ST320-S2
Specifications:
Bar diameter: .11" - .787" (3-20mm)
Max. bar length: 147" (3,734mm)
Min. bar length: 39.4" (1,000mm)
Min. remnant length: 15.75" (400mm)

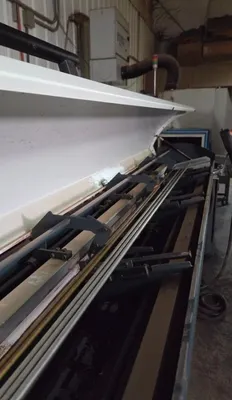

Loading system: Enclosed lateral gravity magazine
Magazine capacity: 10.6" (270mm) tray width
Approx. magazine capacity: 13 bars @ 20mm, 16 bars @ 16mm, 22 bars @ 12mm
Drive system: Servo motor with chain drive
Guide system: Hydrodynamic guide channel
Front rest: manual
Bar selection: Automatic
Loading time: Approx. 30-40 seconds per bar
Maximum feed rate: Over 328 ft/min (100 m/min)
Pneumatic pressure: 72-90 psi (5-6 bar)
Air consumption: less than 10 liters per loading cycle
Dimensions: 183" x 28" x 46"
Weight: 1,200 Lbs.
Hydrobar hydronamic bar support
Handheld pendent control
Servo controlled feeding
Automatic remnant detection
Automatic bar loading
Compatible with both left- and right-hand loading configurations
Designed for Swiss-style and small fixed-headstock CNC lathes
