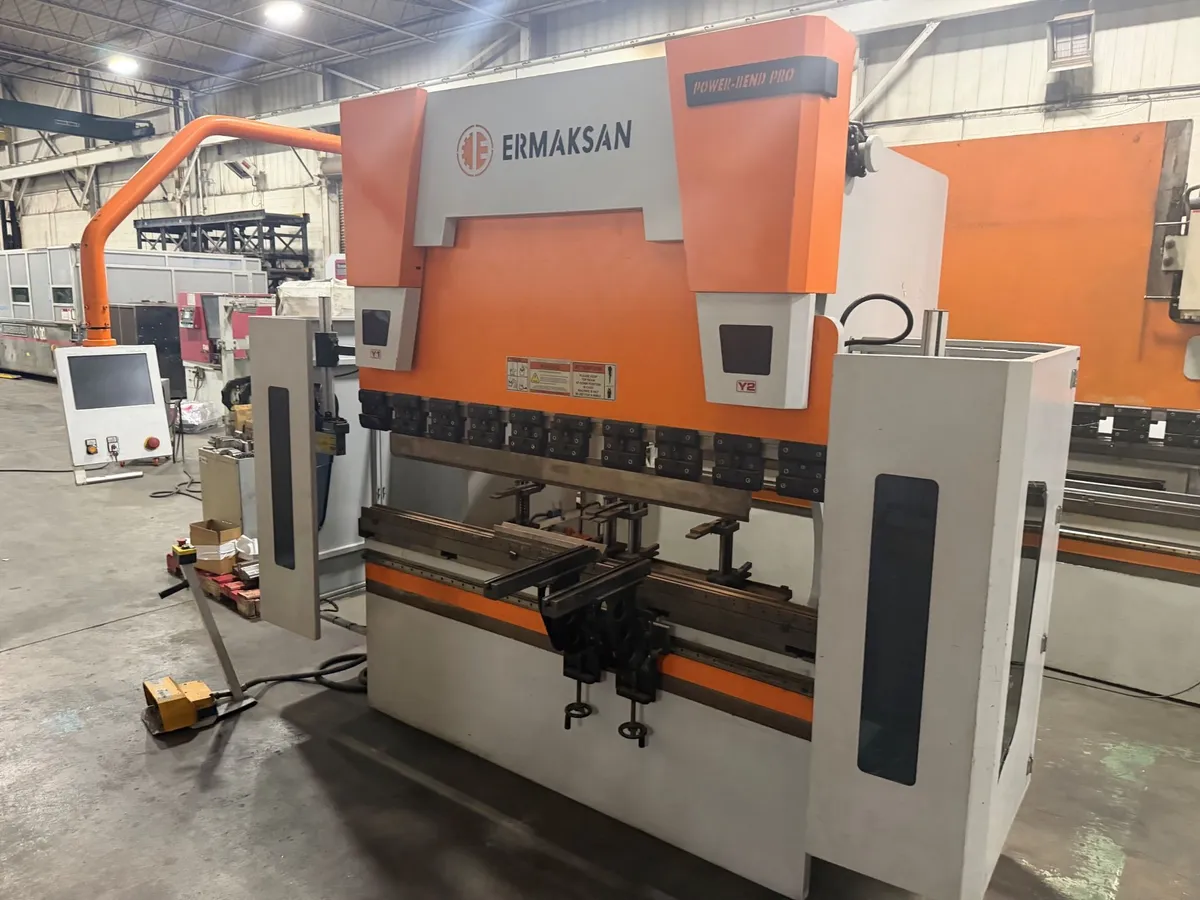

USED ERMAK POWER BEND PRO 83" X 66 TON HYDRAULIC 3 AXIS CNC PRESS BRAKE
Have one to sell?
ConditionUsed
1 available

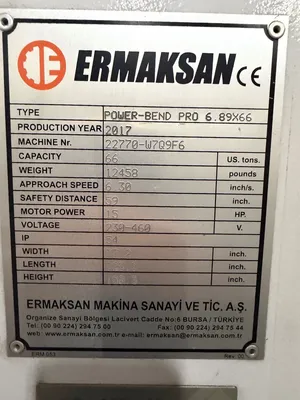

2017 Ermak Power Bend Pro 83" x 66-ton CNC Press Brake. Features 3-axis CNC, Cybelec CybTouch 12, Heidenhein scales, and Siemens electronics. Includes synchronized hydraulics, safety systems, and tooling.
Brand: Ermak
Model: Power Bend Pro 2100 x 66
Specifications:
Bending length: 83"
Tonnage: 66 Tons
Distance between housings: 66.9"
Free down speed: 6.30 IPS
Bending speed: .55 IPS
Return speed: 6.5 IPS
Stroke: 10.8"
Throat depth: 16.1"
Working height: 35.4"

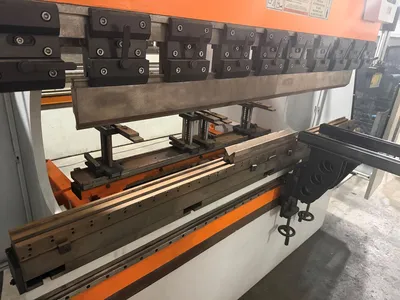

Ram clamps: sectionalized quick clamps

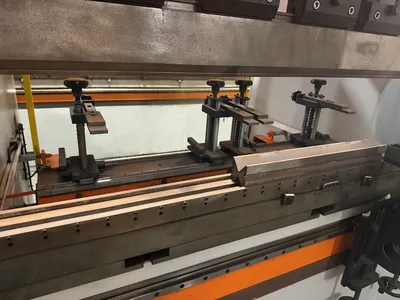

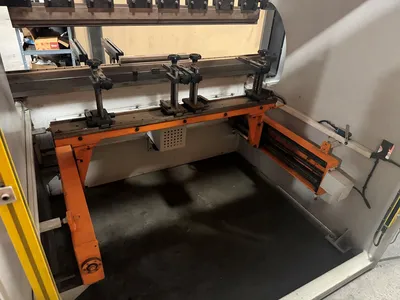

Backgauge stroke: 31.5"
Number of backgauge fingers: 4
Main motor: 15 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 128" x 77" x 109"
Weight: 12,458 Lbs.
Cybelec CybTouch 12 touchscreen CNC control
3-axis CNC (Y1, Y2, X)
Heidenhein linear scales

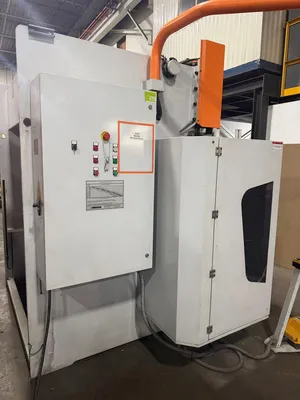

Siemens electronics
Synchronized hydraulic system
Fiessler laser safety system
Portable foot pedal
Rear and side safety guards

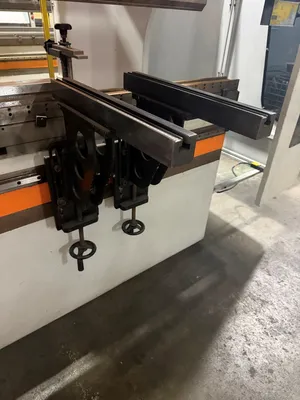

2 adjustable front support arms with scales
Manual R-axis
Manual X-prime axis
Die risor

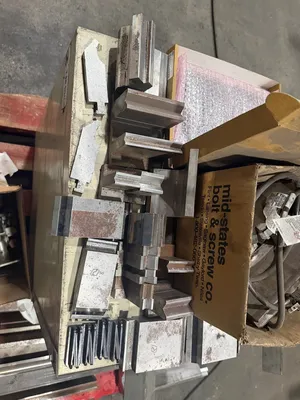

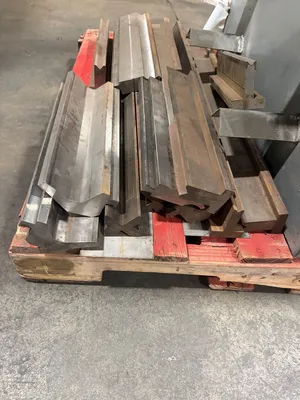

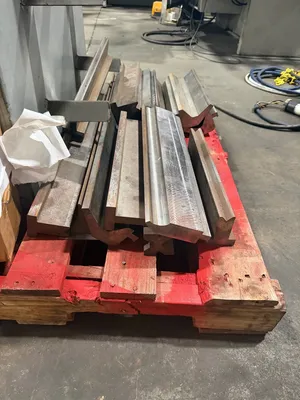

Large assortment of sectionalized tooling including a 4-way die
2017 Ermak Power Bend Pro 83" x 66-ton CNC Press Brake. Features 3-axis CNC, Cybelec CybTouch 12, Heidenhein scales, and Siemens electronics. Includes synchronized hydraulics, safety systems, and tooling.
Imperial
| Tonnage | 66 T |
| Type | HYD |
| Overall Length | 83" |
| Between Housings | 66.9" |
| Stroke | 10.8" |
| # Axis | 3 |
| Control | CNC (Cybelec) |
| Dimensions | 128" x 77" x 109" |
| Weight | 12,458 Lbs. |
Brand: Ermak
Model: Power Bend Pro 2100 x 66
Specifications:
Bending length: 83"
Tonnage: 66 Tons
Distance between housings: 66.9"
Free down speed: 6.30 IPS
Bending speed: .55 IPS
Return speed: 6.5 IPS
Stroke: 10.8"
Throat depth: 16.1"
Working height: 35.4"
Ram clamps: sectionalized quick clamps
Backgauge stroke: 31.5"
Number of backgauge fingers: 4
Main motor: 15 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 128" x 77" x 109"
Weight: 12,458 Lbs.
Cybelec CybTouch 12 touchscreen CNC control
3-axis CNC (Y1, Y2, X)
Heidenhein linear scales
Siemens electronics
Synchronized hydraulic system
Fiessler laser safety system
Portable foot pedal
Rear and side safety guards
2 adjustable front support arms with scales
Manual R-axis
Manual X-prime axis
Die risor
Large assortment of sectionalized tooling including a 4-way die
