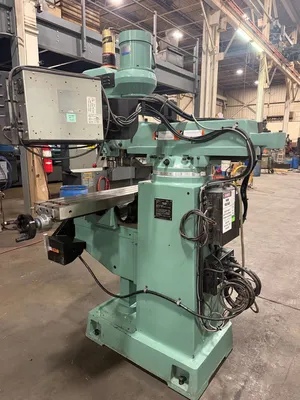

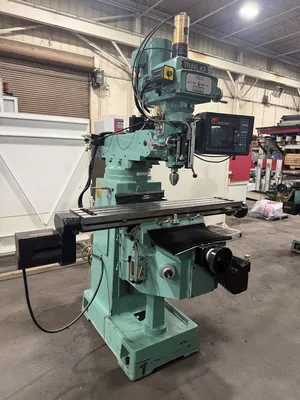

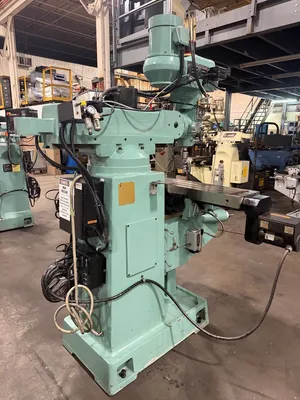

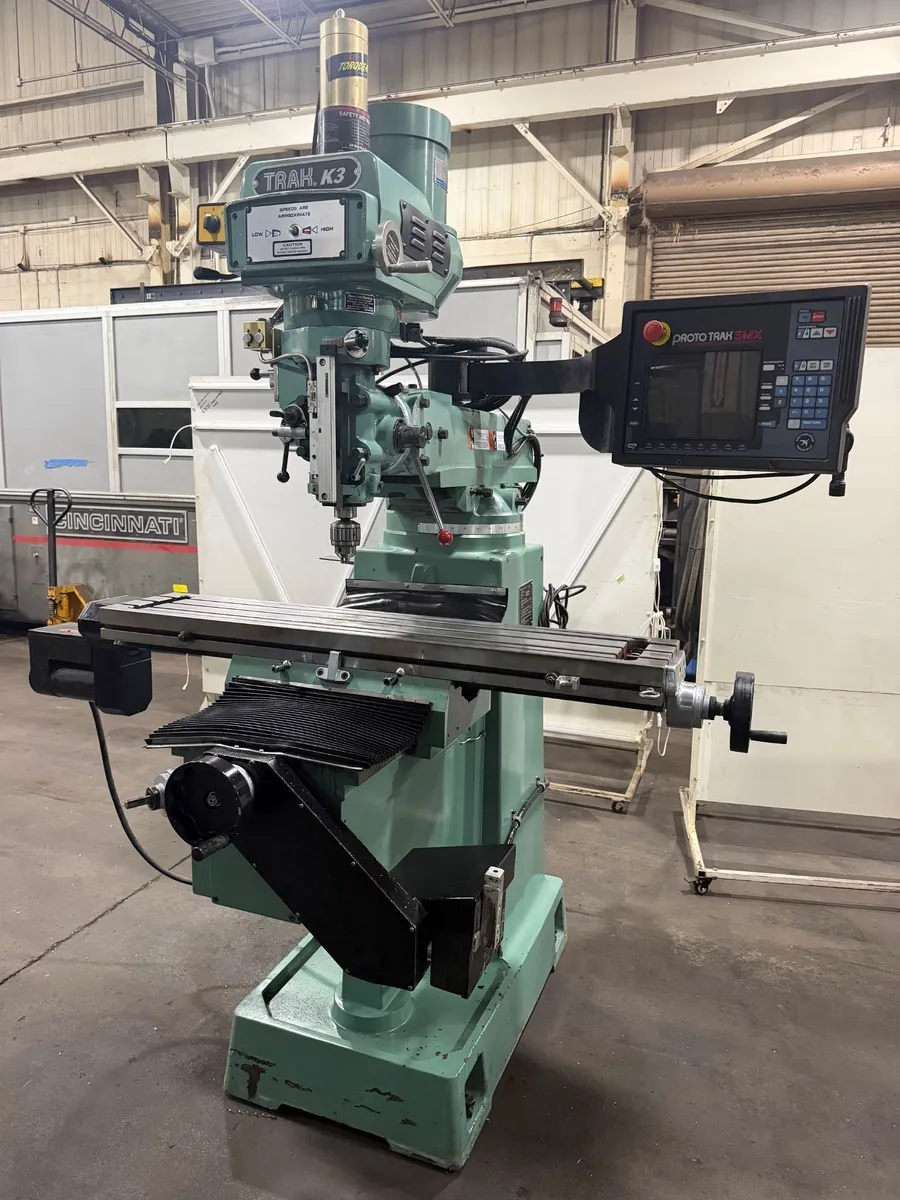

USED 2016 TRAK 10" X 50" 2-AXIS CNC KNEE MILL MODEL K3SX
Have one to sell?
ConditionUsed
1 available
The 2016 TRAK K3SX by Southwestern Industries is a reliable 2-axis CNC knee mill with a 10"x50" table, 3HP, and RPM of 60-4200. Equipped with ProtoTRAK SMX CNC, manual handwheels, LED status lights, and more for efficient operation.
Brand: Trak
Model: K3SX
Specifications:
Table Size: 50” X 10”

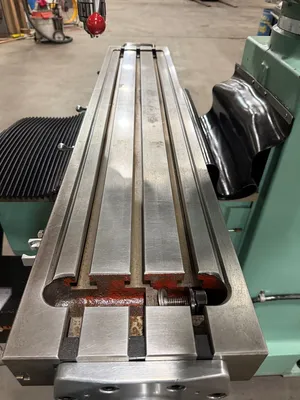

T-Slots: 5/8” x 3 x 2 ½”
Table Travel: 32”
Saddle Travel: 16”
Knee Travel: 16”
Ram Travel: 15”
Maximum Quill Travel: 5”
Quill Diameter: 3-3/8”

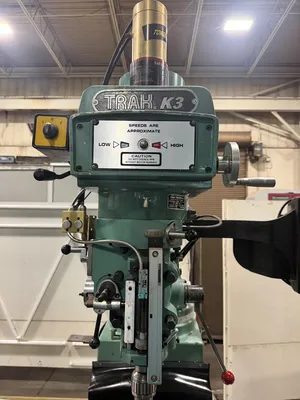

Spindle Taper: R8
Spindle Speed: 60-4200 RPM
Head Tilt: 45 deg. forward, 45 deg. back, 90 deg. left, 90 deg. right
Spindle Motor Power: 3HP

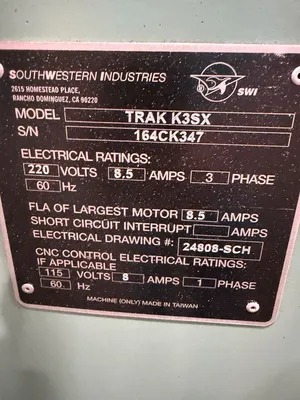

Power Requirement Control: 110V 1Phase 8A
Power requirements machine: 220 volt, 3Phase 8.5 amps
Maximum Weight on Table: 850 lbs.
Machine Weight: 2816 lbs.
Machine dims: 71” x 59” x 84”
Maximum rapid feed: 100 IPM
Way surface type: Dovetail X, Z Square Y

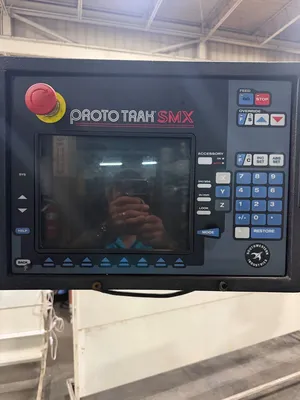

ProtoTRAK SMX CNC includes, Two-axis CNC, three-axis DRO, Real handwheels for manual operation, 10.4” color active-matrix screen, Industrial-grade Pentium® processor, 1 GB Ram, 4 USB connectors, LED status lights built into display, RJ45 Port and Ethernet card (O), Override of program spindle speed (O), USB Thumb drive flash memory 512 MB or more (O), Uncluttered front panel with few hard keys, Quill glass scale.
Precision 7207 CP4 spindle bearings.
Chrome hardened and ground quill.
Meehanite castings.
Slide ways are Turcite coated.
Wide way surfaces are hardened and ground.
Power Drawbar.

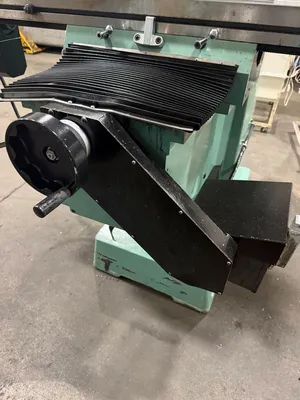

Knee Power Feed.
One shot lubrication system.
Jacobs chuck.
