USED DONALDSON TORIT MODEL DFT2-8 1,020–6,300 CFM DOWNFLO II DUST COLLECTOR
Have one to sell?
ConditionUsed
1 available

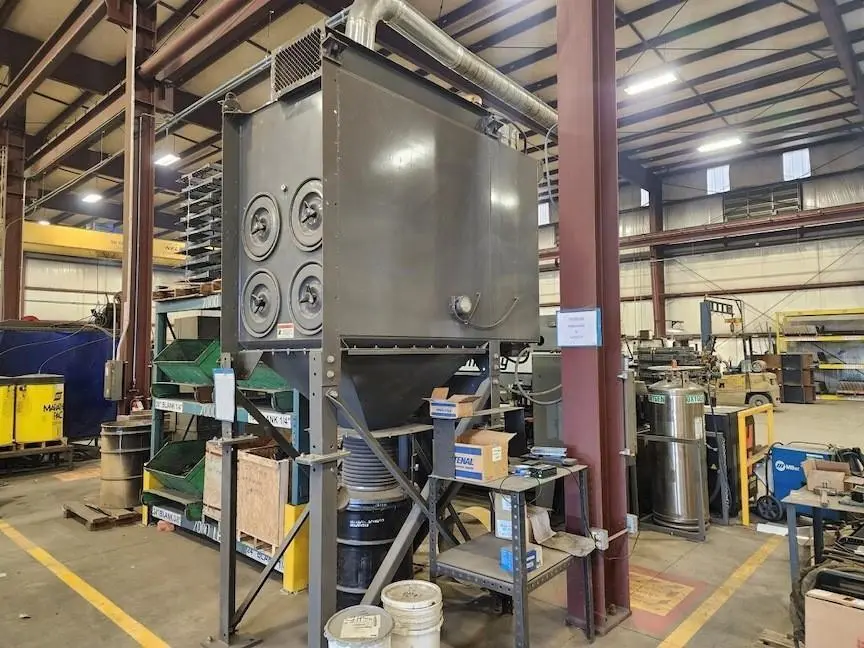

2012 Donaldson Torit Model DFT2-8 Downflo II dust collector offers a 1,020–6,300 CFM flow rate. Features automatic pulse-jet cleaning, integrated fan, and hopper discharge. Specifications include 5 HP motor, 8 cartridges, and TEFC enclosure.
Brand: Donalson Torit
Model: DFT2-8 Downflo II
Specifications:
Type: Downflow Cartridge Dust Collector
Number of Cartridges: 8
Filter Area: 2,032 sq. ft. with standard Ultra-Web filters
Nominal Airflow Range: 1,020–6,300 CFM
Pulse Valves: 4
Compressed Air: 90–100 PSI
Collector Housing Rating: ±20 in. w.g.

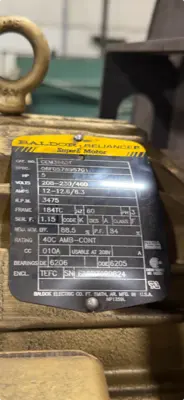

Blower Motor: 5 HP Baldor Reliance Super-E
Motor Speed: 3,475 RPM
Electrical: 230/460V, 3-Phase
Motor Amps: 12.6 / 6.3 A
Motor Enclosure: TEFC
Approx. Collector Dimensions: 40" W × 94.5" D × 132.7" H
Approx. Shipping Weight: 1,700 lbs.
Automatic compressed-air pulse-jet filter cleaning

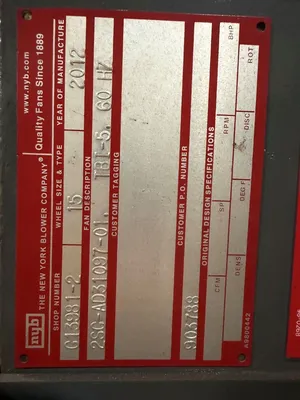

New York Blower integrated fan
Hopper bottom dust discharge
2012 Donaldson Torit Model DFT2-8 Downflo II dust collector offers a 1,020–6,300 CFM flow rate. Features automatic pulse-jet cleaning, integrated fan, and hopper discharge. Specifications include 5 HP motor, 8 cartridges, and TEFC enclosure.
Imperial
| Flow Rate | 6,300 ft³/min. |
| Hood Type | Filtered Recirculating (Ductless) |
| Dimensions | 40" W × 94.5" D × 132.7" H |
| Weight | 1,700 lbs. |
Brand: Donalson Torit
Model: DFT2-8 Downflo II
Specifications:
Type: Downflow Cartridge Dust Collector
Number of Cartridges: 8
Filter Area: 2,032 sq. ft. with standard Ultra-Web filters
Nominal Airflow Range: 1,020–6,300 CFM
Pulse Valves: 4
Compressed Air: 90–100 PSI
Collector Housing Rating: ±20 in. w.g.
Blower Motor: 5 HP Baldor Reliance Super-E
Motor Speed: 3,475 RPM
Electrical: 230/460V, 3-Phase
Motor Amps: 12.6 / 6.3 A
Motor Enclosure: TEFC
Approx. Collector Dimensions: 40" W × 94.5" D × 132.7" H
Approx. Shipping Weight: 1,700 lbs.
Automatic compressed-air pulse-jet filter cleaning
New York Blower integrated fan
Hopper bottom dust discharge
